5.5.2.2.1 Leak Check Components

Figure 5-12
This section will discuss the different leak check functions.

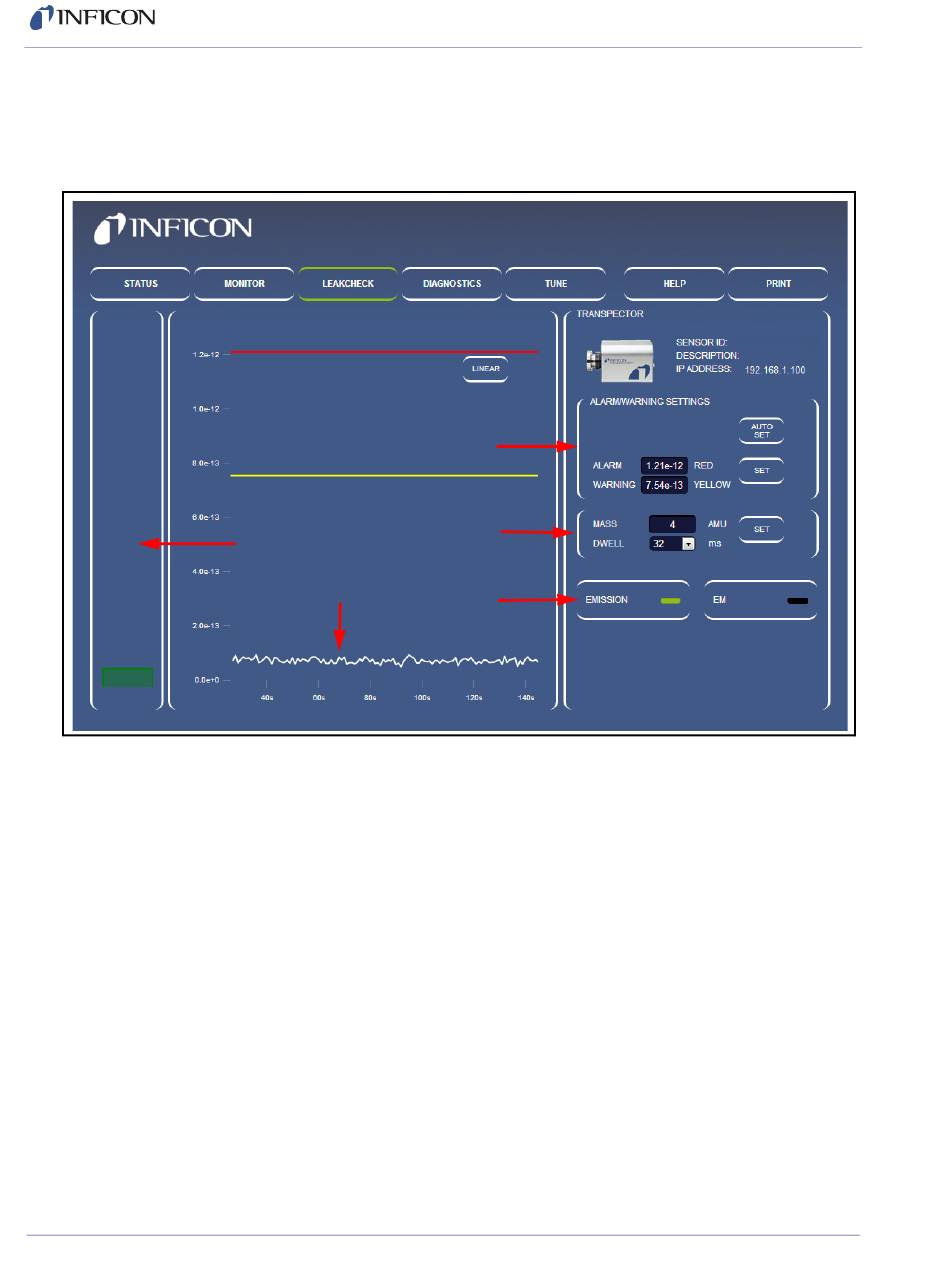

Figure 5-12 LEAKCHECK window
1
ALARM/WARNING SETTINGS—The ALARM/WARNING SETTINGS group
is used to manually or automatically change the alarm levels for leak checking.
Clicking AUTO SET causes Transpector Web UI to automatically generate
alarm levels based on recent data acquired. To manually set alarm levels,
highlight the alarm level of interest, type the desired alarm level, then click SET.
2
Transpector MPH Scan Parameters—Transpector MPH can use any mass
for leak detection. To change the mass, highlight the mass shown in the MASS
box, type the new desired mass, then click SET.
The DWELL time that is used for the mass that is being analyzed can be
changed. DWELL behaves the same way as in data acquisition, see
5.5.2.1.1, Editable Parameters, on page
change until SET is clicked.
5 - 15
points out the different components of the LEAKCHECK window.
3
5
Transpector MPH Operating Manual
1
2
4
5-11. The DWELL time does not
