1.9 Physical Requirements

The following sections show the physical dimensions, weight, mounting
requirements, ventilation requirements, and the perimeter required for
maintenance access for Transpector XPR 3+.

1.9.1 Physical Dimensions

Figure 1-2
[millimeters].

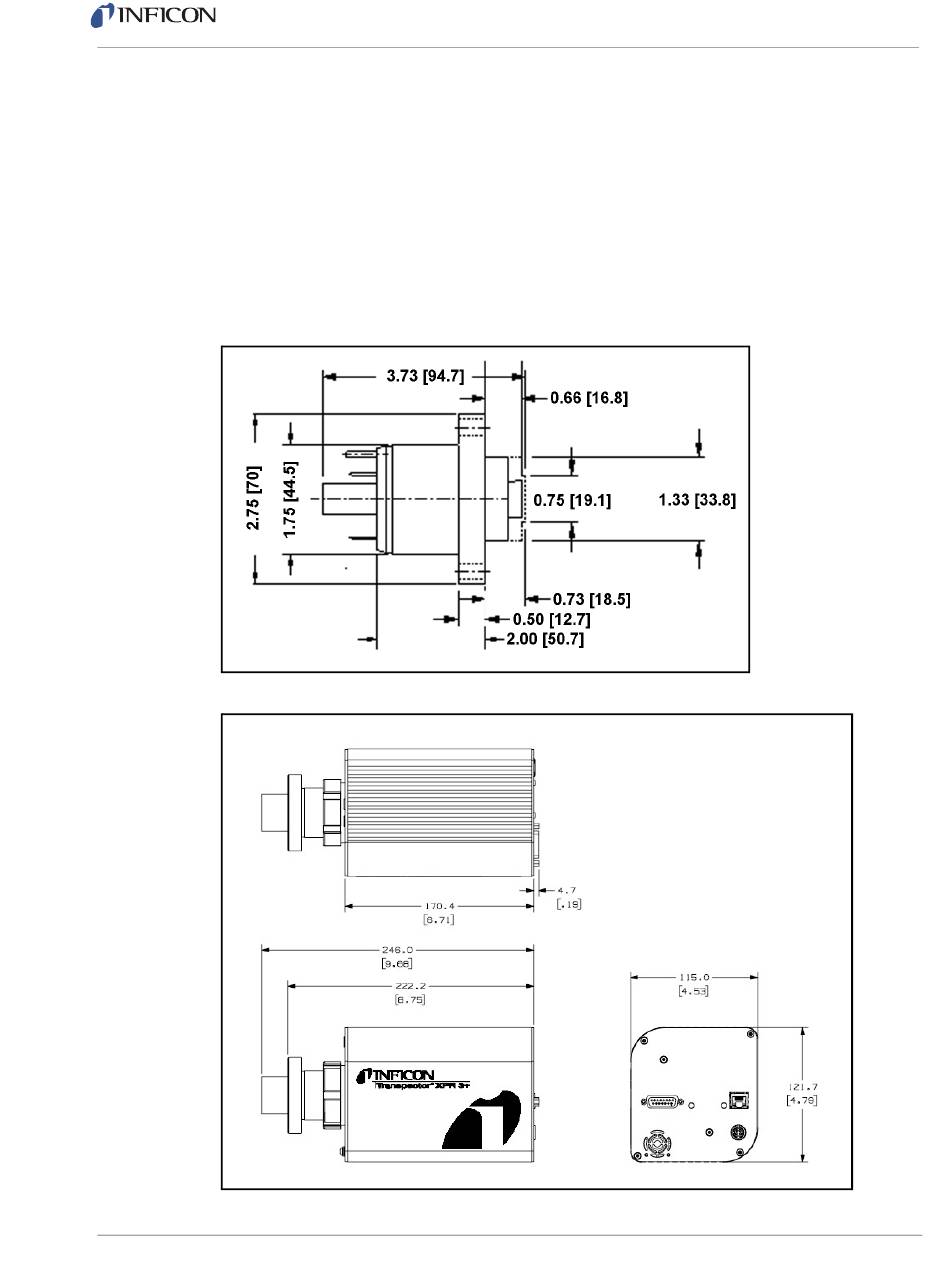

Figure 1-1 Sensor dimensions
Figure 1-2 Physical dimensions of Transpector XPR 3+
shows the overall physical dimensions of Transpector XPR 3+ in inches
