1.17.1 Installing the Pirani Gauge on to the Extension Flange

1
Insert the VCR gasket into the 4-VCR female ports on both the Pirani gauge
and the flange.
2
Connect one end of the 4-VCR male-to-male adapter to the 4-VCR female port
of the extension flange following standard VCR protocols.
3
Connect the 4-VCR Female Pirani gauge connection to the other side of the
4-VCR male-to-male right-angle adapter.
4
Ensure that the Pirani is aligned parallel with the extension tube with the
connection end pointed towards the electronics module.
5
The resulting assembly will look like

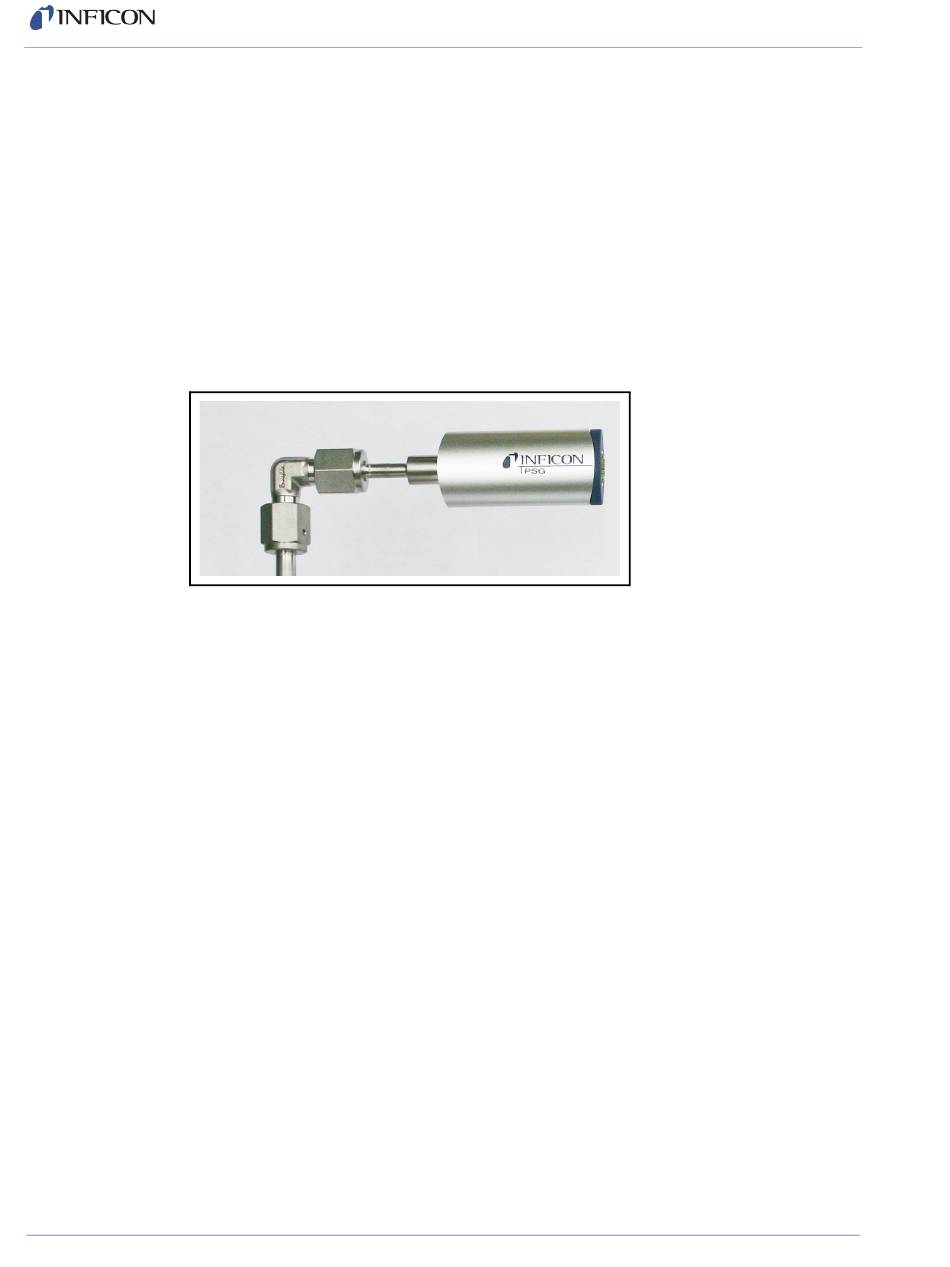

Figure 1-8 Connecting the Pirani to the flange

1.17.2 Installing the Extension Flange and Sensor onto the Vacuum System

Installation instructions for the extension flange, sensor and electronics module are
identical to the instructions for a standard Transpector MPH. Refer to
Installation on page
1 - 17
Figure
1-9.
