1.18.1 Installing the Calibration Reference on to the Extension Flange

1
Install the VCR gasket into the female port of the extension flange.
2
Connect the 4-VCR male connection of the calibration reference to the 4-VCR
female connection of the extension flange. See
3
Tighten the connection following standard VCR gasket protocols: finger-tighten
the connection, then tighten it 1/8 to 1/4 turn by wrenches.

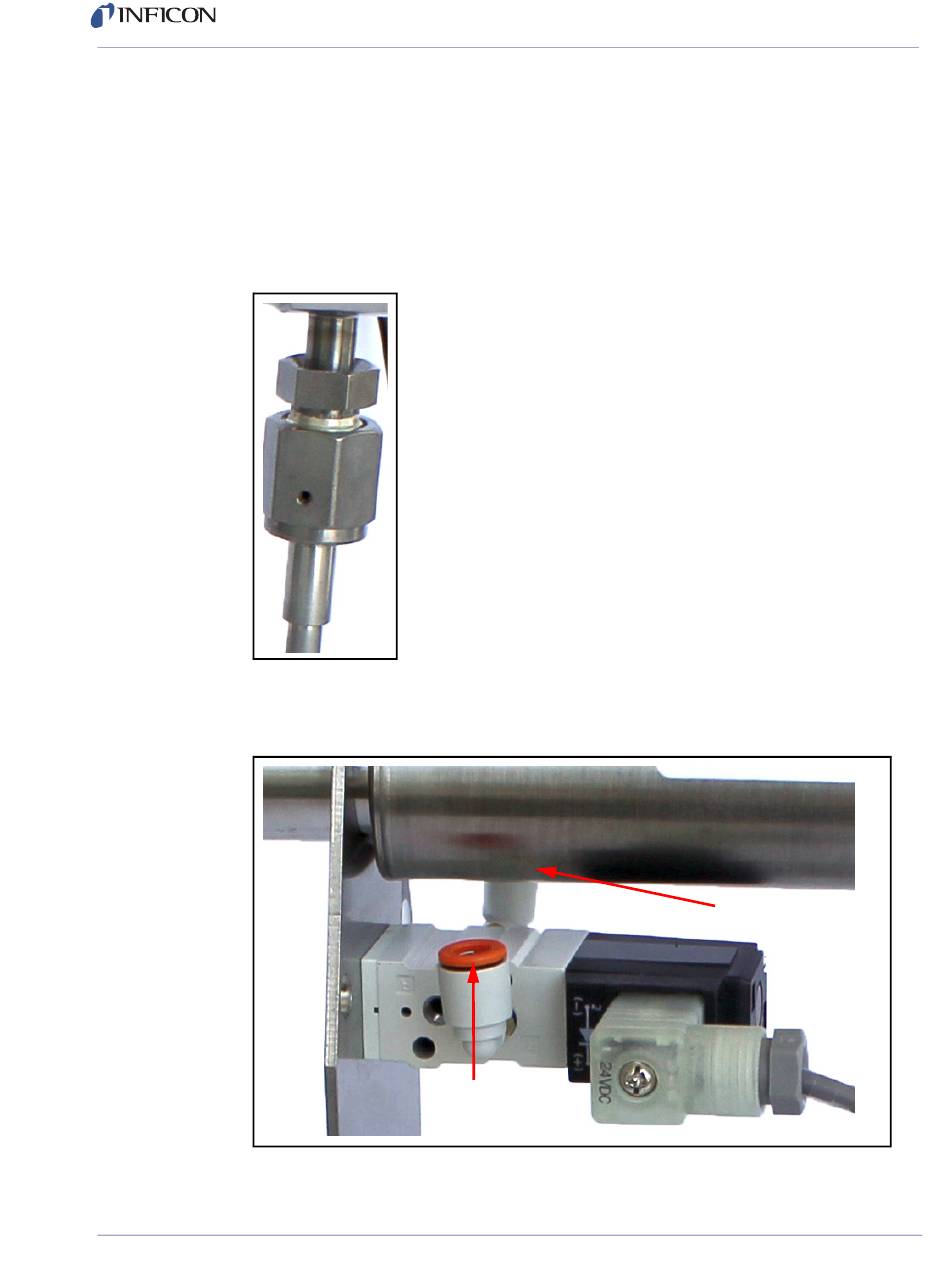

Figure 1-11 HPR VCR connection
4
Screw the 1/4 in. and 1/8 in. gas line connections into the solenoid.
See
Figure 1-12 Gas connections
Figure 1-12.
1/4 in. Connection
Transpector MPH Operating Manual
Figure 1-11.
1/8 in. Connection
1 - 20
