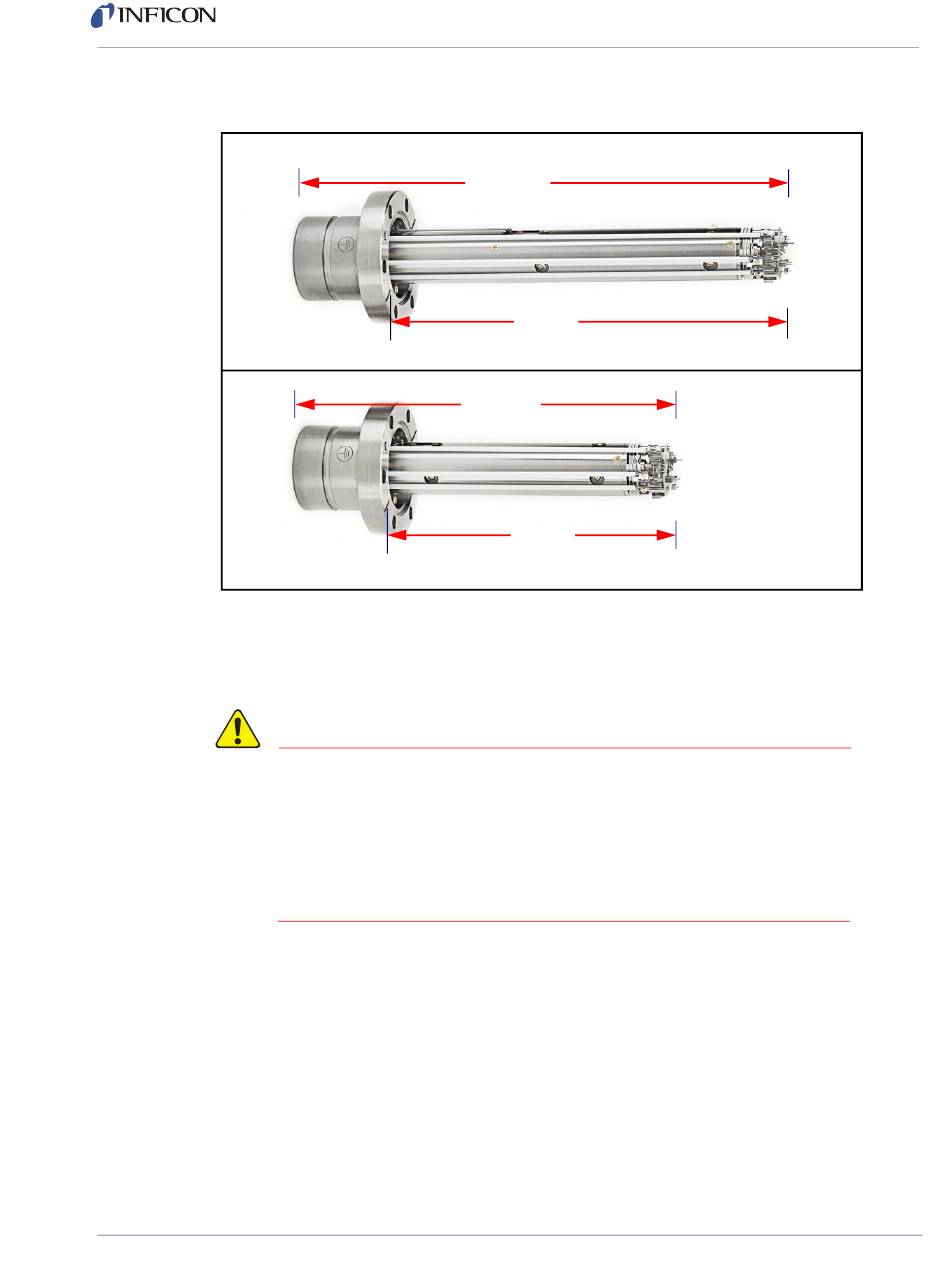

Dimensions of the quadrupole sensors are shown in
Figure 1-4 Sensor dimensions
The sensor is shipped inside an extension tube with 38.1 mm (1.5 in.) ID. This tube
is provided to attach the sensor to your vacuum chamber. The part number for the
203.2 mm (8 in.) long extension tube kit is 961-206-G2.
CAUTION
The silver-plated bolts used for mounting the sensor to
the vacuum system must be oriented such that the bolt
heads are on the same side of the sensor as the
electronics box. Otherwise, there may be interference
between the black INFICON Transpector mounting nut
and sensor mounting hardware.
249.1 mm
(9.81 in.)
193 mm
(7.83 in.)
MPH100M, MPH200M, MPH300M
198.9 mm
(7.61 in.)
143 mm
(5.63 in.)
MPH100F, MPH200F, MPH300F
