3.3. MinPad Configuration
The TRIUMPH-1's simple user interface (MinPad) consists of two keys (Power and FN) and up
to six LEDs that control and display the receiver's operation (Figure 3-23).
The MinPad performs numerous functions:
• Turn the receiver on/off.
• Turn data recording on or off (FN key).
• Show the status of satellites being tracked (SAT LED).
• Show data recording status (REC LED).
• Show each time data records to internal memory (REC LED).
• Show the status of post-processing mode (static or dynamic) when performing a Post-
Processing Kinematic measuring with the help of FN key (REC LED).
• Show the status of the battery (BAT LED).
• Show the power source for TRIUMPH-1 (BAT LED).
• Show the modem's status (MOD LED).
• Show the Bluetooth® module status (BT LED).
• Show the position solution status (POS LED).
You use TriVU to configure MinPad settings. Refer to the TriVU Software Manual for all
possible MinPad configurations.
66

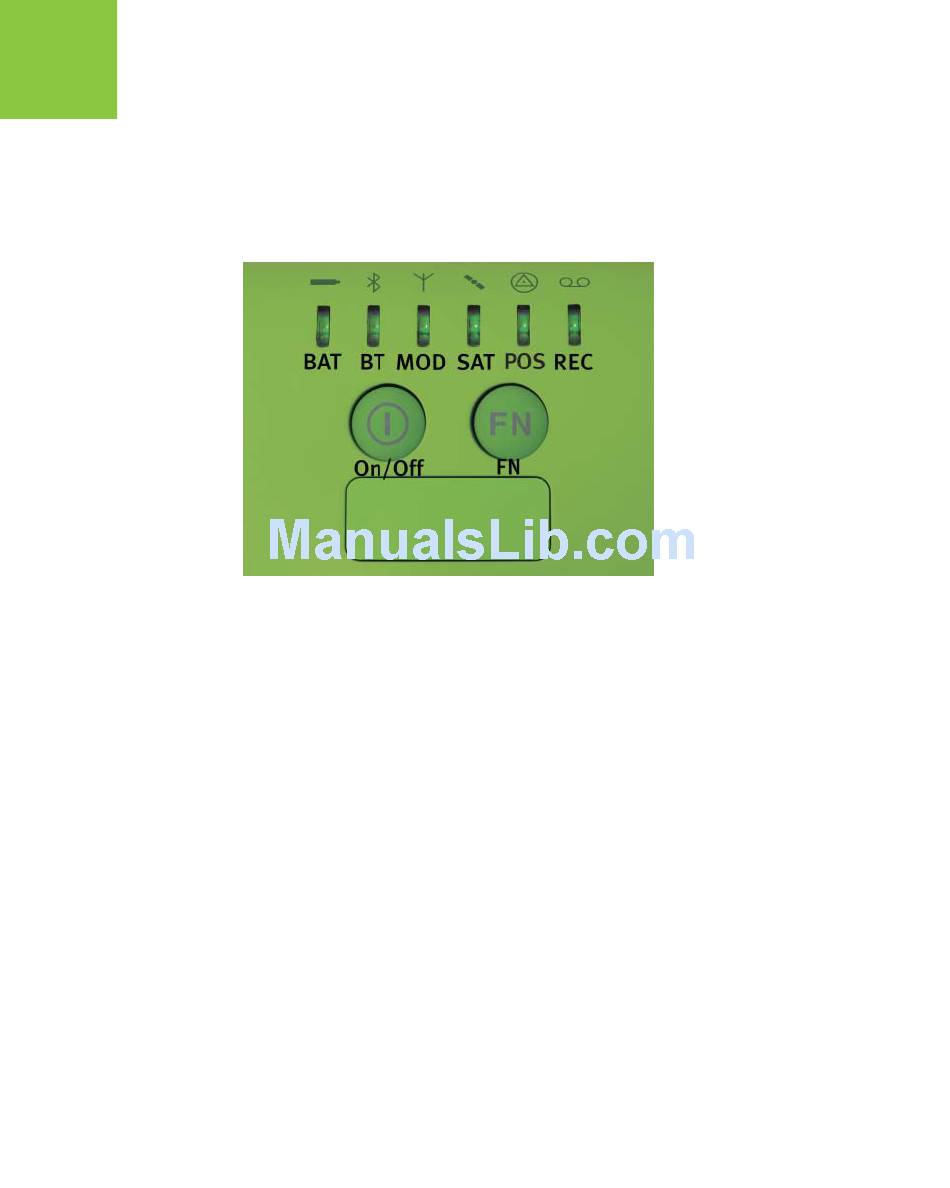

Figure 3-23. TRIUMPH-1 MinPad
