MinPad Configuration

The JNSGyro-4T's simple user interface (MinPad) consists of three keys
(Power, FN, and Reset) and up to eight LEDs (four STAT, and four REC) four
pairs for each board that control and display the unit's operation (Figure 2-10).
The MinPad performs numerous functions:
• Turn the JNSGyro-4T on/off.
• Turn data recording on or off (FN key).
• Change the JNSGyro-4T's information mode.
• Show the number of GPS (green) and GLONASS (orange) satellites being
tracked (STAT LED) by four boards.
• Show data recording status (REC LED) by four boards.
• Show each time data records to internal memory (REC LED) by four boards.
• Show the status of post-processing mode (static or dynamic) when
performing a Post-Processing Kinematic measuring with the help of FN key
(REC LED).
Use PCView to configure MinPad settings. Refer to the PCView Software
Manual for all possible MinPad configurations.
1.
2.
www.javad.com
Connect selected board of your JNSGyro-4T and computer. See
"Connecting the JNSGyro-4T and a Computer" on page 2-3 for this
procedure.
Start PCView.

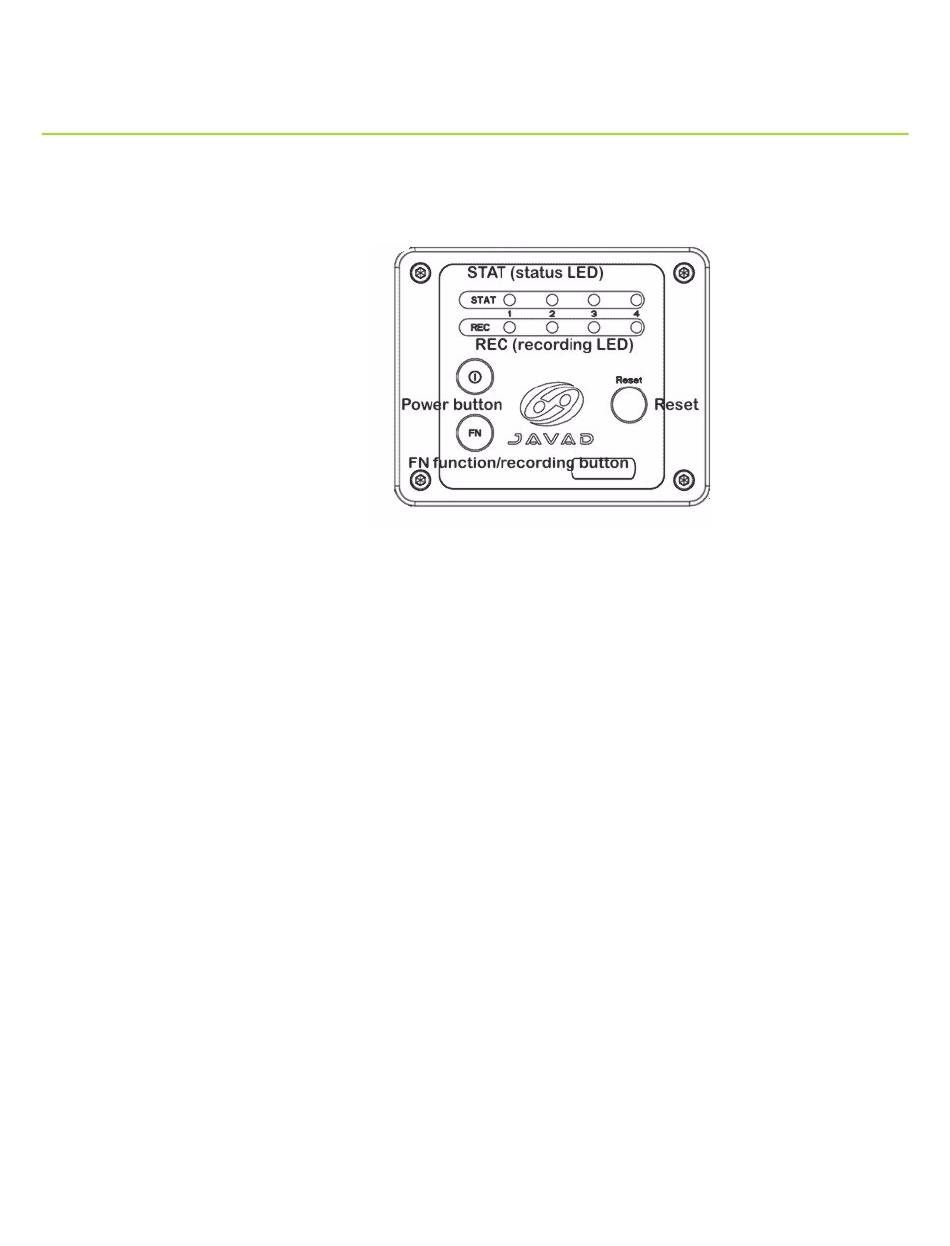

Figure 2-10. JNSGyro-4T MinPad
