MinPad Configuration

The LGG100-GG's simple user interface (MinPad) consists of two keys
(Power, FN) and two LEDs (STAT and REC) that control and display the
receiver's operation (Figure 2-8)
The MinPad performs numerous functions:
• Turn the LGG100-GG on/off.
• Turn data recording on or off (FN key).
• Change the LGG100-GG's information mode.
• Show the number of GPS (green) and GLONASS (orange) satellites being
• Show data recording status (REC LED).
• Show each time data records to internal memory (REC LED).
• Show the status of post-processing mode (static or dynamic) when perform-
Use PCView to configure MinPad settings. Refer to the PCView Software Man-
ual for all possible MinPad configurations.
1.
2.
www.javad.com
PWR (power button)
tracked (STAT LED).
ing a Post-Processing Kinematic measuring with the help of FN key (REC
LED).
Connect your LGG100-GG and computer. See "Connecting the LGG100-
GG and a Computer" on page 27 for this procedure.
Start PCView.
.
STAT (status LED)
REC (recording LED)
FN (function/recording

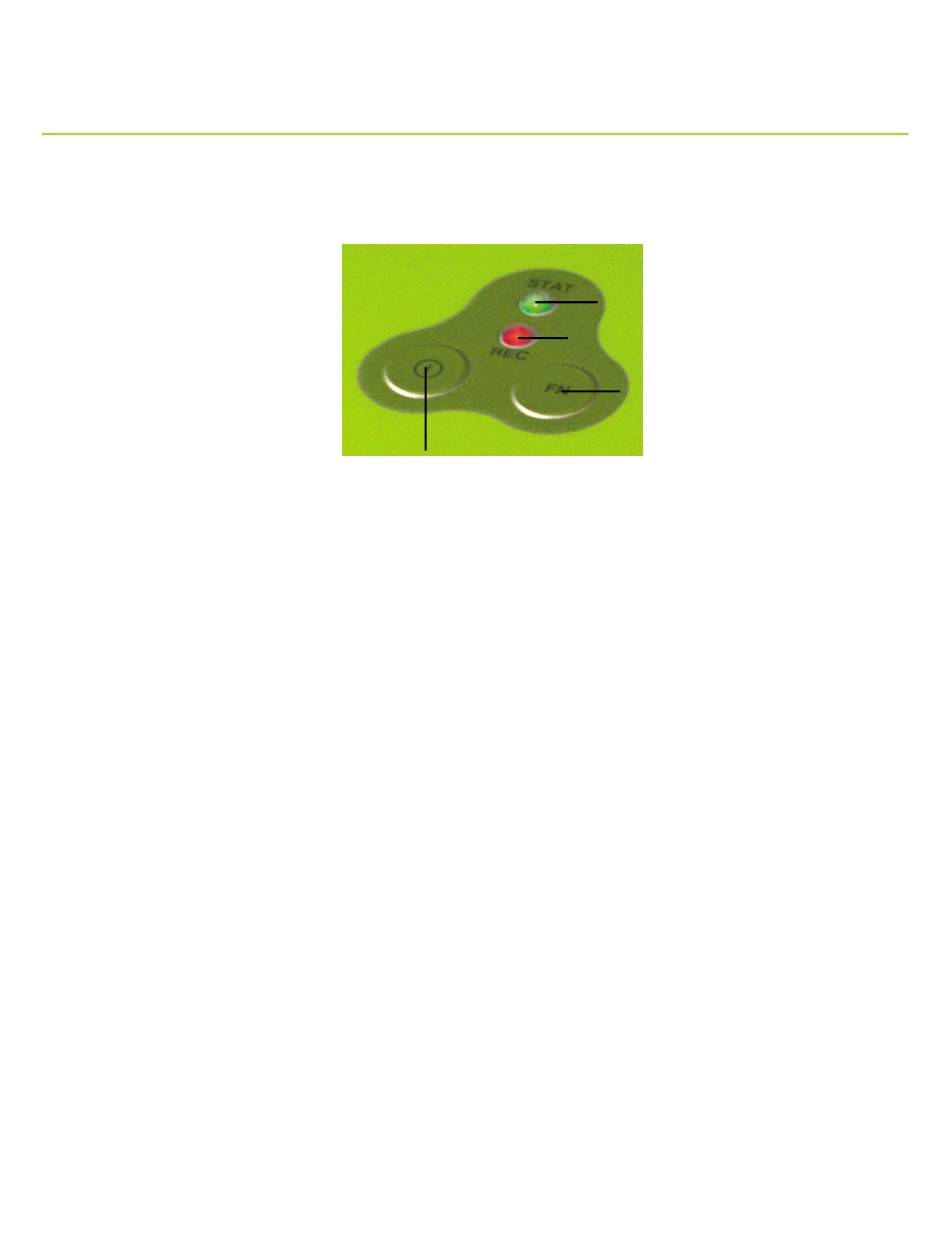

Figure 2-8. LGG100-GG's MinPad
