Step 2. Mounting Media Cards To The Nic - Simplex 4100ES Installation Manual

7.2.7 Duplex Fiber Media Configuration (0566-1197, 0566-1198, 0566-1199, 0566-1200 only)
SW1 displays the diagnostics on the diagnostic LEDs. Press to display the type and thresholds reached.
• Hold for three seconds to toggle between the Normal and Advanced diagnostics mode.
• Hold for six seconds to clear the counters.
Note: If SW2-4 is set to advanced diagnostics, and if you press and hold SW1 for 3 seconds, the card does not toggle between the
diagnostics modes. The mode is set to advanced.
SW2 configures the diagnostics display and the offline test modes. Refer to 579-1233 for more information on 4120 Duplex Fiber Media
Card Diagnostics. Switch SW2 is a bank of four DIP switches. From left to right (see ), these switches are SW2-1 to SW2-4.
Position Description
1 Offline test mode
2 Fiber data loopback
3 Select normal/low thresholds to monitor diagnostic LEDs
4 Select normal / advanced diagnostics
Note: If either test mode (SW2-1 and/or SW2-2) is enabled, normal 4120 network traffic is disrupted.
7.3

Step 2. Mounting Media Cards to the NIC

The 4100-6078 Network Interface Card (NIC) uses media cards to connect to other NICs. This section describes how the media cards are
mounted onto NICs.
7.3.1 Media Card Mounting
NICs connect to each other via the three types of media cards. The types of media cards in the right and left ports are determined by the
type of wiring that is being used across cards.
Connect P1 on the wired media card, or J1 on the modem or fiber media cards, to P5 (the left port) on the NIC.
To connect a second media card to the same NIC, connect it as described above, but use P6 (the right port) on the NIC. Note that any two
types of media cards can be connected to the same NIC.
page 81

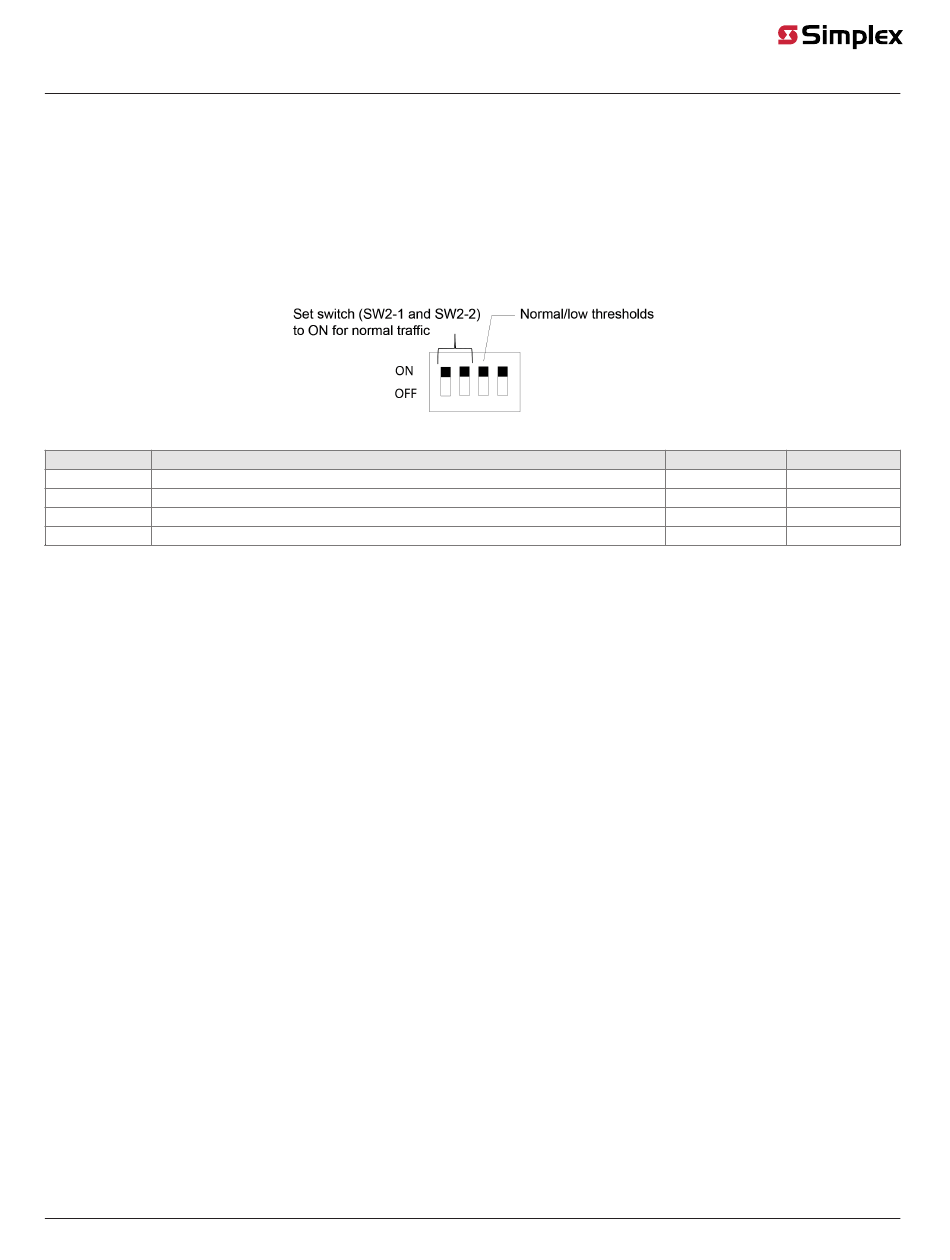

Figure 46: DIP switch SW2
4100ES Fire Alarm System Installation Guide
ON OFF
Disable Enable
Disable Enable
Normal Low
Normal Advanced
