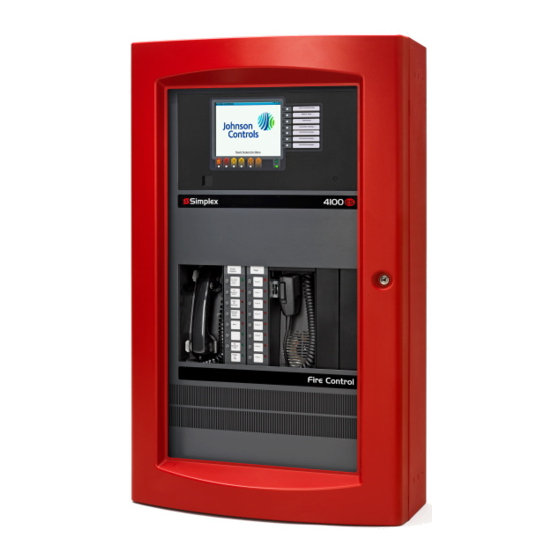

Simplex 4100ES Operating Instructions

UL, ULC, CSFM Listed; FM Approved;
MEA (NYC) Acceptance*
Features
General description:
Dual RS-232 port module with port B dedicated for
master clock/master time interface
RS-232 port A is available for connection to printers,
terminals, or other compatible peripherals
Allows the 4100ES Fire Control Panel system time to
be synchronized with the building master time or other
desired compatible time reference
Compatible with 4100U fire alarm control panels
Includes a 4.5 ft (1.4 m) connection cable with DB-25,
RS-232 connector
Master clock interface compatibility:
Connects to master time control centers such as the
model 6400 and 6351 that provide Simplex
(binary coded decimal) time signals to the model
6400-9568 BCD Code Converter**
For extended timekeeping accuracy, the model 6400
or 6351 Time Control Center can be connected to GPS
Time Reference Interface Module GPS/6400**
Compatible with other RS-232 interfaces that accept
and respond to QT (query time) and QD (query date)
requests
Mounting:
Motherboard/daughter card format requires a single
slot and mounts in an expansion bay
Description
Simplex fire alarm control panels maintain time and date
for reference in the history logs. For applications where a
master time control exists in the facility, the 4100-9816
Master Clock Interface Module provides an interface for
coordinating the fire alarm control panel time to that of
the master reference.
When time accuracy requirements include synchronization
to GPS satellite time, the GPS/6400 Interface Module with
the GPS-427A Antenna/Receiver can be connected to the
model 6400 or 6351 Time Control Center.
For additional information, refer to Installation and
Operating Instructions 574-913.
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing
7165-0026:251 for allowable values and/or conditions concerning material presented in this
document. It is subject to re-examination, revision, and possible cancellation. Additional
listings may be applicable; contact your local Simplex product supplier for the latest status.
Listings and approvals under Simplex Time Recorder Co. are the property of Tyco Safety
Products Westminster.
** For additional BCD Code Converter information refer to data sheet S6400-0002.
For additional 6400 information, refer to data sheet S6400-0001.
For additional 6351 information, refer to data sheet S6351-0001.
For additional GPS/6400 information refer to data sheet GPS6400BRO1.
®
BCD
10:09:30
4100ES Fire Alarm Control Panel

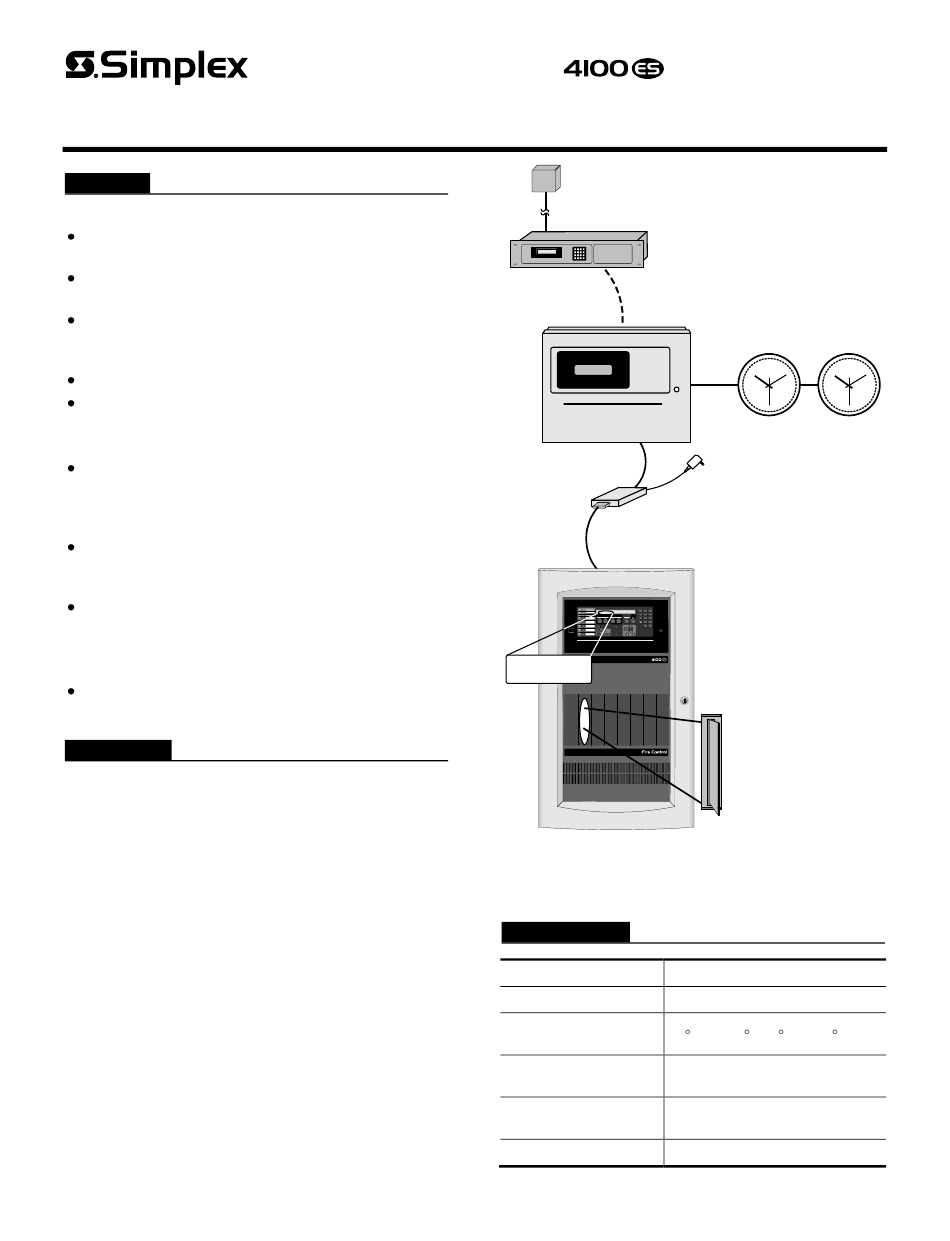

Typical 4100ES Master Clock Interface Block Diagram
Specifications
Standby Current
Alarm Current
Operating Temperature
Range
Humidity Range
Mounting
Connections Provided
Fire Control Panels
Model 4100-9816 Dual Port RS-232
Module with Master Clock Interface
GPS/6400 Interface
System Option
6400/6351 Series Time Control
Center with system clocks
time
10:09:
30
control
center
6400-9568
Code Converter
A B C D E F G H I
Z ONE S IG AUX
1 2 3
10:09:30
J K L M N O P Q R
F B I O IDNet
ALARMS SYSTEM WARNINGS AC P ower 4 5 6
Fire Alarm Priority 2 Alarm Supervisory Trouble Alarm Silenced S T U V W X Y Z /
P A L
7 8 9
Fire Alarm Priority 2 Supv Trouble Alarm S ystem 'SP' ( ) , 0 :
Ack Ack Ack Ack Silence Reset NE T ADDR
0 DEL
Enter C/Exit
Event More
Time Info Previous
Menu
On Next
Enable Arm
Disable Off Auto Lamp
Disarm Test
Emergency Operating Instructions
Alarm or Warning Condition How to Silence Building Signals
System i n di c ator fl a shi n g . Tone On. Press Alarm Silence .
How to Acknowledge / View Eve nts How to Reset Syste m
Press ACK l o cated under fl a shi n g indicator . Press System Reset.
Repeat operati o n unti l al l events are acknowl e dged . Press Ack to si l ence tone devi c e .
Local tone wi l l si l ence.
4100-9816 Master
Clock Interface Module
132 mA @ 24 VDC
132 mA @ 24 VDC
32 F to 120 F (0 C to 49 C)
Up to 93% RH, non-condensing
@ 90° F (32° C)
Single slot motherboard/daughter
card
DB-25 plugs and terminal blocks
S4100-0033-4
