Simplex 4100ES Manual

UL, ULC, CSFM Listed; FM Approved;
MEA (NYC) Acceptance*

Features

Emergency voice/alarm communications provide:
 Alarm/evacuation signal generation with multiple
built-in tones
 Standard or customized digital message storage and
message generation
 Automatic or manual operation
 Mass Notification operation
Multiple channels are available:
 Analog audio systems provide dual channel operation
 Digital audio systems provide up to eight channels over
a single wire pair
Communications features:
 Up to five supervised remote microphone inputs
 Spoken voice coding from the digital message player
 Multiple digitally recorded human voice messages
 Spoken WALKTEST system testing
 Separate evacuation, drill, and optional "All Clear"
voice messages and tones
 Ready-to-talk microphone indicator on front panel audio
control module
 Local panel speaker for tone/message broadcast
verification
 MINIPLEX Voice Transponders are available for
distributed audio
Amplifiers are available with analog or digital input:
 Flex-35 (35 W) and Flex-50 (50 W) amplifiers provide a
dual channel design with configurable operation modes
 100 W primary and backup, single channel amplifiers
include a built-in power supply
 Amplifiers are available for 25 VRMS or 70.7 VRMS
output with on-board, power-limited NACs (only one
voltage choice per system)
 Built-in Temporal Pattern horn tone provides default
backup signal operation
 Optional modules provide power-limited NAC expansion,
convert Class B NACs to Class A operation, and provide
Constant Supervision Operation for Non-Alarm Audio
(NAA) applications (NAA requires additional hardware,
and software revision 11.08 or higher)
Firefighter telephone systems:
 Master telephone can simultaneously talk with up to 6
remote telephones and can be connected as an audio
input for broadcast messages
 Ring signal on remote firefighter telephone indicates that
a call request is initiated and a hold signal indicates that
a connected line has been deselected
 Telephone circuits are supervised for open and short
circuits, too many telephones connected, and the master
telephone is supervised for cord integrity
 Degraded mode allows remote telephones to remain
connected to each other in the event of a communications
loss
Addressable Fire Detection and Control
Emergency Voice/Alarm Communications Equipment
Emergency Operating Instructions

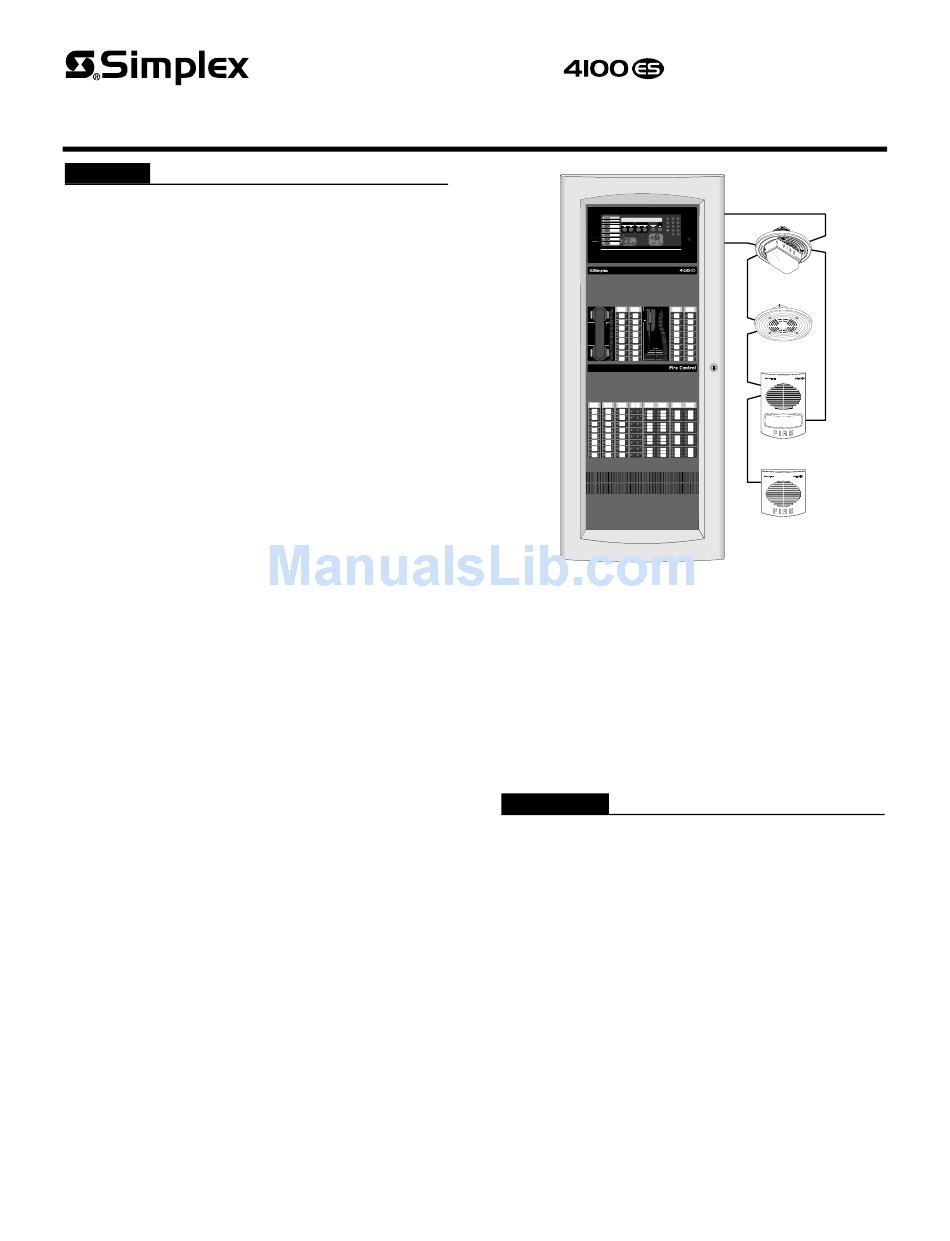

4100ES Fire Alarm Control Panel with
Voice and Firefighter Telephone Options
Listed to:
 UL Std. 864, Fire Detection and Control (UOJZ), and
Smoke Control Service (UUKL)
 UL Std. 2017, Process Management Equipment (QVAX)
 UL Std. 1076, Proprietary Alarm Units-Burglar (APOU)
 UL Std. 1730, Smoke Detector Monitor (UULH)
 ULC Std. S527-99

Description

4100ES Audio Systems provide voice communication,
alarm tones, and/or digitally prerecorded voice messages to
alert occupants of fire or other emergency situations.
Evacuation signaling may be automatically generated via
alarm initiated event programs or by firefighting personnel
using the operator controls.
4100U Series Products Note. The audio system
modules and features listed in this data sheet are both
compatible with, and listed for use with 4100U series fire
alarm control panels. Contact your local Simplex
supplier for details.
* See page 5 for product that is listed as UL or ULC and additional product listing details.
This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing
7165-0026:251 for allowable values and/or conditions concerning material presented in this
document. It is subject to re-examination, revision, and possible cancellation. Accepted for
use – City of New York Department of Buildings – MEA35-93E. Additional listings may be
applicable; contact your local Simplex product supplier for the latest status. Listings and
approvals under Simplex Time Recorder Co. are the property of Tyco Fire Protection
Products.
Fire Control Panels
A B C D E F G H I
ZONE SIG AUX
1 2 3
J K L M N O P Q R
FB IO IDNet
ALARMS SYSTEM WARNINGS AC Power 4 5 6
Fire Alarm Priority 2 Alarm Supervisory Trouble Alarm Silenced S T U V W X Y Z /
P A L
7 8 9
Fire Alarm Priority 2 Supv Trouble Alarm System 'SP' ( ) , 0 :
Ack Ack Ack Ack Silence Reset NET ADDR DEL
0
Enter C/Exit
Event More
Time Info Previous
Menu
On Next
Enable Arm
Disable Off Auto Lamp
Disarm Test
Alarm or Warning Condition How to Silence Building Signals
System i n dicator flashing. Tone On. Press Alarm Silence.
How to Acknowledge / View Events How to Reset System
Press ACK located under flashi n g i n dicator. Press System Reset.
Repeat operation until all events are acknowledged. Press Ack to sil e nce tone devi c e.
Local tone wi l l silence.
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
S4100-0034-12 3/2012
®
