Simplex 4100ES Operating Instructions Manual

UL, ULC, CSFM Listed; FM Approved;
MEA (NYC) Acceptance*
Features
Panel mounted annunciation modules for use with
4100ES/4100U Fire Alarm Control Panels, Remote
Annunciators, and Network Display Units (NDU):
• Modules mount on front of panel bay providing
convenient access and high visibility
• Panel monitors switches for user input and controls
LED indicators to annunciate function status
• Compact 64 LED/64 switch controller modules mount
on back of LED/switch modules
LED/Switch Modules:
• Raised momentary switches provide tactile feedback
• Alternate action operation provides on/off functions
• High intensity LEDs provide clear status annunciation
• Slide-in labels provide custom on-site labeling (label
kit is ordered separately)
8 LED, 8 Switch Modules:
• One status LED per switch
• Available as all red LEDs or all yellow LEDs
16 LED, 8 Switch Modules:
• Two status LEDs per switch
• Available with two LEDs per switch as: red/yellow,
yellow/yellow, red/green, or green/yellow
16 LED, 16 Switch Modules:
• One status LED per switch in 2" (51 mm) module
• Available as all red LEDs, or 8 red and 8 yellow
• Two configurations are available, one with pluggable
LEDs, refer to illustrations on page 2 and product
selection details on page 4
24 LED, 24 Switch Modules:
• Double slot module with one red status LED per
switch
HOA (Hand-Off-Auto) Switch Modules:
• Eight controls in a double slot module, each control
has three switches for status selection and one LED
per switch position
• Switch selection is On/Hand, Off, and Auto
Available with three HOA Module LED Options:
• On/Hand (green LED), Off (red LED) and Auto
(green LED)
• On/Hand (green LED), Off (red LED) and Auto
(white LED) to comply with International Building
Code (IBC) requirements
• On/Hand (green LED), Off (yellow LED) and Auto
(green LED) for applications requiring no red LEDs
• Available with or without switch buttons labels
(On, Off, Auto)
LED Modules with 8 or 16 pluggable LEDs:
• 8 LED Module has red LEDs, 16 LED module has
8 red with 8 yellow
• Red, yellow, green, or blue LEDs are available in
packages of eight (8) to change color on-site per
application requirement (ordered separately)
Panel Mounted LED/Switch and LED Modules,
LED/Switch Controllers, and Panel Mounted Printer
Fire Door
Zones Release
East
East
Wing
Wing
West
Wing
West
South
Wing Wing
South
North
Wing
Wing
Annex
North
Garage
Wing
Annex
Basement
Boiler
Room
Garage
Basement
Boiler
Room

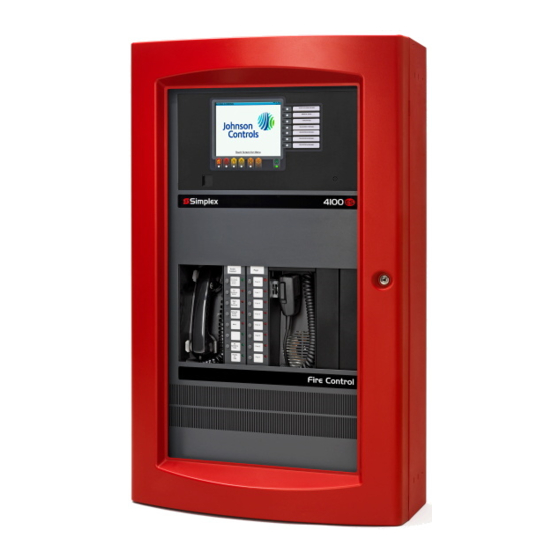

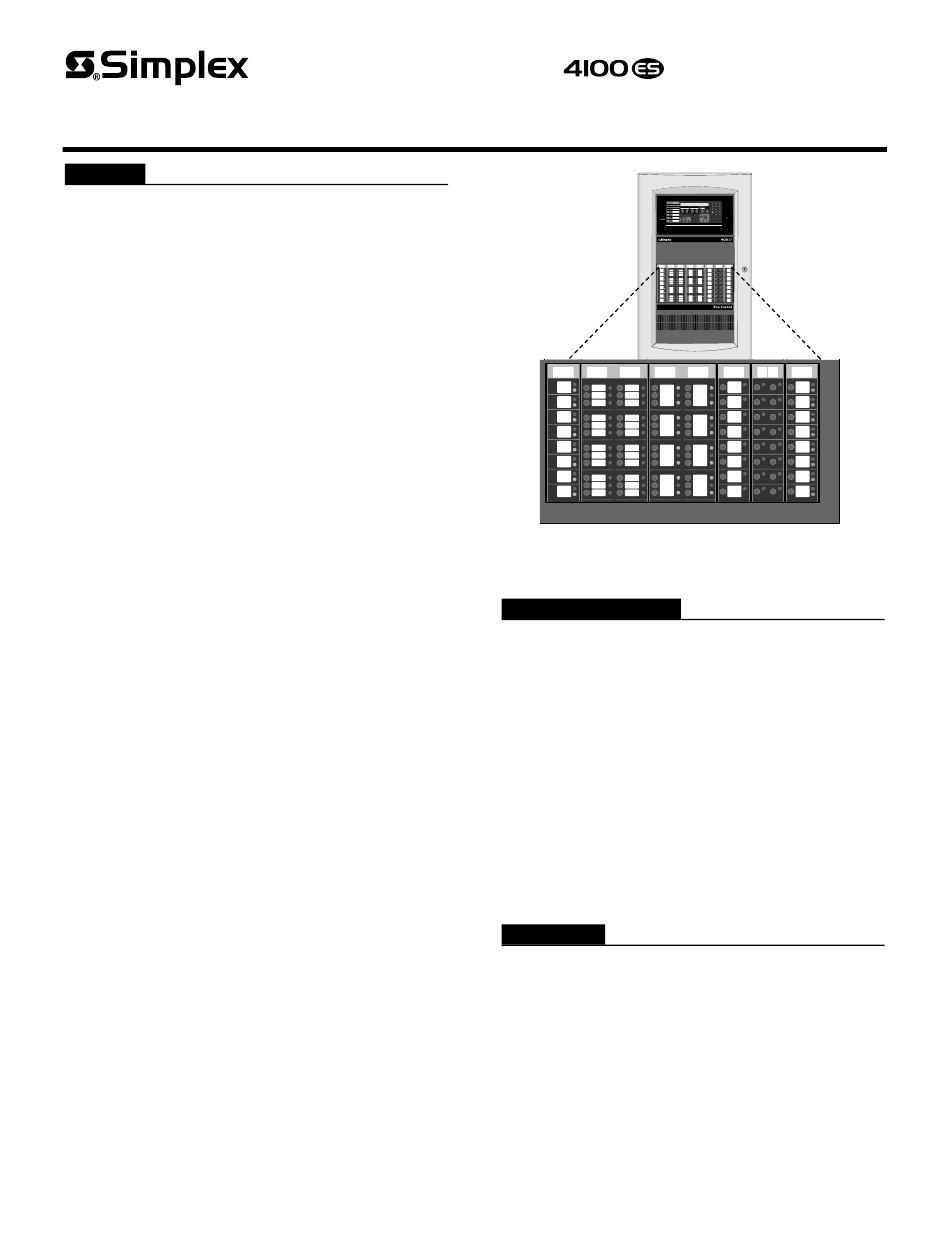

4100ES 2-Bay Fire Alarm Control Panel
with Sample of Available LED/Switch Modules
Features (Continued)
24 Point I/O Module for external connections:
• Each point is selectable as either a switch input
(momentary or maintained) or lamp/relay driver output
• Multiple switch monitoring modes are available
Panel mounted printer
• Records system events and provides 20 visible lines
Listed to:
• UL Std. 864, Fire Detection and Control (UOJZ), and
Smoke Control Service (UUKL)
• UL Std. 2017, Process Management Equipment
(QVAX)
• UL Std. 1076, Proprietary Alarm Units-Burglar (APOU)
• UL Std. 1730, Smoke Detector Monitor (UULH)
• ULC Std. S527-99
Description
Annunciation Options. 4100ES/4100U fire alarm panels
support a variety of switch input and LED status indicators
to complement the information and controls available at the
operator interface. These modules provide a convenient
interface efficiently packaged onto the front panel space of
the cabinet bay. Additionally, the panel mounted printer can
conveniently record system status without requiring a
separately located printer.
*
Refer to additional listing details on page 4. This product has been approved by the
California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California
Health and Safety Code. See CSFM Listing 7165-0026:251 for allowable values and/or
conditions concerning material presented in this document. It is subject to
re-examination, revision, and possible cancellation. Additional listings may be applicable;
contact your local Simplex
under Simplex Time Recorder Co. are the property of Tyco Fire Protection Products.
Fire Control Panels
ZONE A B C D E F SIG G H I AUX
1 2 3
J K L M N O P Q R
FB IO IDNet
ALARMS SYSTEM WARNINGS AC Power 4 5 6
Fire Alarm Priority 2 Alarm Supervisory Trouble Alarm Silenced S T U V W X Y Z /
7 P 8 A 9 L
Fire Alarm Priority 2 Supv Trouble Alarm System 'SP' ( ) NET , 0 : ADDR
Ack Ack Ack Ack Silence Reset 0 DEL
Enter C/Exit
Event More
Time Info Previous
Menu
Enable On Next
Arm
Disable Off Disarm Auto Test Lamp
Emergency Operating Instructions
Alarm or Warning Condition How to Silence Building Signals
System indicator flashing. Tone On. Press Alarm Silence.
How to Acknowledge / View Events How to Reset System
Press ACK located under flashing indicator. Press System Reset.
Repeat operation until all events are acknowledged. Local tone will silence. Press Ack to silence tone device.
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
On On
Off Off
Auto Auto
Manual HVAC HVAC Fan Fan Smoke
Control
Alarms Controls Controls On Off Alarms
East East
East
On On
Wing Wing
Wing
East
West Off Off Annex
Wing Wing
West West
South
Auto Auto
Wing
Wing Wing
South South
North
On On
Wing Wing
Wing
West
Off Off
Annex Garage
Wing
North North
Garage Auto Auto
Wing Wing
Annex Annex
On On
Basement
South
Boiler
Off Off
Basement
Wing
Room
Auto Auto Garage Garage
Basement
On On Basement
North Boiler
Off Off
Wing Room
Boiler
Boiler
Auto Auto
Room
Room
(see pages 6 and 7 for details)
product supplier for the latest status. Listings and approvals
®
S4100-0032-13 8/2018
:
