Simplex 4100ES Operating Instructions Manual

UL, ULC, CSFM Listed;
FM, NYC Fire Dept Approved*
Features
Compatible with Simplex ES Net or 4120 Fire Alarm
Networks
Multi-line expanded content display interface for
®
Simplex 4100ES Series fire alarm control panels,
available with the following products:
 Fire alarm control panels (stand-alone or networked)
 Network Display Units (NDU) with support for up to
12,000 points
 Remote InfoAlarm Command Centers mounted in a
dedicated cabinet (4100ES control panels support
Remote InfoAlarm Command Centers independent of
host panel display type)
 Models include an Enhanced Power Supply (EPS) and
battery charger (9 A total) with on-board: IDNAC SLCs
for addressable appliance control, an electrically isolated
IDNet 2 addressable device control module with dual
short circuit isolating output loops; and programmable
function auxiliary output
 For additional information concerning EPS power
supplies and their enhanced features, refer to 4100ES
data sheet S4100-0100
 For additional 4100ES related applications, including
models with power supplies for conventional
non-addressable NACS, refer to data sheet S4100-0045
InfoAlarm Command Centers provide customized
operating convenience:
 "Activity in System" primary display choices include:
First and Most Recent, First 5 and Most Recent, First 8,
Site Plan with activity status icons, General Alarm, or
Direct to List; selectable individually by event type
 System reports are easily viewed; logs can be read with
minimal scrolling required
 Up to six "softkeys" per screen provide functions that aid
operators in determining how to proceed
 Up to two languages are available per system, easily
selected by programmable key press (systems with
IMS/GCC/NPU or 2 x 40 LCD panels or annunciators
require one language to be the default font)
 International models allow customized language legends
for operator keys and status LEDs
 Information sent to Remote InfoAlarm Command
Centers can be vectored by point
Display properties:
 320 x 240 dot matrix (QVGA) display provides an active
area of 4.53" W x 3.4" H (115 mm x 86 mm)
 Bright white LED backlighting provides efficient and
long lasting illumination; operation is selectable as
continuous or off with power fail or with no key presses
UL listed to Standard 864
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing
7165-0026:0251 for allowable values and/or conditions concerning material presented in
this document. It is subject to re-examination, revision, and possible cancellation. NYC
Fire Dept COA #6151. At the time of publication only UL and ULC listings are applicable to
ES Net network products. Additional listings may be applicable; contact your local Simplex
product supplier for the latest status. Listings and approvals under Simplex Time Recorder
Co. are the property of Tyco Fire Protection Products.

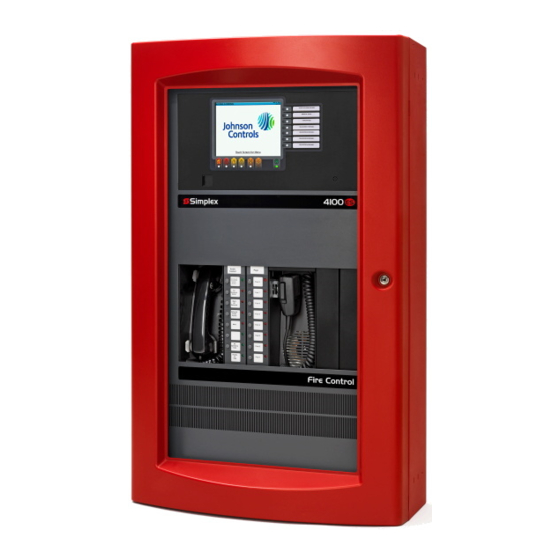

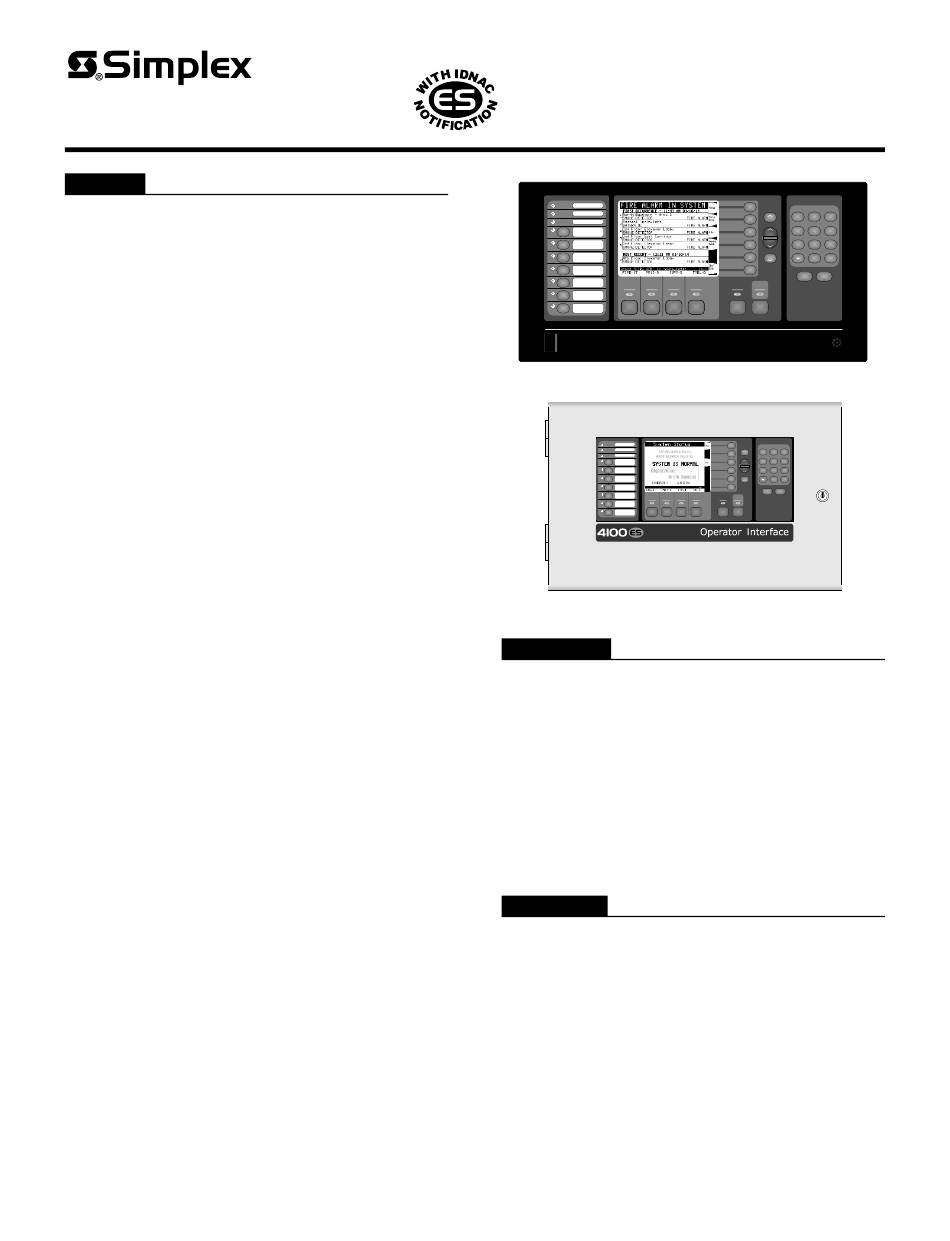

4100ES Fire Control Panels
InfoAlarm Command Center for Fire Alarm
Control Panels with EPS Power Supplies
Fire Priority 2 System
Alarm Alarm Supervisory
Fire Alarm Priority 2 Supv
Ack Ack Ack
ALARMS WARNINGS
Emergency Operating Instructions
How to Acknowledge / View Events Alarm or Warning Condition
Press ACK located under flashing indicator. System indicator flashing. Tone On.
Repeat operation until all events are acknowledged.
How to Silence Building Signals
Local tone will silence.
Press Alarm Silence.
InfoAlarm Command Center for Control Panel Mounting
Fire Priority 2 System
Alarm Alarm Supervisory
Fire Alarm Priority 2 Supv
Ack Ack Ack
ALARMS
InfoAlarm Command Center in Remote Cabinet
Introduction
Displaying more information. 4100ES Controls using
the InfoAlarm Command Center provide an expanded
content, multi-line LCD interface that requires minimal key
presses to access detailed information. Because it is
system-powered, its detailed information is provided without
requiring separate supplementary equipment.
InfoAlarm Command Center Control Panel. By using
a larger area format instead of an individual text line display,
the LCD provides text information for Alarm, Supervisory,
or Trouble. The format is flexible and able to be customized
per application allowing additional information to be
presented to suit the specific application.
Description
InfoAlarm Command Centers for 4100ES fire alarm
systems provide a large display with extended information
content, dual language support including 2 byte character
languages, and an intuitive control key interface per the
following:
 Up to 10 InfoAlarm Command Centers are supported per
4100ES control panel; able to allow one InfoAlarm
Command Center to take-control and to designate access
levels for interfaces not in-control; LEDs can be
programmed for in-control status indications
 Menu-driven format conveniently prompts operators for
the next action required
 Key controls are provided to select the highlighted entry,
load next screen of information, or jump to top or
bottom of activity lists
A B C D E F G H I
ZONE SIG AUX
1 2 3
Page Up
J K L M N O P Q R
FB IO IDNet
Previous 4 5 6
S T U V W X Y Z /
P A L
Next
7 8 9
'SP' ( ) , # :
NET ADDR
Page Dn C/Exit
0
Menu Enter
System Alarm AC
Trouble Silenced Power
Trouble Alarm System
Ack Silence Reset
How to Reset System
Press System Reset.
Press Ack to silence tone device.
A B C D E F G H I
ZONE SIG AUX
1 2 3
Page Up
J K L M N O P Q R
FB IO IDNet
4 5 6
Previous
S T U V W X Y Z /
P A L
Next
7 8 9
'SP' ( ) , # :
NET ADDR
Page Dn C/Exit
0
Menu Enter
System Alarm AC
Trouble Silenced Power
Trouble Alarm System
Ack Silence Reset
WARNINGS
(continued next page)
S4100-0101-8 5/2018
