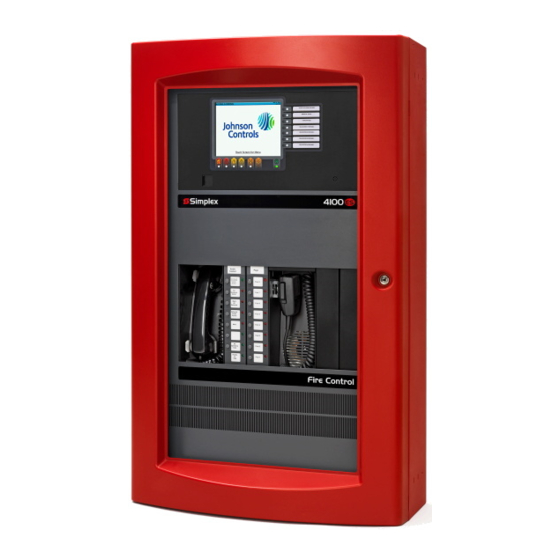

Simplex 4100ES Manual

UL, ULC, CSFM Listed; FM Approved
MEA (NYC) Acceptance*

Features

Releasing control using the Simplex
(or 4100U) Fire Alarm Control Panel to provide**:
 Coverage for multiple areas of Automatic Extinguishing
Release and/or Deluge and Preaction Sprinkler System
Release including audible escalation of events
 Control of compatible Listed/Approved 24 VDC
automatic control actuators, one per circuit; or two
12 VDC actuators in series per circuit
 Releasing appliance circuits (RACs) by connecting
Notification appliance circuits (NACs) to Suppression
Release Peripherals for actuator supervision and control

Audible Escalation of Events:

 Temporal or 20 bpm March Time pattern for first
cross-zone alarm
 120 bpm March Time pattern to indicate releasing timer
active
 On steady to indicate releasing timer expired and
actuator is activated
 NOTE: Requires NACs dedicated to conventional horn
control (not SmartSync operation) with strobes
controlled on separate NACs
4090-9005/-9006 Suppression Release Peripheral
(SRP) with Dual Command Control:
 Dual command control requires that both IDNet
communications commands and an activated NAC are
present to initiate the desired release
 NAC provides wiring supervision to the actuator
including monitoring of coil continuity and short circuit
supervision to the coil supervision module

Suppression Release Peripheral control features:

 An on-board DC-DC regulator compensates for
voltage drops to the peripheral and ensures proper
control circuit voltage over a wide operating range
 Provides a single RAC for control of actuators for up
to 2 A using a 3 A NAC input (1 A using a 2 A NAC
input)

Related system components:

 4100ES Series control panel with Releasing Appliqué
 Dedicated NAC output from 4100ES (or compatible
NAC Extender)
 Coil supervision module, one per RAC
 Maintenance Switch, one per RAC
 Abort Switch connected via an addressable interface
module
UL listed to Standard 864
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listings
7165-0026:251 and 7300-0026:313 (SRP) for allowable values and/or conditions
concerning material presented in this document. Additional listings may be applicable;
contact your local Simplex product supplier for the latest status. Listings and approvals
under Simplex Time Recorder Co. are the property of Tyco Safety Products Westminster.
Automatic Extinguishing, Deluge and Preaction
®
4100ES

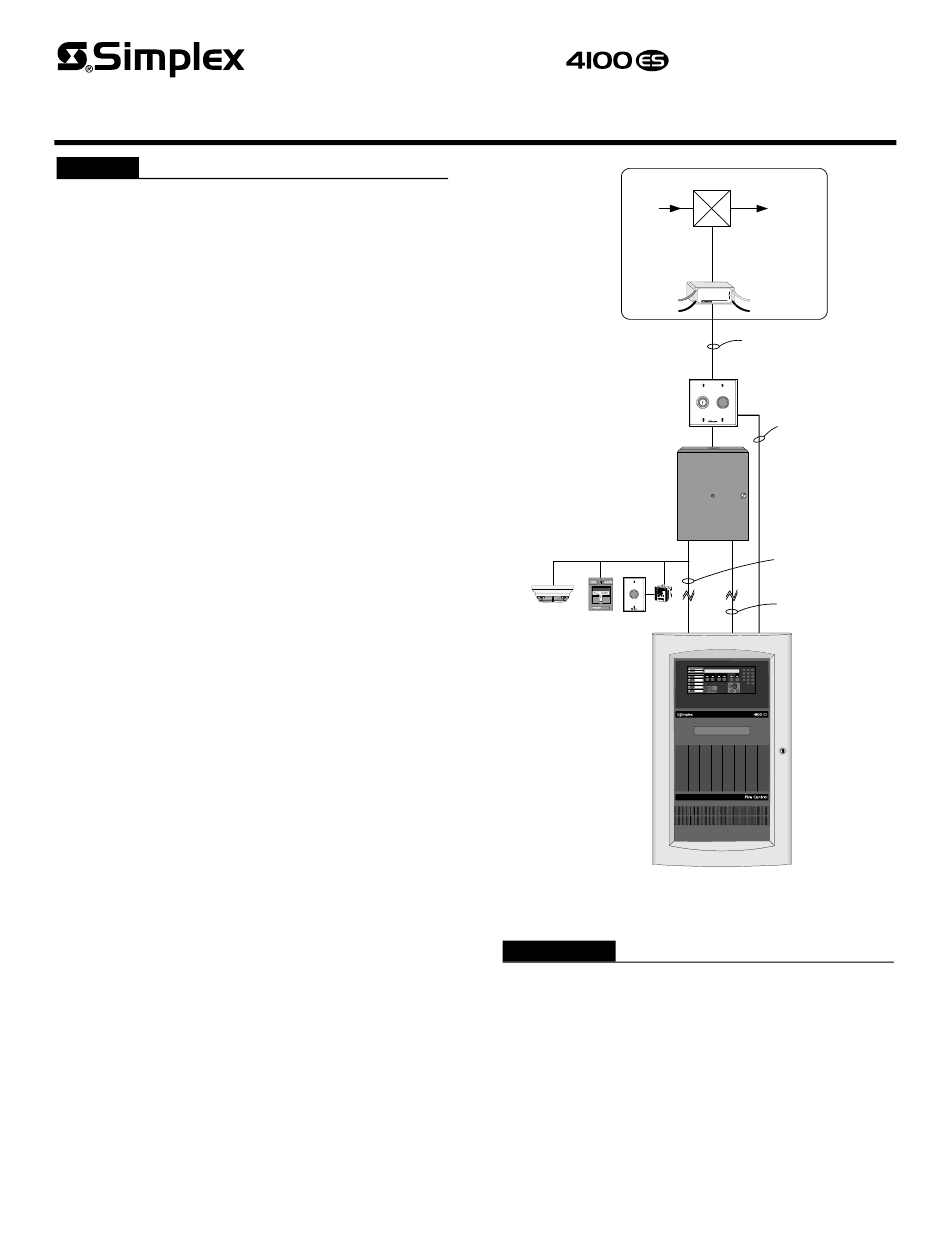

4100ES Series Releasing Control Typical Block Diagram
Introduction
When combined with Suppression Release Peripherals,
the 4100ES series fire alarm control panel provides
actuator supervision and control for use in automatic
extinguishing, and deluge or preaction releasing systems.
Hazard area initiating and notification devices are
controlled using either conventional or addressable
circuits per standard 4100ES capabilities. The necessary
releasing system logic is implemented within the 4100ES
control panel as required for the local application.
** Release Control operation described in this document is also available with 4100U
Control Panels with software revision 11.05 or higher. Refer to data sheet S4100-0031
for model 4100ES control panel details including IDNet communications information.
Fire Control Panels
Sprinkler System Releasing Control
Actuator
Agent
source
Actuator
Control
Circuit
Coil supervisory
module
CO I L S UP E R V I S I O N MODU L E ( 2 A MP ) 2 0 8 1 - 9 0 4 6
RE D I N S T A L L A T I O N I N S T RUCT I O N S 5 7 4 - 4 3 7 R E V Y E L
NA C+
MA I N T A I N 1 / 4 " S E P A RA T I O N
B E T W E E N P OW E R L I M I T E D
( RE D / B L K ) A ND NON P O W E R
L I M I T E D ( Y E L / B L K ) W I R I N G
DA T E CO DE : 5 1 9 - 9 5 8 B L K
N A C-
B L K S I M P L E X T I M E R E C O R D E R C O . G A R D N E R M A . U S A
Maintenance
NORMAL
Disconnect Switch
0
DISC./
1
DISABLE
(with indicator lamp)
FIRE SUPPRESSION
DISCONNECT / DISABLE
FIRE
RELEASING
Suppression
DEVICE
Release Peripheral
Typical addressable
initiating devices
FIRE SUPPRESSION
SYSTEM ABORT
PUSH AND HOLD
MANUAL
RELEASE
SUPPRESSION RELEASE PANEL
CAUTION: This Control Unit has been arranged for releasing
service. Disable all releasing device circuits prior to servicing .
4100ES Control Panel with
Suppression Release Appliqué
Agent
discharge
path
S
Release
appliance circuit
Power for
indicator lamp
(if required)
IDNet
communications
Dedicated
NAC circuit
S4100-0040-9 12/2015
