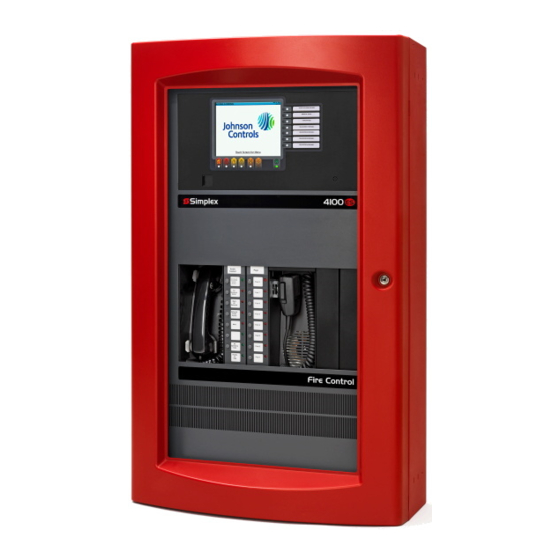

Simplex 4100ES Installation Instructions And Operators Manual

UL, ULC, CSFM Listed;
FM Approved*
Features
IDNet expansion module for 4100ES fire alarm
control panels:
 Provides 250 IDNet device point control including
both QuickConnect and QuickConnect2 sensors
 Extends the 4100ES QuickConnect and
QuickConnect2 sensor sensitivity to seven levels of
adjustment from 0.2% to 3.7%
 Requires a single block (4" x 5") module location
 Also compatible with 4100U systems
Intended for upgrade of Simplex
control panels:
 Allows for system expansion beyond 250 addressable
points, up to the 2500 point capacity of the 4100ES
control panel
 Systems can retain the installed QuickConnect and/or
QuickConnect2 sensors
 Additional IDNet SLC (Signaling Line Circuit)
channels are available from 4100ES standard or
expansion IDNet modules
UL Listed to Standard 864
Description
4010 System Upgrade. The Simplex model 4010 fire
alarm control panel provides for up to 250 addressable
points using IDNet communications. One of the 4010
unique devices is the QuickConnect sensor.
QuickConnect sensors provide TrueAlarm analog
sensing in a feature optimized package, primarily suited to
smaller systems. The original QuickConnect sensor has been
replaced with the QuickConnect2 sensor.
When a facility expands beyond the capacity of the
4010 control panel, the preferred upgrade is the 4100ES fire
alarm control panel. Standard 4100ES IDNet signaling line
circuits (SLCs) are not compatible with QuickConnect
sensors. However, with the 4100-3106, all of the 4100ES
compatible IDNet devices and the QuickConnect and
QuickConnect2 sensors can be connected to the same fire
alarm control panel.
Expanded Sensitivity Range. Additionally, the 4100ES
with the 4100-3106 module can provide a full range of
sensitivity for the QuickConnect sensors with seven levels
of adjustment from 0.2% to 3.7%. Standard sensitivities are
1.5%, 2.0%, 2.5%, and 3.7%. Sensitivities of 0.2%, 0.5%,
and 1% are for special applications in clean areas. (For
detailed application information including sensitivity
selection, refer to Installation Instructions 574-709.)
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing 7165-0026:251
for allowable values and/or conditions concerning material presented in this document. It is
subject to re-examination, revision, and possible cancellation. This product was not approved
by MEA (NYC) as of document revision date. Additional listings may be applicable, contact
your local Simplex product supplier for the latest status. Listings and approvals under
Simplex Time Recorder Co. are the property of Tyco Fire Protection Products.
QuickConnect/QuickConnect2 Sensor Compatibility
®
4010 fire alarm
Fire Control Panels
4100-3106 IDNet Expansion Module with
To additional IDNet
devices, up to 250 total
Original Facility
Requirements
QuickConnect2
TrueAlarm sensor
Modular TrueAlarm
sensor with base
Supervised IAM
Modular TrueAlarm sensor
with IDNet isolator base
FIRE ALARM
PULL DOWN
Addressable station
1 5
2 6
3 SI M PLEX TI M E RECO RDE R CO . 7
4090 - 9002
R E LA Y I A M
I N S T A L. IN S TR . 574-184
D A TE C O D E :
4 8
1
QuickConnect
Monitor ZAMs
TrueAlarm sensor
and Relay IAMs
Original 250 point
4010 Fire Alarm
Control Panel
New 2500 point 4100ES
Fire Alarm Control Panel
4100-3106 IDNet module
with QuickConnect
Sensor Support

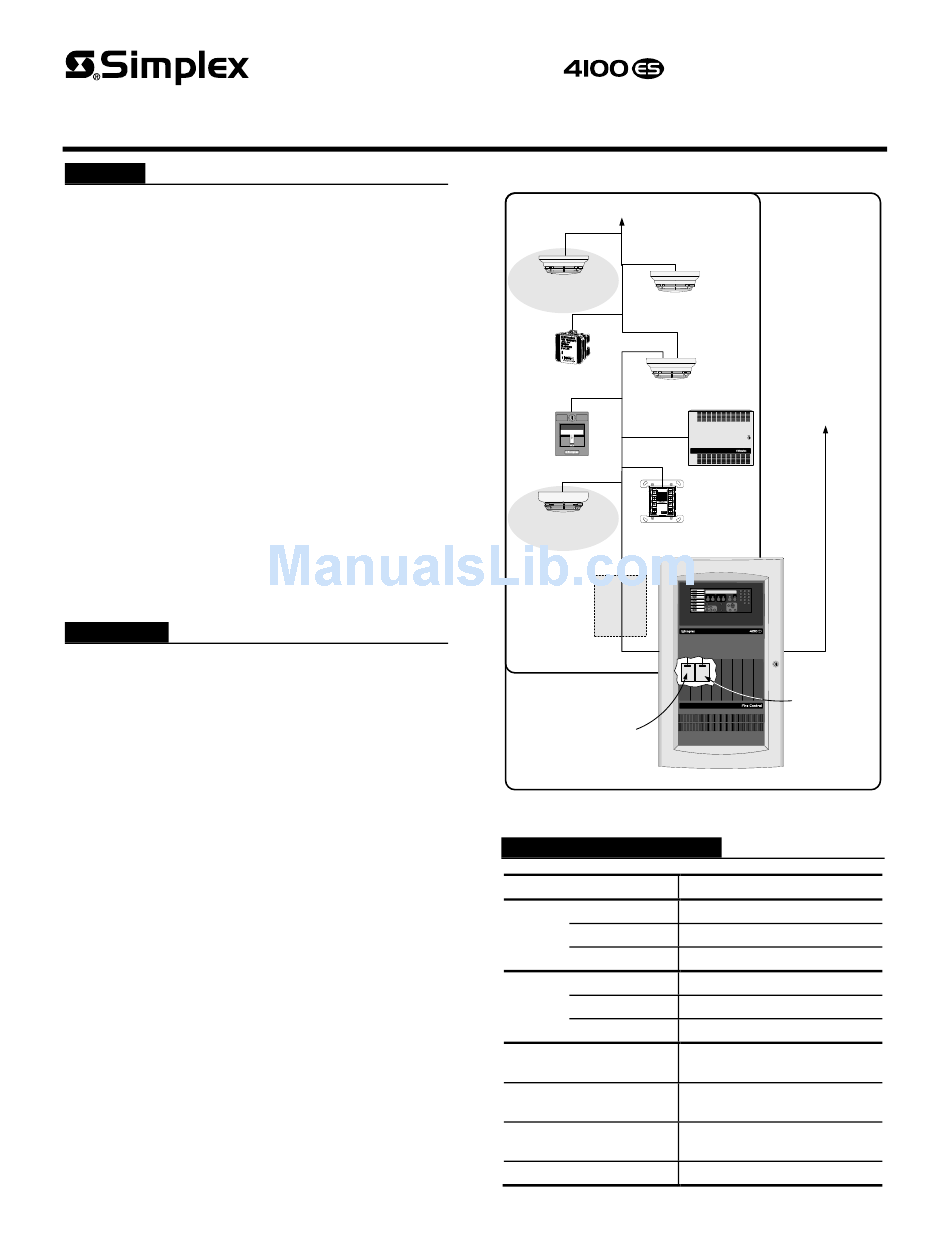

4010 System Expansion using a 4100-3106 IDNet Module
4100-3106 Specifications
Capacity 250 points
with 250 devices 275 mA
Standby
without devices 75 mA
Current
per device 0.8 mA
with 250 devices 265 mA
Alarm
without devices 115 mA
Current
per device 1 mA
Operating Temperature
32 F to 120 F (0 C to 49 C)
Range
Up to 93% RH, non-condensing
Humidity Range
@ 90° F (32° C)
Single 4100ES block; 4" x 5"
Mounting
(102 mm x 127 mm)
Installation Instructions 574-800
Facility Expansion
Requirements
To additional IDNet
devices, up to 250
total per IDNet SLC
C A U TIO N
DI S CO NN ECT
PO W ER
SER VI CI N G BE FO RE
4009 IDNet NAC EXTENDER
T M
4009 IDNet NAC
Extender
IDNet SLC
channel for
standard devices
S4100-0039-4 2/2014
