Simplex MINIPLEX 4100ES Series Manual

UL, ULC, CSFM Listed;
FM Approved *
Features
4100ES Series MINIPLEX transponders allow
remotely located initiating and notification
functions:
 Transponder operation is available as standard or with
local mode operation
 Communications with the host fire alarm control panel
use the Remote Unit Interface (RUI/RUI+) format
Initiating functions include:
 Addressable device support including TrueAlarm
analog sensor compatibility
 Conventional initiating device circuit (IDC) support
Notification functions include:
 Addressable strobe and horn notification using
enhanced power delivery IDNAC SLCs
 Emergency voice/alarm communications
 Conventional DC notification appliance circuits (NACs)
Local mode operation provides:
 Default local initiating and notification operation in the
event of a communications loss with the host control panel
 Enabling of an optional Local Mode Controller with a
local alarm sounder, LED status indicators, and
keyswitch enabled control switches
 Support for IDNet addressable devices, addressable and
conventional notification appliances, and default output
tones from local amplifiers
Optional modules include:
 Digital or Analog audio riser modules for connection to
system audio signals
 Digital or analog input audio amplifiers with integral
on-board NACs
 Power supplies with or without battery chargers
 City Connect modules and RS-232 ports for printers or
maintenance terminals
 Alarm relays, auxiliary relays, additional IDC modules,
and NAC expansion modules
Cabinets are equipped with solid doors (beige or
red) and in one, two, or three bay sizes
Listed to:
 UL Std. 864, Fire Detection and Control (UOJZ), and
Smoke Control Service (UUKL)
 UL Std. 2017, Process Management Equipment (QVAX)
 UL Std. 1076, Proprietary Alarm Units-Burglar (APOU)
 UL Std. 1730, Smoke Detector Monitor (UULH)
 ULC Std. S527-99
* See pages 4 and 5 for product that is listed as UL or ULC. This product has been approved by
the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health
and Safety Code. See CSFM Listing 7165-0026:0251 for allowable values and/or conditions
concerning material presented in this document. Additional listings may be applicable; contact
your local Simplex product supplier for the latest status. Listings and approvals under Simplex
Time Recorder Co. are the property of Tyco Fire Protection Products.
4100ES Fire Control Panels
Addressable Fire Detection and Control
MINIPLEX Transponders
MINIPLEX
transponder
IDNet addressable
devices
FIRE ALARM
PULL DOWN
Audio NAC
Emergency Operating Instructi ons

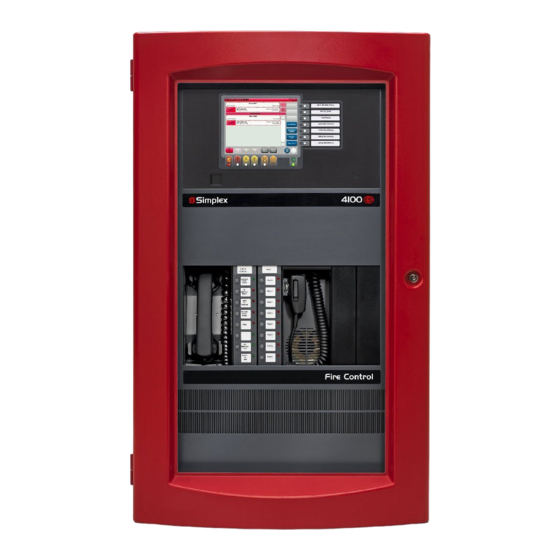

4100ES Fire Alarm Control Panel
with Voice Control
Typical 4100ES MINIPLEX System One-Line Drawing
Introduction
4100ES MINIPLEX transponders connect to a host
4100ES Fire Alarm Control Panel using Simplex
unit interface (RUI) communications. At the transponder,
RUI communications are received by the transponder
interface module and translated into the same internal
communications format that is used in the host control
panel.
Remotely located modules. With RUI
communications, the transponder can remotely provide
the same initiating and notification functions that occur at
the host control panel without requiring multiple long
distance wiring runs. Connections to the host panel are
low current communications and audio wiring with
distances up to 2500 ft (762 m).
Additional Reference. Refer to document S4100-0100
and the other documents listed on page 3 for additional
information concerning the extensive initiating and
notification features of the 4100ES fire alarm control
panels.
Addressable strobes
on IDNAC SLC
C D I S C O N NEC T A.C . POWE R AN D
A B EFORE B A T TE RY
U SE RV IC I N G
T
I
O
N
Local mode
Fire Alarm Local Mode Controller
Alarm
Loca l
Mode
CONTROL Control Alarm
Silenced
ENABLE
Local
Mode controller
Active
Alarm
Silenc e Res et
Po wer
On
A B C D E F G H I
Z ONE S IG AUX
1 2 3
FB J K L M N O IO P Q R IDNe t
4 5 6
Fire A larm ALARM S Pr i ori ty 2 Ala rm S uperv i sory S Y STEM WARNI NGS Trou ble Al arm Si l enced AC P ower
P S T U V W X A Y Z / L
7 8 9
Fire A larm P rio rity 2 S up v Troubl e Al arm S ystem ' SP ' ( ) , 0 :
Ac k Ack Ack Ack S i l ence Reset NE T ADDR 0 DEL
E vent More Enter C/Exit
T ime I nfo Pre v ious
Menu
E nable On N e xt
Arm
Of f Lamp
Di sable Di sa rm A uto Test
Alarm or Warning Condition How to Silenc e Building Signals
S yst em indi cat or f lashing . Tone On. P ress Al arm Si l ence .
How to Ac knowledge / View Events How to Reset System
P ress ACK locat ed under f lashing indicat or . P ress S ystem Reset .
Repeat oper ation unt il all events are acknowledged . P ress Ack t o si l ence t o ne de vice .
Local t one will silence.
On On
Of f Of f
A ut o A ut o
On On
Of f Of f
A ut o A ut o
On On
Of f Of f
A ut o A ut o
On On
Of f Of f
A ut o A ut o
®
remote
S4100-0103 5/2013
