FC 300 Instruction Manual

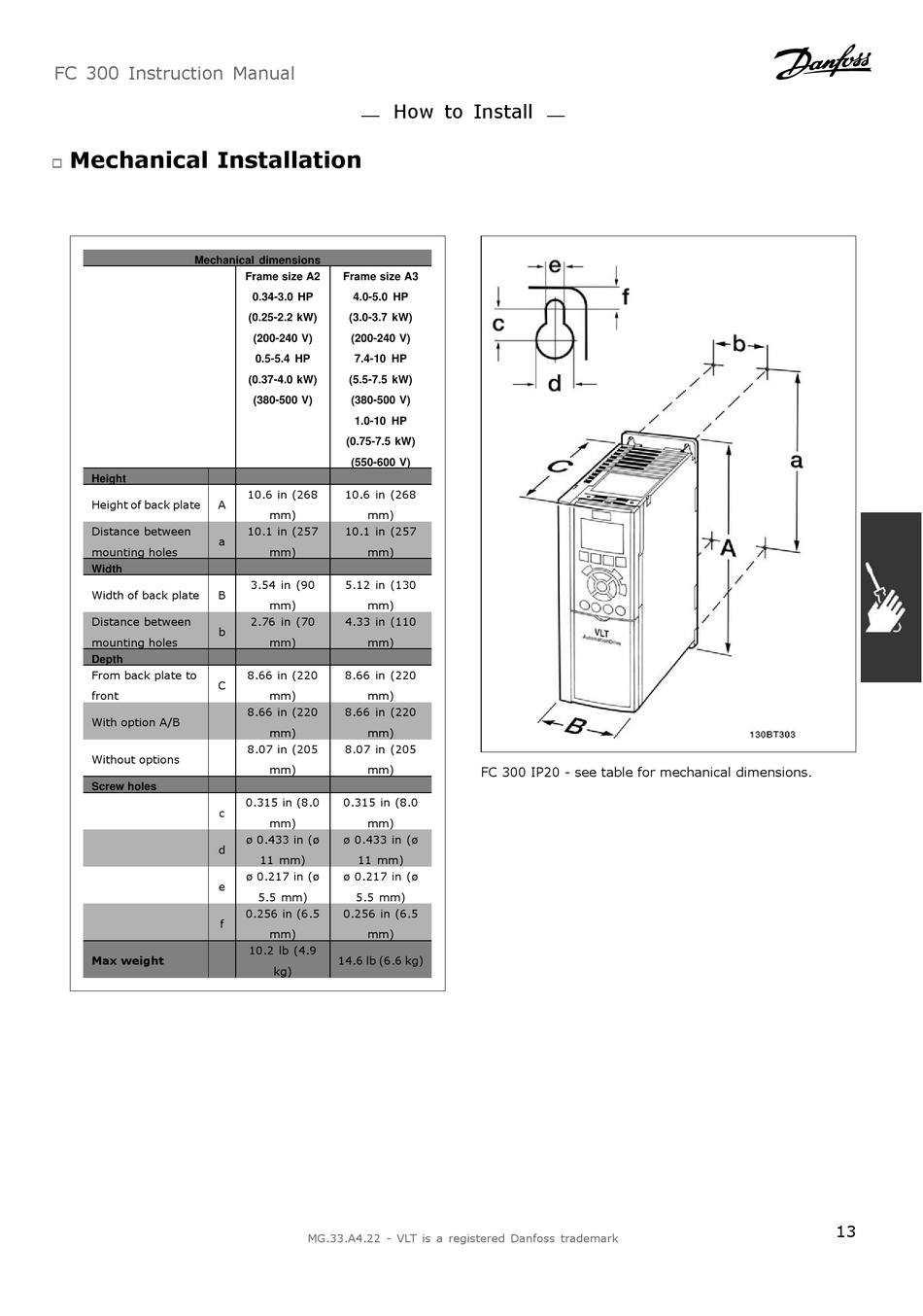

Mechanical Installation

"
Mechanical dimensions
Height
Height of back plate A
Distance between
a
mounting holes
Width
Width of back plate B
Distance between
b
mounting holes
Depth
From back plate to
C
front
With option A/B
Without options
Screw holes
c
d
e
f
Max weight
How to Install
Frame size A2 Frame size A3
0.34-3.0 HP 4.0-5.0 HP
(0.25-2.2 kW) (3.0-3.7 kW)
(200-240 V) (200-240 V)
0.5-5.4 HP 7.4-10 HP
(0.37-4.0 kW) (5.5-7.5 kW)
(380-500 V) (380-500 V)
1.0-10 HP
(0.75-7.5 kW)
(550-600 V)
10.6 in (268 10.6 in (268
mm) mm)
10.1 in (257 10.1 in (257
mm) mm)
3.54 in (90 5.12 in (130
mm) mm)
2.76 in (70 4.33 in (110
mm) mm)
8.66 in (220 8.66 in (220
mm) mm)
8.66 in (220 8.66 in (220
mm) mm)
8.07 in (205 8.07 in (205
mm) mm)
0.315 in (8.0 0.315 in (8.0
mm) mm)
ø 0.433 in (ø ø 0.433 in (ø
11 mm) 11 mm)
ø 0.217 in (ø ø 0.217 in (ø
5.5 mm) 5.5 mm)
0.256 in (6.5 0.256 in (6.5
mm) mm)
10.2 lb (4.9
14.6 lb (6.6 kg)
kg)
MG.33.A4.22 - VLT is a registered Danfoss trademark
FC 300 IP20 - see table for mechanical dimensions.
13
