FC 300 Design Guide
6.2. Mechanical Installation
6.2.1. Accessory Bag

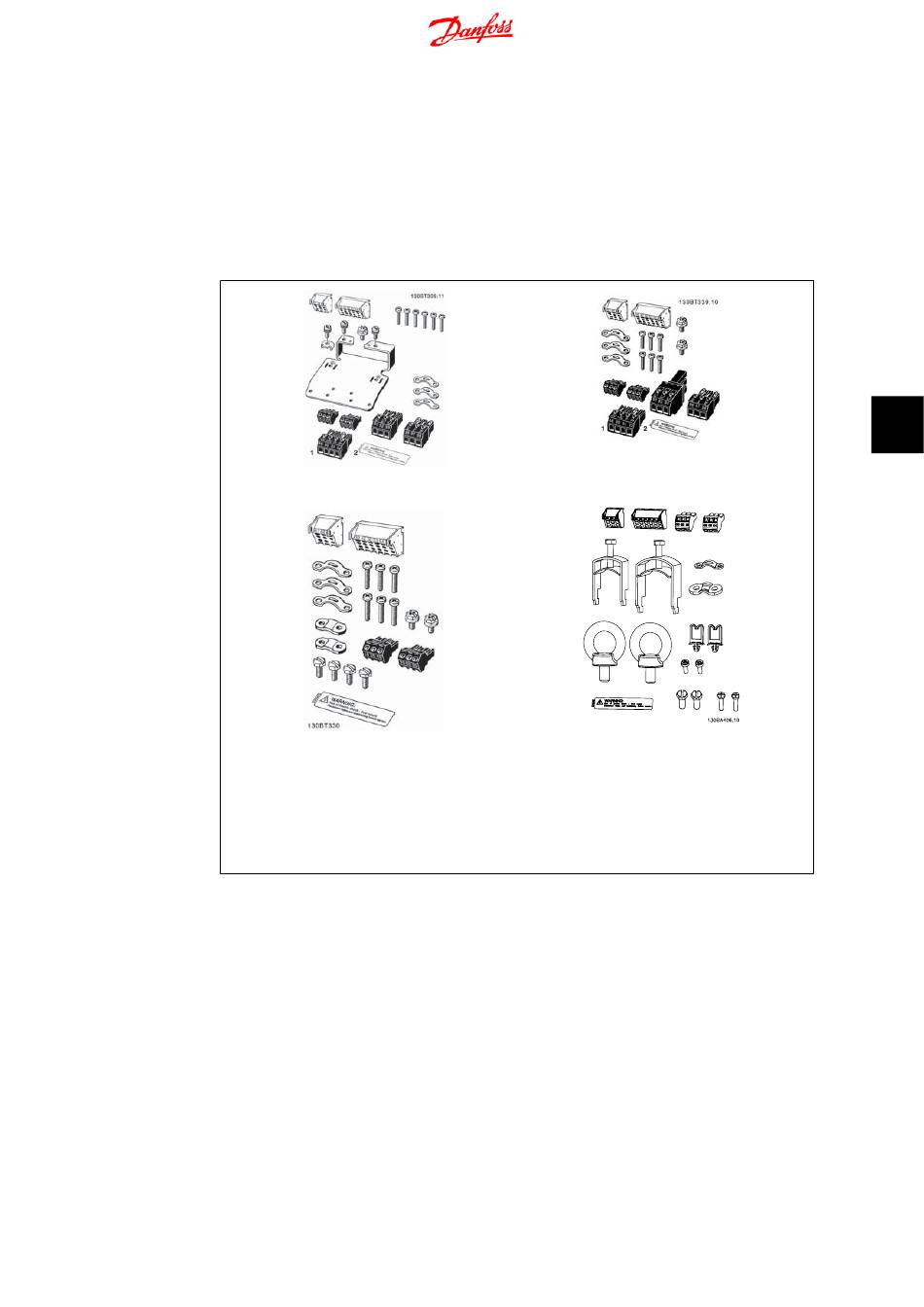

Find the following parts included in the FC
100/ 300 Accessory Bag.
1 + 2 only available in units with brake chopper. Only one relay connector is included for FC
101/301 units. For DC link connection (Load sharing) the connector 1 can be ordered sepa-
rately (Code no 130B1064)
An eight pole connector is included in accessory bag for FC 101/301 without Safe Stop.
Frame sizes A1, A2 and A3
IP20/Chassis
Frame sizes B1 and B2
IP21/IP55/Type 1/Type 12
MG.33.B9.02 - VLT
®
is a registered Danfoss trademark
6. How to Install
Frame size A5
IP55/Type 12
Frame sizes C1 and C2
IP55/66/Type 1/Type 12
6
97
