Data Plate Information

The Data Plate provides the following important information for certifier use during on-
site certifications:
 Nominal Airflows (Inflow and Downflow)
 Downflow Grid Test Point Locations
 Introduction Location for Test Aerosol
 Secondary Inflow Methodology
 NSF49 standard revision under which the biosafety cabinet is listed

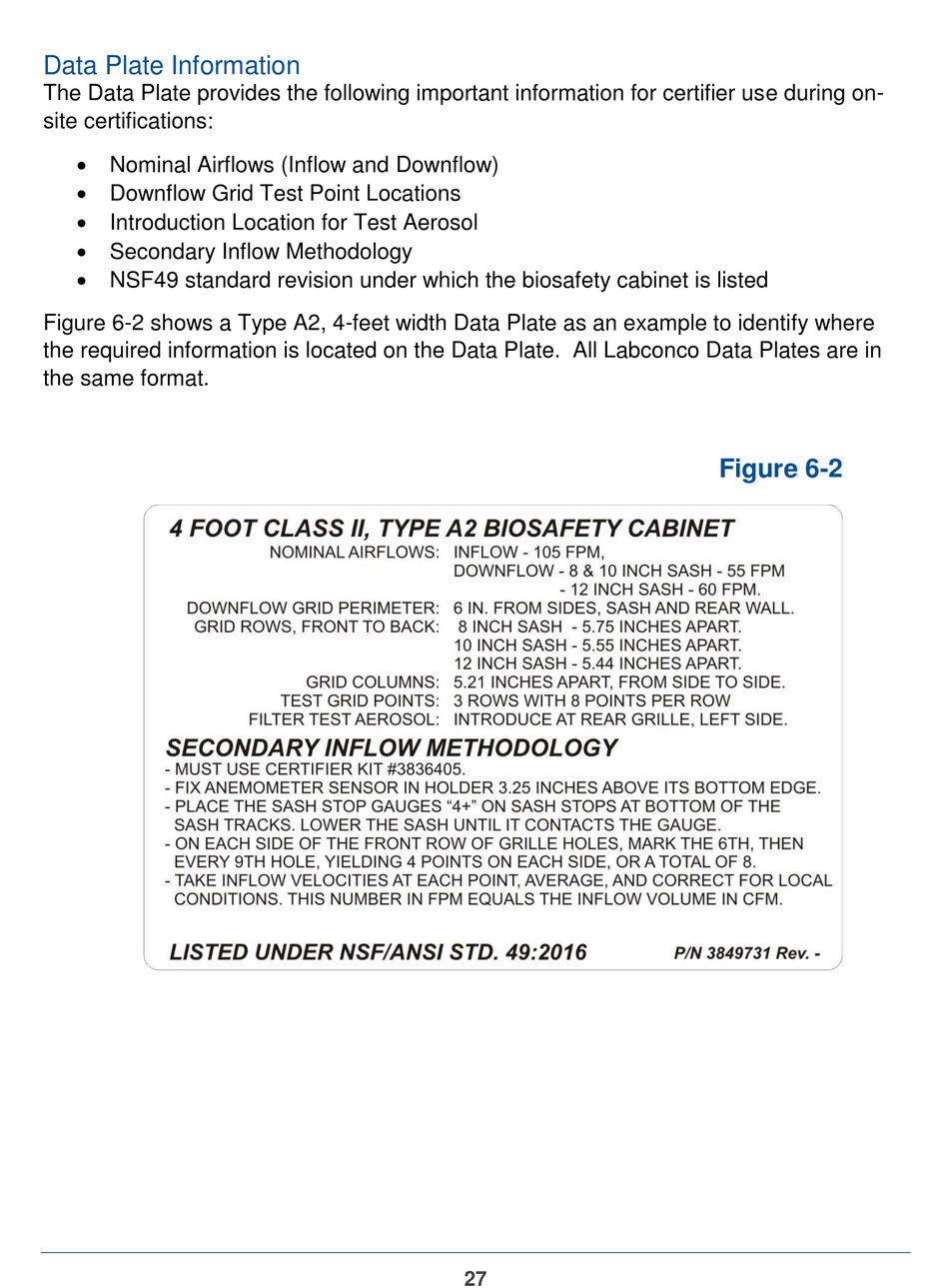

Figure 6-2 shows a Type A2, 4-feet width Data Plate as an example to identify where
the required information is located on the Data Plate. All Labconco Data Plates are in
the same format.
27
Figure 6-2
