Electronic Module Components

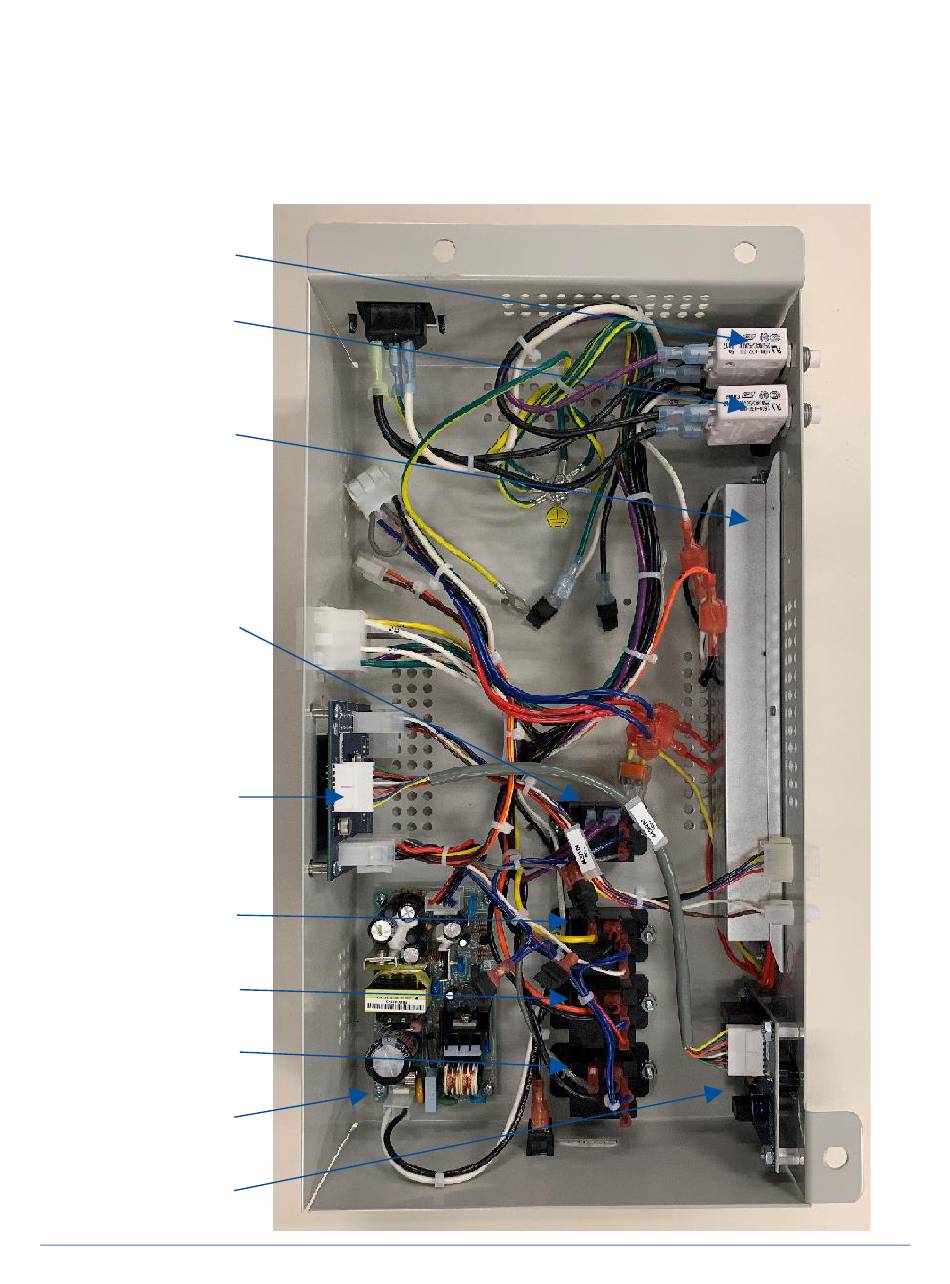

The electronics module contains the circuit breakers, AC relays, power supply board,
transition I/O board, EN Alarm/Dry Relay Contact (optional), and UV lamp ballast
(optional). These components are identified in Figure 13-1.
Outlet Circuit
Breaker(s)
Cabinet Circuit
Breaker(s)
UV Lamp
Ballast
Outlets Relay
I/O Board
LED Lamps
Relay
UV Light
Relay
Optional Gas
Valve Relay
Power Supply
Board
Optional EN
Alarm/Dry Contact
Board
141
Figure 13-1
