7. Double check all power has been removed from the biosafety cabinet.
8. Disconnect the two (2) wire harness connections from the motor. The 5-pin
connector, located closest to the blower, is released by depressing the locking
tabs on either side of the connector. The 16-pin data connector is released by
depressing the single locking tab in the center of the connector, on the side of the
connector closest to the blower. See Figure 12-29.
5-pin
Connector
Locking Tabs
Blower
9. Using a 1/2-inch socket or wrench, remove the two upper and one lower
mounting bolts. See Figure 12-30.
Upper
Mounting Bolts

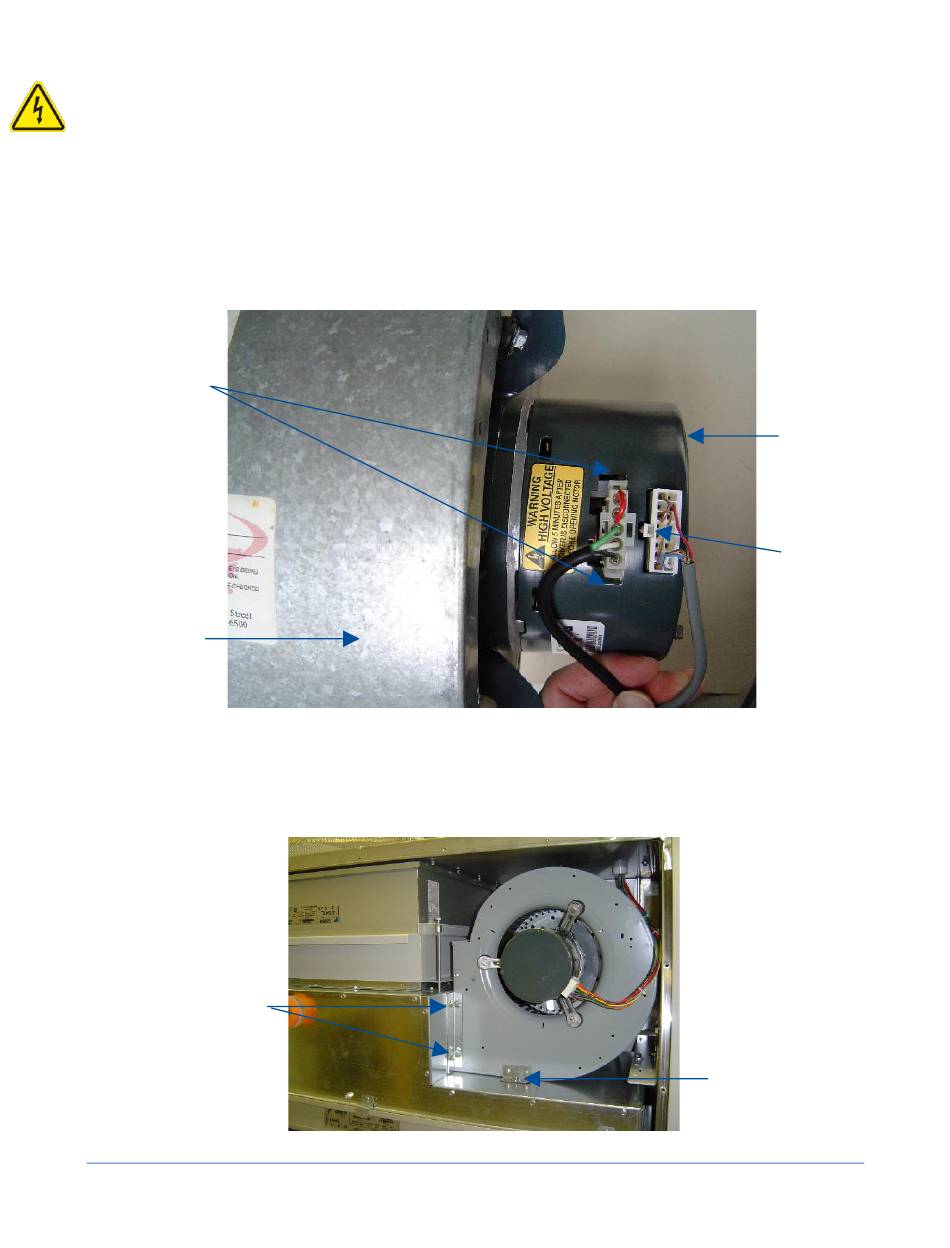

Figure 12-29
Figure 12-30
119
Motor
16-pin
Connector
Locking Tab
Lower
Mounting Bolt
