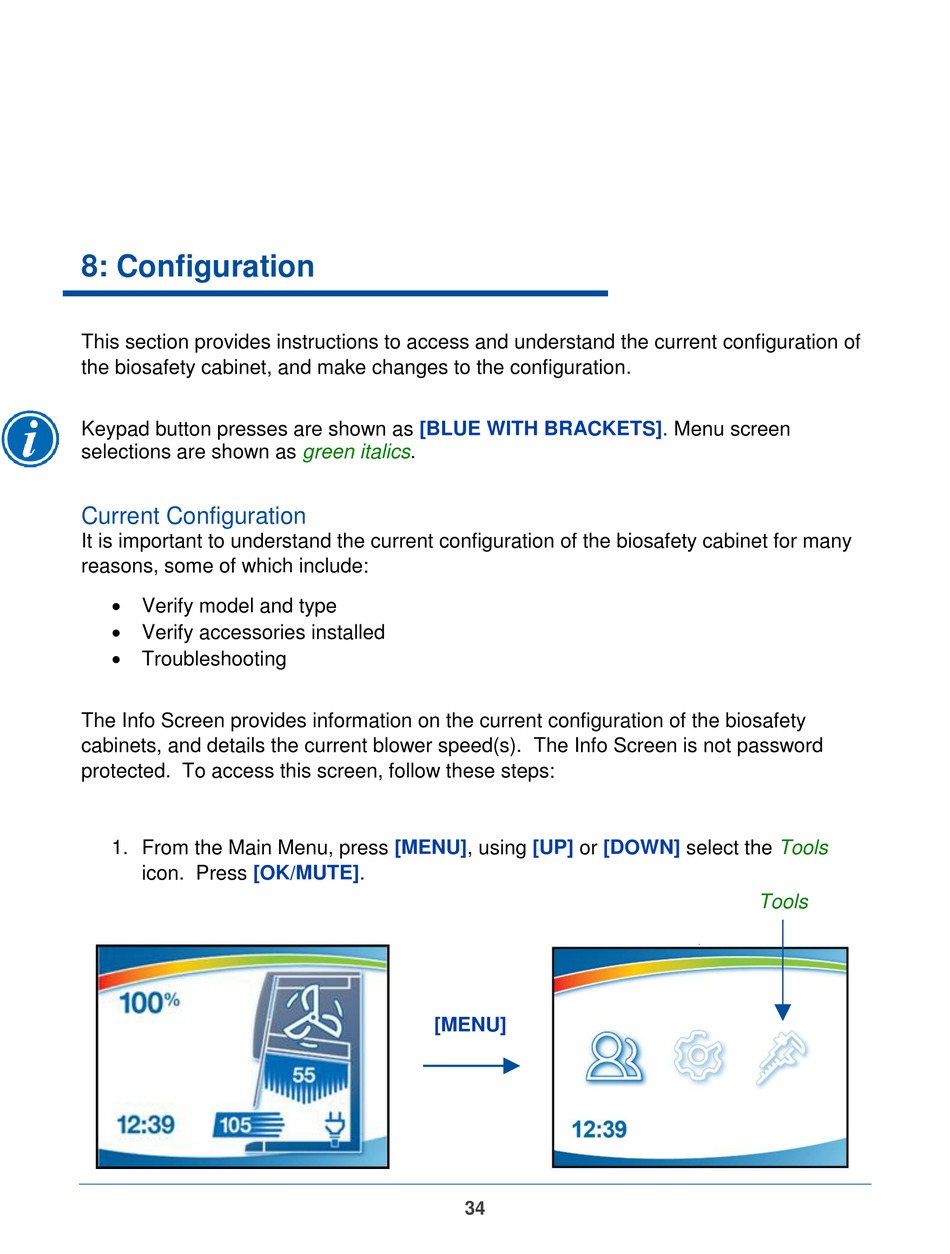

8: Configuration

This section provides instructions to access and understand the current configuration of
the biosafety cabinet, and make changes to the configuration.
Keypad button presses are shown as
selections are shown as

Current Configuration

It is important to understand the current configuration of the biosafety cabinet for many
reasons, some of which include:
 Verify model and type
 Verify accessories installed
 Troubleshooting
The Info Screen provides information on the current configuration of the biosafety
cabinets, and details the current blower speed(s). The Info Screen is not password
protected. To access this screen, follow these steps:
1. From the Main Menu, press [MENU], using
icon. Press [OK/MUTE].
[BLUE WITH
green italics.
[MENU]
34
BRACKETS]. Menu screen
[UP] or [DOWN] select the Tools
Tools
