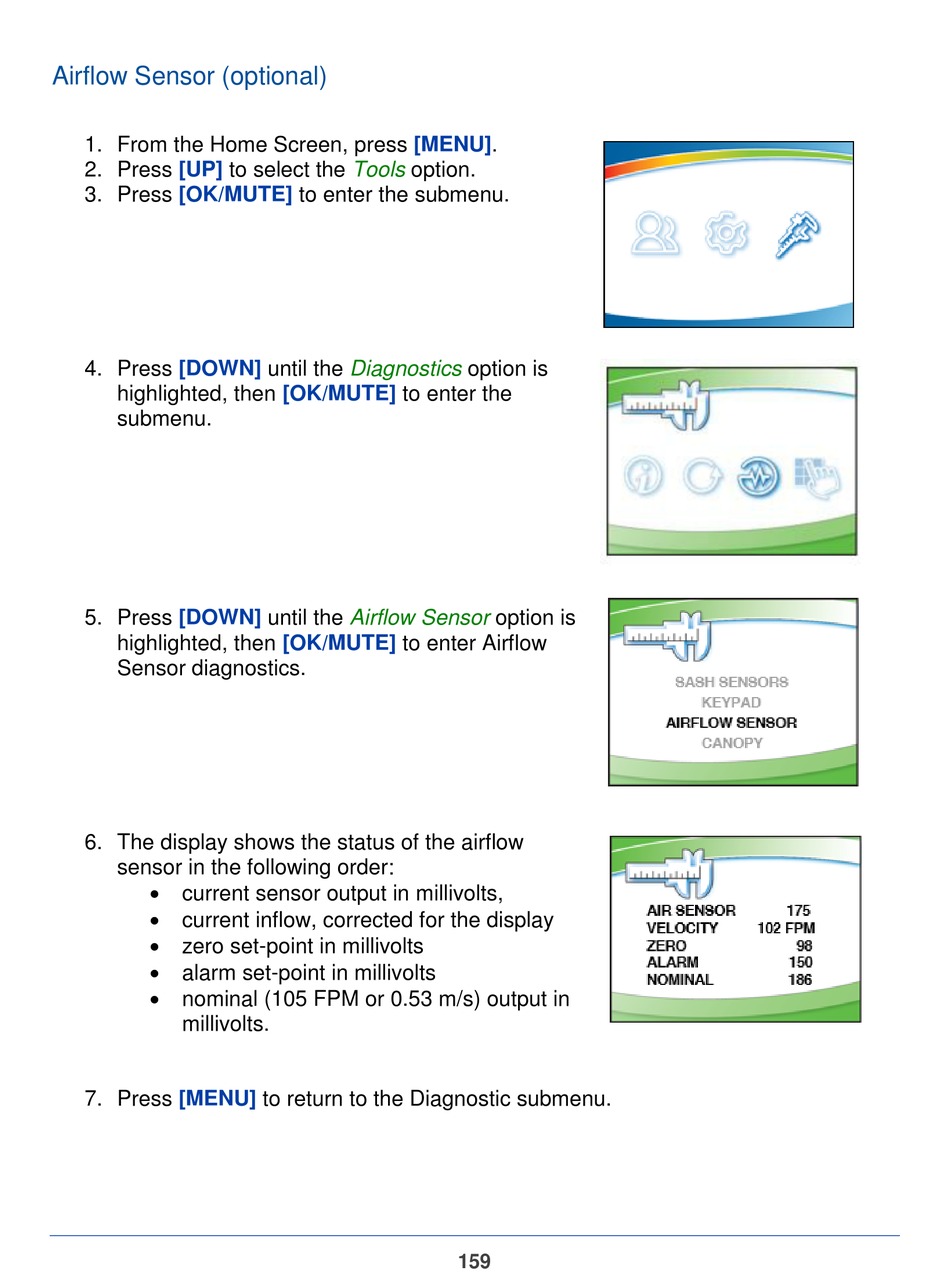

Airflow Sensor (optional)

1. From the Home Screen, press [MENU].
2. Press [UP] to select the
3. Press [OK/MUTE]
4. Press [DOWN]
highlighted, then
submenu.
5. Press [DOWN]
highlighted, then
Sensor diagnostics.
6. The display shows the status of the airflow
sensor in the following order:
 current sensor output in millivolts,
 current inflow, corrected for the display
 zero set-point in millivolts
 alarm set-point in millivolts
 nominal (105 FPM or 0.53 m/s) output in
millivolts.
7. Press [MENU]
Tools option.
to enter the submenu.
until the Diagnostics
[OK/MUTE] to enter the
until the Airflow Sensor
[OK/MUTE] to enter Airflow
to return to the Diagnostic submenu.
option is
option is
159
