Labconco Logic+ A2 Technical Manual page 111

Exhaust
Filter Bolts

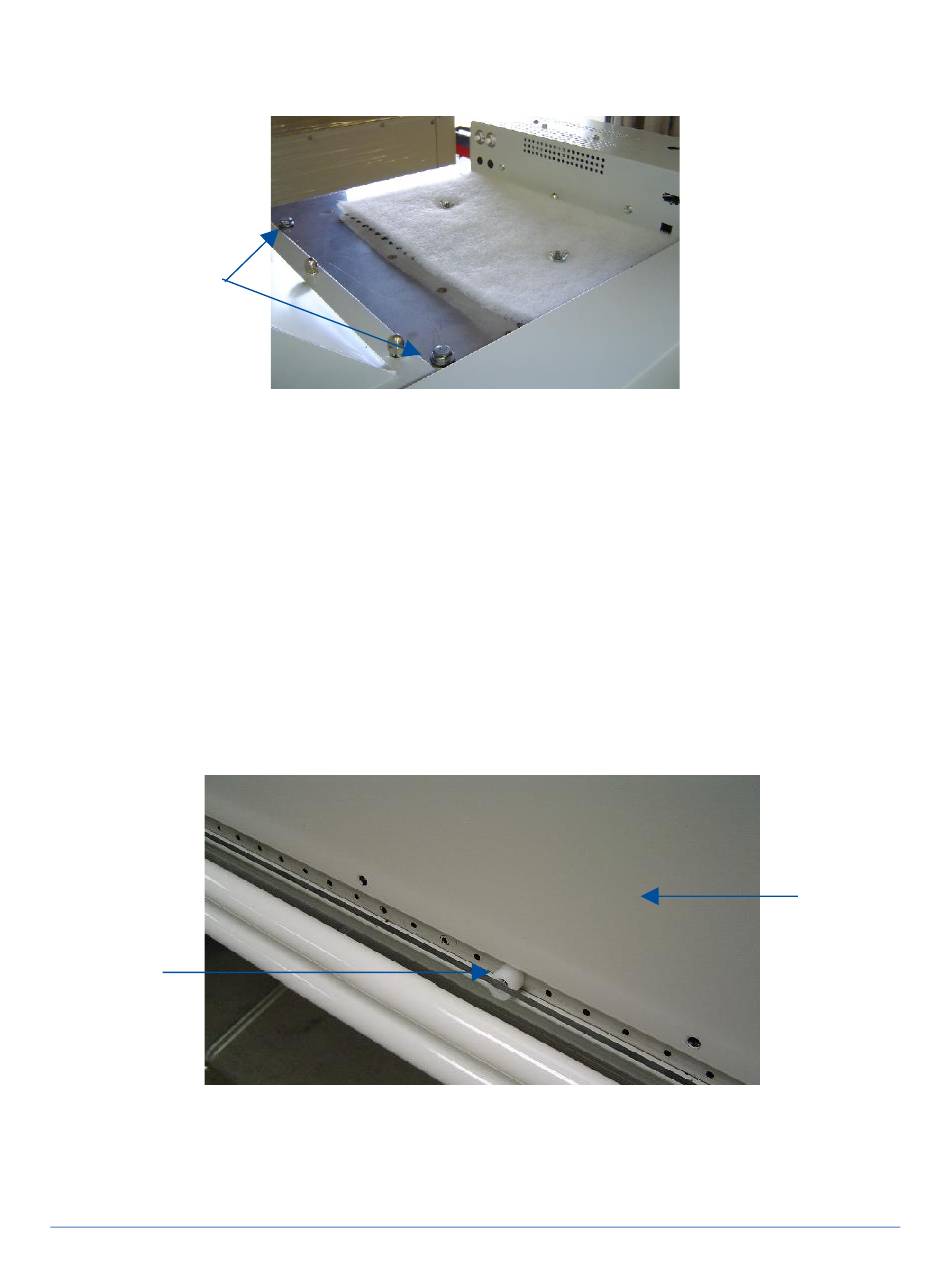

6. To remove the supply HEPA filter, loosen all of the Phillips screws around the
perimeter of the blower/plenum cover. Remove all screws except two along the
top edge of the cover. This will support the cover. The sash stop bracket is held
in place by two of the blower/plenum cover screws. Remove this bracket.
7. Remove the last two screws. The blower/plenum cover will rest on the center
sash support (Figure 12-18) after the final screws are removed. Gently break the
gasket seal on the cover by starting in one corner. Use a flat screwdriver if
necessary, taking care not to damage the gasket or panel by prying too hard in
one area. Once the gasket seal is free, slide the cover to the left or right, and
bend it slightly to free one end by getting it past the corner post. Lift the
blower/plenum cover off.
Center Sash
Support
Figure 12-17
Figure 12-18
111
Blower Plenum
Cover
