Resetting a Circuit Breaker

Should an over current situation arise during normal operation, the circuit breakers
located on the left side of the electronics module will trip, protecting the cabinet from
damage.
The biosafety cabinet offers internal outlets to power small devices inside the cabinet.
The internal outlets are protected by one circuit breaker (two circuit breakers on 230v
models), and the cabinet electronics are protected by a different circuit breaker (two
different circuit breakers on 230v models). This allows the cabinet to continue to
operate, providing protection to the product and user, should a device connected to an
internal outlet experience an over current situation.
If the internal outlets do not have power when the
Screen, reset the appropriate circuit breaker(s) as shown in Figure 13-2. The outlet
circuit breaker(s) are in the Rear Position(s).
If the cabinet does not have power when the System Reset Switch (Figure 13-2) is on,
reset the appropriate circuit breaker(s) as shown in Figure 13-2. The cabinet circuit
breaker(s) are in the Front Position(s).
The thrown circuit breaker will be easy to identify, as the white barrel will be extended
further than the other circuit breaker(s). To reset, simply push it in.
Outlet
Circuit Breaker
(Rear Position)
Outlet
Cabinet Circuit Breaker
(Front Position)
System Reset Switch
142
icon is displayed on the Home

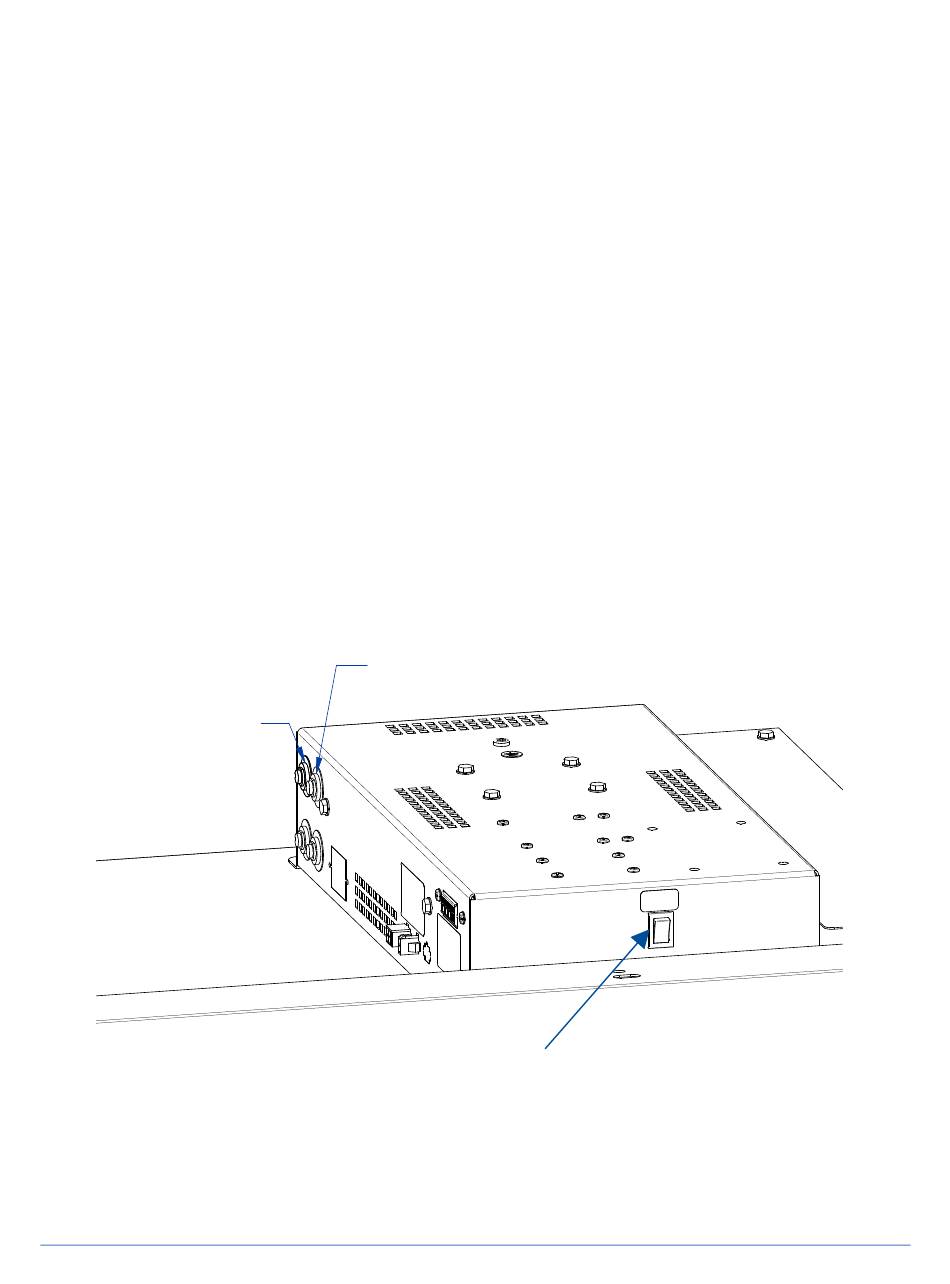

Figure 13-2
