Attach Prefilter(S) To Towel Catch - Aluminum Washable - Labconco Logic+ A2 Technical Manual

2. Install two spring clips (item 2 in Figure 21-2) per prefilter. Install the spring clips
from the back (opposite side from the prefilter) side of the towel catch. Position
the spring clips with the long flange (see Figure 21-2) around the bottom of the
towel catch. Next, carefully clip each spring clip over the top of the towel catch to
engage the top edge of the filter frame. Each spring clip should capture the top
and bottom of the filter frame. Make sure each spring clip is aligned with the
spring clip recess (Figure 21-2) in the towel catch.
Note: Only one prefilter and two spring clips are used on 3-ft models.
Attach Prefilter(s) to Towel Catch – Aluminum Washable
1. Set the prefilter(s) (item 1 in Figure 21-2) into the towel catch so they are located
between the top and bottom long flanges on the towel catch. See Figure 21-3.
2. Install two spring clips (item 2 in Figure 21-3) per prefilter. Install the spring clips
from the front (prefilter) side of the towel catch. Position the spring clips with the
long flange (see Figure 21-3) around the bottom of the towel catch. Next,
carefully clip each spring clip over the top of the prefilter to engage over the top
edge of the towel catch. Make sure each spring clip is aligned with the spring
clip recess (Figure 21-3) in the towel catch.
Note: Only one prefilter and two spring clips are used on 3-ft models.
189

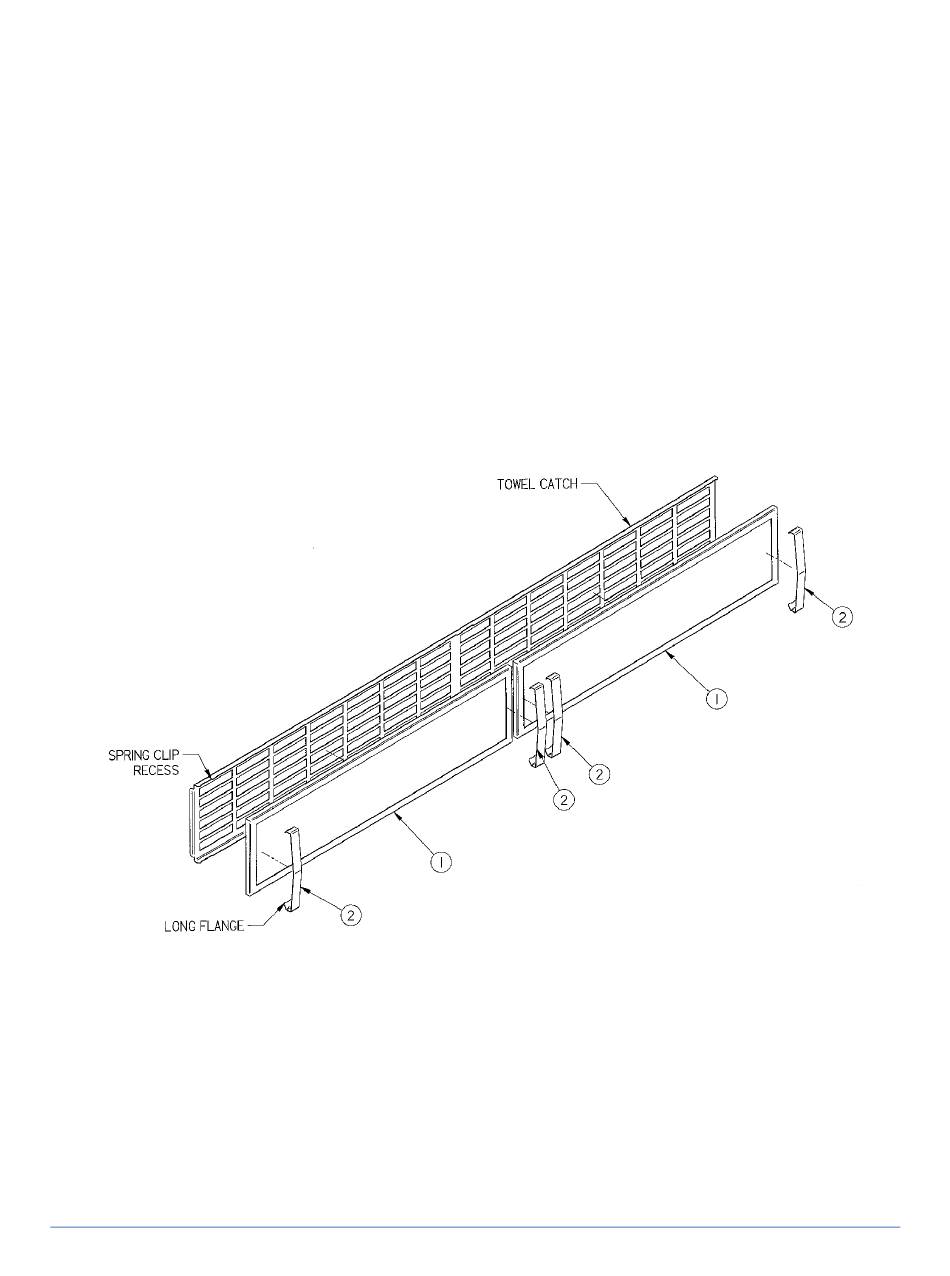

Figure 21-3
