Labconco Logic+ A2 Technical Manual page 118

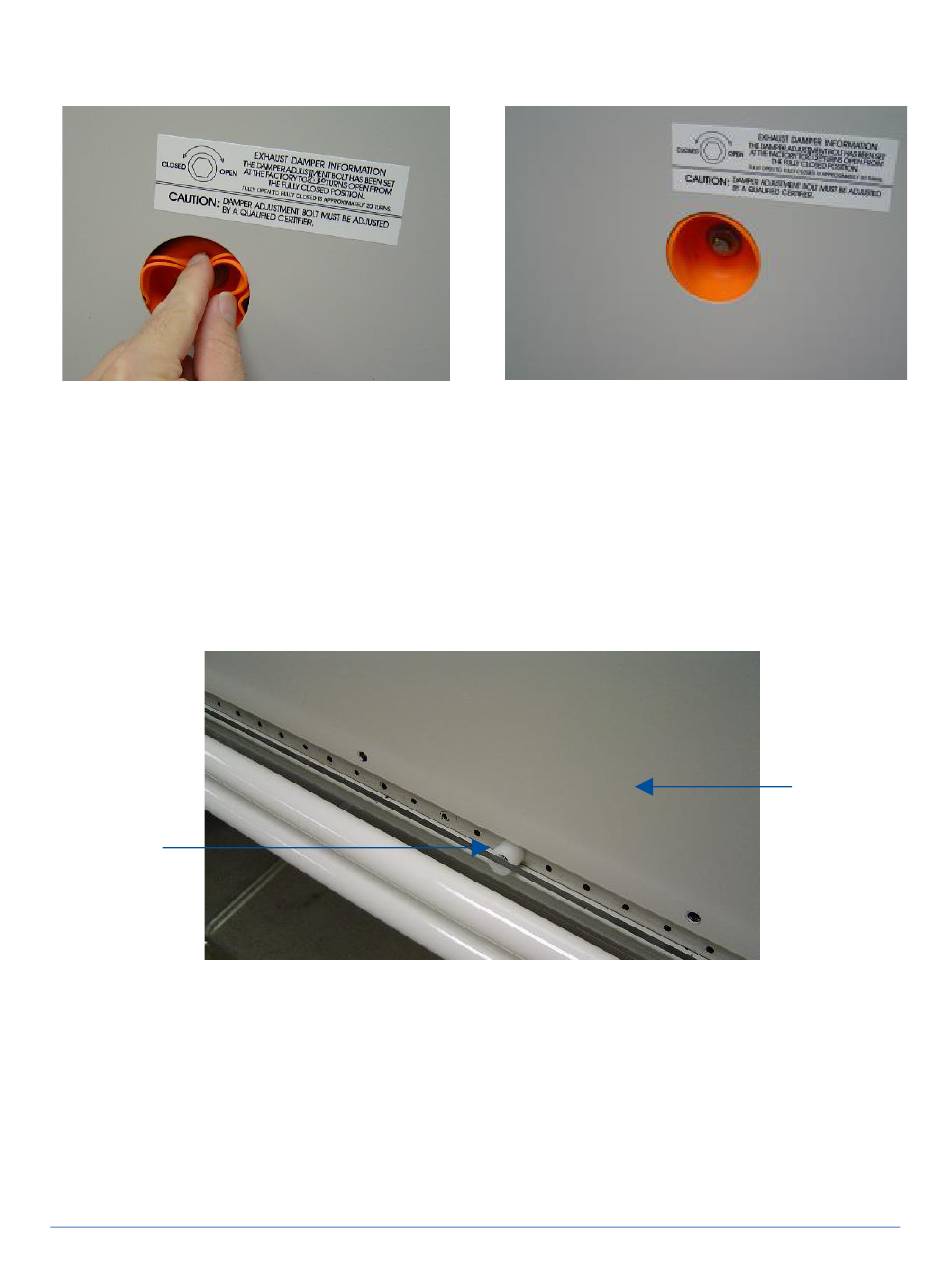

A2 ONLY - Figure 12-26
5. Remove the last two screws. The blower/plenum cover will rest on the center
sash support (Figure 12-28) after the final screws are removed. Gently break the
gasket seal on the cover by starting in one corner. Use a flat screwdriver if
necessary, taking care not to damage the gasket or panel by prying too hard in
one area. Once the gasket seal is free, slide the cover to the left or right, and
bend it slightly to free one end by getting it past the corner post. Lift the
blower/plenum cover off.
Center Sash
Support
6. Locate the blower/motor assembly, it will be on the right side of the compartment,
and resting atop the large, metal plenum.
A2 ONLY - Figure 12-27
Figure 12-28
118
Blower Plenum
Cover
