7. Slide the exhaust HEPA filter straight out of the biosafety cabinet.
8. To remove the supply HEPA filter, the exhaust HEPA filter must be removed first.
Using a 1/2-inch socket, tighten the 3 plenum lift bolts (turning each bolt
clockwise will raise the plenum) until the plenum raises 1/2-inch (13 mm). See
Figure 12-11 for reference.
Lift Bolts
Plenum
Retainer Brackets (3)
9. Remove the 3 supply HEPA filter retainer brackets (see Figure 12-11).
10. Lift up on one corner of the supply HEPA filter to break the seal between the filter
gasket and the filter shelf. Once the filter is free, slide it straight out.
Reinstallation Notes:
1. When reinstalling the supply HEPA filter, to lower the plenum onto the supply
HEPA, turn the 3 plenum lift bolts counter-clockwise. Turn each bolt part way,
working in a pattern amongst the 3 bolts to lower the plenum evenly.
2. When downward pressure begins to be applied onto the supply HEPA (and
upward pressure on the exhaust HEPA when it is reinstalled separately), the
brackets holding the bolts you are tightening will flex slightly. Only tighten until
the filters are secure and the filter gasket has 50% compression. Do not
overtighten the bolts.
3. After reinstalling the blower/plenum cover, be sure to replace the orange seal on
the blower/plenum cover by snapping or flexing it onto the hole in the cover.

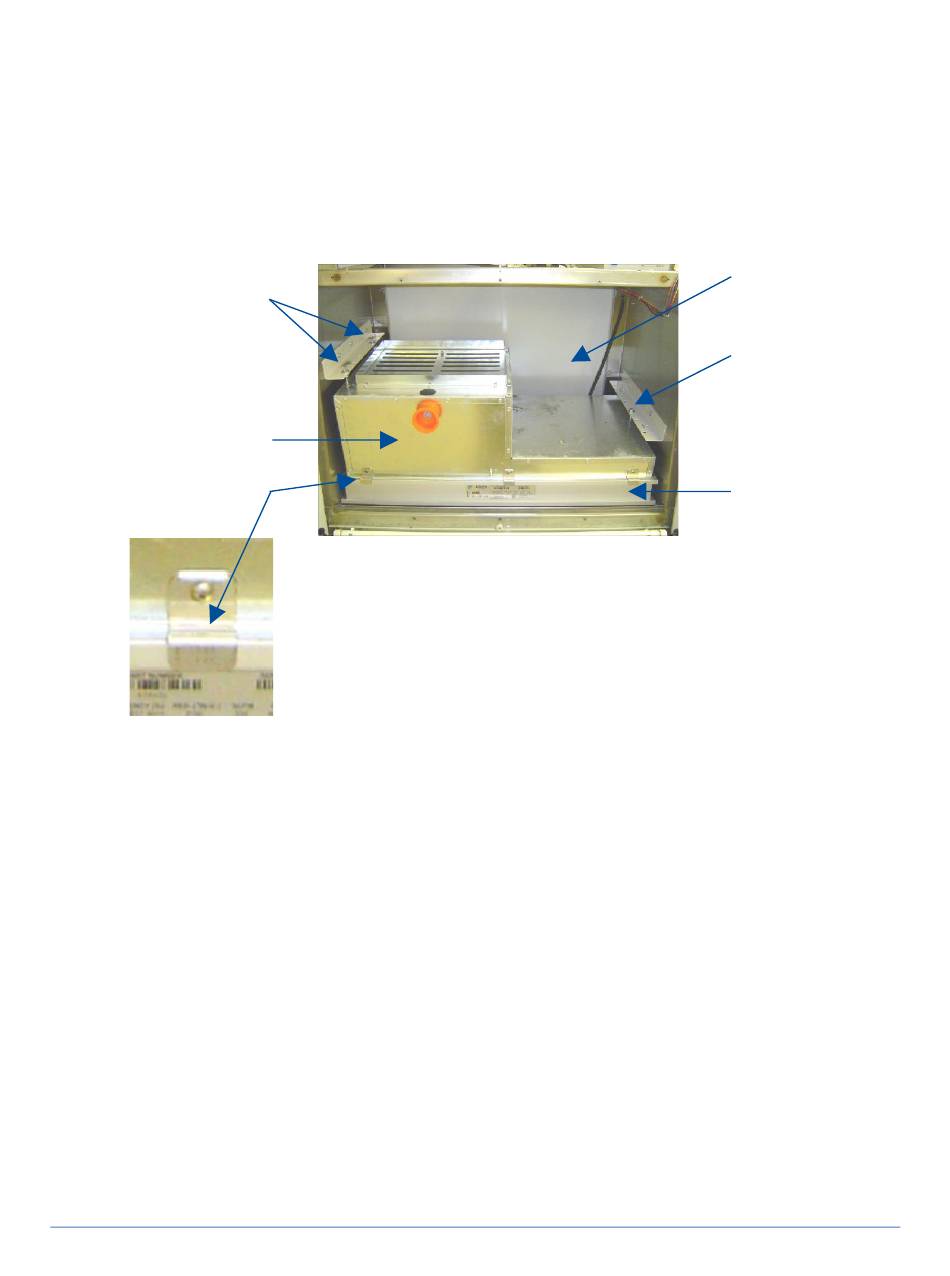

Figure 12-11
106
Blower here
(removed for clarity)
Lift Bolt
Supply HEPA
