Edwards GXS Series Instruction Manual

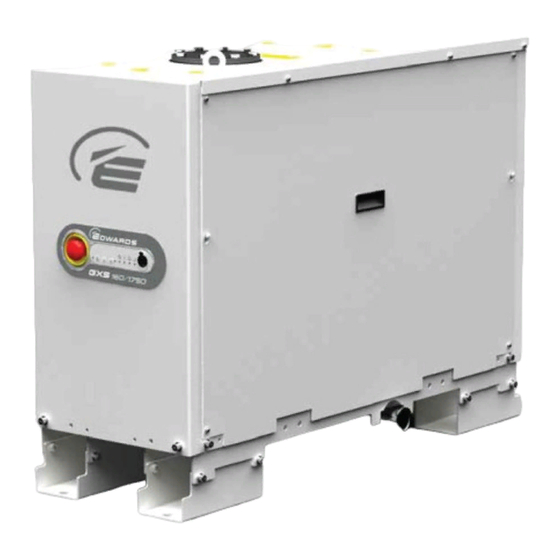

Dry screw vacuum pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Dry screw vacuum pump
GXS Series
INSTRUCTION MANUAL
edwardsvacuum.com
M58800880_H
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Edwards GXS Series

Summary of Contents for Edwards GXS Series

  • Page 1 Dry screw vacuum pump GXS Series INSTRUCTION MANUAL edwardsvacuum.com M58800880_H Original instructions...
  • Page 2 GXS/CXS Installation recommendations P60102675 Trademark credit Edwards and the Edwards logo are trademarks of Edwards Limited, Innovation Drive, Burgess Hill, West Sussex RH15 9TW. Han® is a registered trademark of Harting Electric GmbH EtherCon® is a registered trademark of Neutrik® AG Fomblin®...
  • Page 3 CE Declaration of Conformity Edwards Ltd Innovation Drive Burgess Hill West Sussex RH15 9TW The following products Low Volt High Volt High Volt Systems Systems Systems (200-230V) (380-460V) (380-460V) GXS 160 GS2120yz0000 GS2150yz0000 9773512590 GXS 160/1750 GS5120yz0000 GS5150yz0000 9773512584 GXS 250...
  • Page 4 DDITIONAL EGISLATION AND OMPLIANCE NFORMATION EU EMC D IRECTIVE LASS EQUIPMENT Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. EU R HS D IRECTIVE ATERIAL XEMPTION NFORMATION This product is compliant with the following Annex III Exemptions:...
  • Page 5 材料成分声明 China Material Content Declaration 有害物质 Hazardous Substances 部件名称 六价铬 多溴联苯 多溴二苯醚 Part name 铅 汞 镉 Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr VI) (PBB) (PBDE) 机壳 Enclosure 电机（泵和机械增压 泵） Motors (pump and mechanical booster) 泵和增压泵...
  • Page 6 This page has been intentionally left blank.
  • Page 7 Numbering matrix Applications G Industrial Installation Pump Mechanism 0 = Side Exhaust and Skids S Screw 5 = Rear Exhaust and Castors Pumps/ Boosters Pump purges 2= 160 0 = Light duty (SSP + HVP) 5 = 160/1750 1 = Light duty (SSP + HVP + EES)* 7 = 250 3 = Medium duty (SSP + Inlet + GB + Exh PM + HVP) B = 250/2600...

  • Page 8: Table Of Contents

    Contents 1. Introduction..........11 1.1 Scope and definitions.
  • Page 9 3.15.2 Ethernet connection........53 4.
  • Page 10 7.4 Spares............79 8.
  • Page 11 9.5 How to set up the PDT display........133 9.5.1 Setting the status screen to automatically scroll.
  • Page 12 9.12 How to set up the Ethernet port........151 9.12.1 Using SIM protocol through Ethernet.
  • Page 13 List of Figures Figure 1: Front panel controls..........12 Figure 2: Front view of the pumping system with the side exhaust and skids fitted.
  • Page 14 Figure 39: GXS450/2600 installation drawing (Sheet 4)......103 Figure 40: GXS450/4200 installation drawing (Sheet 1)......104 Figure 41: GXS450/4200 installation drawing (Sheet 2).

  • Page 15: Introduction

    M58800880_H - Introduction 1. Introduction 1.1 Scope and definitions This manual provides the installation, operation and maintenance instructions for the GXS dry pumping system. The pump must be used as specified in this manual. Read this manual before the installation and operation of the pump. The units used throughout this manual conform to the SI international system of units of measurement.

  • Page 16: Active Utility Control/Standby

    M58800880_H - Introduction Only one of these can have control of the dry pumping system at any one time. That is, once one of these has control of the dry pumping system, the control requests from the others are denied. Control must be released by one module before it can be taken by a different module.

  • Page 17: Figure 2 Front View Of The Pumping System With The Side Exhaust And Skids Fitted

    M58800880_H - Introduction Figure 2 Front view of the pumping system with the side exhaust and skids fitted 1. Front panel controls 1. Front panel controls 2. Floor mounting plate (4 off) 2. Floor mounting plate (4 off) 3. Exhaust gas outlet connection 3.

  • Page 18: Figure 3: The Controls/Connectors On The Rear Of The Pump (System With Rear Exhaust And Castors/Levelling Feet Fitted)

    M58800880_H - Introduction Figure 3 The controls/connectors on the rear of the pump (system with rear exhaust and castors/ levelling feet fitted) 1. Ethernet LAN LED (green) 1. Ethernet LAN LED (green) 2. Ethernet link LED (yellow) 2. Ethernet link LED (yellow) 3.

  • Page 19: Technical Data

    M58800880_H - Technical data 2. Technical data 2.1 General technical data Table 1 General technical data Item Description Rating Units Intended use Indoor Ambient temperature range: 5 to 40 °C Operating -45 to 55 °C Storage Operating conditions 80% for temperatures up to 31 °C Maximum relative humidity: decreasing linearly to 50% relative humidity at 40 °C...
  • Page 20 M58800880_H - Technical data Table 2 General technical data Characteristics Noise level (at Sustained Body dimensions Mass Typical Initial force to Pump inlet Exhaust Pump ultimate with force to Lubricant length x width x (excluding vibration level push the flange a piped push the volume...

  • Page 21: Performance Data

    M58800880_H - Technical data 2.2 Performance data Table 3 Performance data Characteristics Pump Typical peak Ultimate (shaft seal Maximum continuous pumping speed purge only) inlet pressure Units mbar mbar GXS160 1000 < 1 x 10 GXS160/1750 1160 1000 < 1 x 10 GXS250 1000 <...

  • Page 22: Purge Data

    M58800880_H - Technical data Figure 4 Levelling foot loads 2.4 Purge data Table 5 Purge data Characteristics Rating Units Purge gas supply pressure range 2.5 - 6.9 bar gauge 36 - 100 psi gauge Purge gas supply quality ISO 8573 - Class 2 Purge gas inlet connection 1/4 inch tube fitting Page 18...
  • Page 23 M58800880_H - Technical data Table 6 Gas module types and flows Gas flows (slm) Manually- Total Gas module type Description Cycle Shaft Inlet adjusted Additional Exhaust flow seal purge gas ballast* purge purge ballast Green mode Light duty (All GXS Shaft seal only systems)†...

  • Page 24: Electrical Data

    M58800880_H - Technical data 2.5 Electrical data Table 7 Electrical data Characteristics GXS160 GXS160/1750 GXS250 GXS250/2600 GXS450 Units Dry pump motor rating Mechanical booster motor rating Current rating (200 - 230 V systems) Current rating (380 - 460 V systems) Recommended branch circuit protection UL (200 - 230 V systems)
  • Page 25 M58800880_H - Technical data GXS450/ GXS450/ GXS750/ GXS750/ Characteristics GXS750 Units 2600 4200 2600 4200 Dry pump motor rating Mechanical booster motor rating Current rating (200 - 230 V systems) Current rating (380 - 460 V systems) Recommended branch circuit protection UL (200 - 230 V systems) Recommended branch circuit protection IEC...
  • Page 26 M58800880_H - Technical data Table 8 General electrical data Description Rating Units Supply voltage 3-phase Either 200 - 230 or 380 - 460 (see V a.c. rating plate) Frequency 50/60 Wiring configuration 3 wire plus Earth (ground) Voltage tolerance range ±...
  • Page 27 M58800880_H - Technical data Table 9 Electrical connections Mating connector description/external Internal supply Description supply rating rating Mains connection Refer to Table: Electrical data for the mains connector fitted to each variant. Connector is either: Harting Han® K4/4-F finger safe 09 38 008 2703, 6-16 mm fine stranded wire (VDE 0295 class 5, refer to...
  • Page 28 M58800880_H - Technical data Mating connector description/external Internal supply Description supply rating rating Internal emergency stop switch Pin 3 - common, Pin 4 - normally open 30 V a.c. 1 A, 60 V d.c. 0.55 A Comms 24 V supply 24 V d.c.

  • Page 29: Cooling-Water Data

    M58800880_H - Technical data 2.6 Cooling-water data Table 11 Water cooling system data Description Rating Units barg Maximum supply pressure psig Maximum allowable system differential pressure Refer to Table: Water consumption Minimum required pressure data (GXS160/250/1750/2600) differential across supply and Table: Water consumption data return (GXS750/2600/4200)
  • Page 30 M58800880_H - Technical data Minimum required pressure differential across Minimum flow rate required * supply and return† Pump I/min GXS250/2600 * All GXS dry pumping systems have a valve cooling system which will cause the coolant flow rate to vary in response to pump load conditions. Table: Water consumption data (GXS160/250/1750/2600) ‑...

  • Page 31: Dp Clean High Flow Purge/Solvent Flush Option

    M58800880_H - Technical data Table 16 Water consumption data (GXS750/2600/4200) Water Temperature (°C) Ambient (°C) 25 SLM 20 SLM 15 SLM 2 bar dP 1.3 bar dP 0.75 bar dP 20 SLM 20 SLM 15 SLM 1.3 bar dP 1.3 bar dP 0.75 bar dP 15 SLM 15 SLM...

  • Page 32: Installation

    A suitably trained and supervised technician must install the dry pumping system. Users can be trained by us to conduct the tasks described in this manual, contact your local service centre or Edwards for more information. ▪ Do not remove the temporary cover or blanking plate from the dry pumping system inlet and exhaust until ready to connect the dry pumping system to the vacuum or exhaust extraction system.

  • Page 33: Locate The Dry Pumping System

    M58800880_H - Installation Vacuum Pump and Vacuum Systems before pumping hazardous materials. This publication is available on request: contact us or the supplier. ▪ Route and secure cables, hoses and pipework during installation to avoid the possible risk of trips. ▪...

  • Page 34: Dry Pumping Systems With Optional Castors

    M58800880_H - Installation 3.1.1 Dry pumping systems with optional castors WARNING: Dry pumping systems fitted with castors should only be wheeled short distances over flat surfaces. If the floor surface is uneven or has obstacles, the dry pumping system should be lifted with suitable lifting equipment. Dry pumping systems are supplied with an option of skids or castors.

  • Page 35: Lubrication

    M58800880_H - Installation ▪ Dry pumping systems with skids are provided with four off mounting holes in the floor mounting plates as detailed in the installation drawings. ▪ All dry pumping systems can be secured by fitting the bolts or studs (not supplied) through the mounting holes in either the mounting plates or seismic restraints.
  • Page 36 M58800880_H - Installation CAUTION: The dry pumping systems have a maximum continuous exhaust line pressure limit. Operation above the limit may damage the pumping mechanism. The medium duty dry pumping systems have an exhaust pressure sensor which will initiate warnings and alarms when the pump is operated for at least 20 seconds above the limits given in Table: Pump protection sensors.
  • Page 37 M58800880_H - Installation than these limits, consider using an adaptor on the pump exhaust and a larger diameter pipeline. ▪ For pumps running on dusty processes, we recommend that the exhaust line is cleaned regularly as part of routine maintenance. Accumulation of dust in the exhaust line can reduce conductance and therefore increase exhaust pressure which may damage the pump.

  • Page 38: Connect The Purge Gas Supply

    M58800880_H - Installation Figure 5 Connecting the pump inlet 1. Undo the screws 1. Undo the screws 2. Remove cover 2. Remove cover 3. Do not use trapped O‑ring or centering 3. Do not use trapped O‑ring or centering ring ring Flange Half claw clamp part...

  • Page 39: Flammable/Pyrophoric Materials

    M58800880_H - Installation connection (at the standard pressure switch or the option flow meter). Nitrogen and clean dry air are suitable purge gases for the dry pumping systems. To use a different purge gas, please contact us. Check visually that the dial pressure gauge and rotameter (if installed) is not damaged when installing the dry pumping system.

  • Page 40: Gas Purges

    M58800880_H - Installation 3.4.2 Gas purges WARNING: If inert gas purges to dilute dangerous gases to a safe level are to be used, ensure that the pump is shut down if inert gas supply fails. Switch on the inert gas purge to remove air from the pump and the exhaust pipeline before the process starts.

  • Page 41: Leak Test The Dry Pumping System

    M58800880_H - Installation 3.5 Leak test the dry pumping system Figure 6 Interspool connections on the pump/booster combination systems Part identification 1/4 inch BSP inlet port (available on dry pumping systems with light duty gas module only) 3/8 inch BSP port Interspool 3/8 inch BSP port WARNING:...
  • Page 42 M58800880_H - Installation WARNING: Risk of electric shock. Isolate the electrical supply before disconnecting the electrical supply cable from the dry pumping system. WARNING: Ensure that the dry pumping system and the electrical supply cable are suitably protected against earth (ground) faults and that the earth (ground) conductor of the electrical supply cable is longer than the phase conductors in the connector.

  • Page 43: Mains Supply Cable Connection

    M58800880_H - Installation To use the dry pumping system with a power supply in a different voltage range to that specified on the rating plate, contact us. The dry pumping system is protected from motor overloads and short circuits by solid‑state electronics.
  • Page 44 M58800880_H - Installation Note: The connector kit for the Han® K 4/4 contains a choice of 5 different rubber inserts that are suitable for the cables with various outside diameters. Select the most suitable rubber insert for the size of cable that is to be used. Pass the cable through the cable gland and hood.
  • Page 45 M58800880_H - Installation ▪ Push back both the levers (item 4) to release the protective cover. ▪ Remove the protective cover and fit the electrical supply cable. ▪ Pull both levers back towards the user to lock the electrical supply cable connector in place.

  • Page 46: Figure 7 The Harting Han® K 4/4 Cable-Mounted Connector

    M58800880_H - Installation Figure 7 The Harting Han® K 4/4 cable-mounted connector 1. Low volt pin configuration 1. Low volt pin configuration 2. High volt pin configuration 2. High volt pin configuration A. Mounting screw A. Mounting screw B. Coding pin B.

  • Page 47: Customer Connection Kit, Combination Low Volts Gxs750

    M58800880_H - Installation Figure 8 The Harting Han® 100 A axial screw module cable-mounted connector 1. Low volt pin configuration 1. Low volt pin configuration 2. High volt pin configuration 2. High volt pin configuration A. Coding pin A. Coding pin B.

  • Page 48: Figure 9 Customer Connection Kit - Combination Low Volts Gxs750

    M58800880_H - Installation Figure 9 Customer connection kit - combination low volts GXS750 A. Phase 3 A. Phase 3 B. Phase 2 B. Phase 2 C. Phase 1 C. Phase 1 1. 24 Frame hood 6 module A-F 1. 24 Frame hood 6 module A-F 2.

  • Page 49: Connect An Additional Rf Earth (Ground) (Optional)

    M58800880_H - Installation Figure 10 Electrical connector locking mechanism for the GXS160, GXS250 and GXS450 systems 1. Electrical connector locking mechanism 1. Electrical connector locking mechanism 2. Pivot screw 2. Pivot screw 3. Locking screw 3. Locking screw 4. Lever (2 off) 4.

  • Page 50: Connect To The Emergency Stop Circuit

    M58800880_H - Installation Figure: The controls/connectors on the rear of the pump (system with rear exhaust and castors/levelling feet fitted), item 19. 3.8 Connect to the emergency stop circuit Note: If not connecting to own control equipment, the external EMS link plug supplied to the EMS connection on the rear of the dry pumping system must be fitted.

  • Page 51: Figure 12 Remove The Plastic Plugs From The Water Fittings

    M58800880_H - Installation 2. For minimum water consumption, regulate the cooling water flow to the dry pumping system. The dry pumping system is supplied with blue plastic dust caps fitted over the outside of the water inlet and outlet fittings and with red plastic plugs fitted inside these water fittings.

  • Page 52: Accessories

    M58800880_H - Installation Switch on the electrical power to the dry pumping system. All the water valves in the pump cooling system will automatically open for a period of around 10 seconds. Adjust the water flow rate so that it meets the requirements given in Table: Water consumption data (GXS160/250/1750/2600).

  • Page 53: Commission The Dry Pumping System

    M58800880_H - Installation 3.11 Commission the dry pumping system WARNING: During some application cycles, the dry pumping system may exceed the OSHA 1910.95 Occupational Noise Exposure Limits, the EU noise directive 2003/10/EC or other regional noise limits dependent upon the process, duty cycle, installation or environment in which the dry pumping system is being operated.

  • Page 54: Install Additional Safety Equipment

    M58800880_H - Installation 3.12 Install additional safety equipment WARNING: If the control system needs to know the total flow rate of purge gas to the dry pumping system for safety reasons, install suitable measurement equipment in the purge gas supply pipeline. WARNING: If the gas purges are used to dilute dangerous gases to a safe level, ensure that the dry pumping system shuts down if the purge gas supply to the dry pumping system...

  • Page 55: High Flow Purge And Solvent Flush Set Up

    M58800880_H - Installation An access code is needed to enter the FIT ACCESSORY menu. Enter 538 when prompted. From the FIT ACCESSORY menu, scroll down to GAS BALLAST and then select ENTER. Scroll down to 'Fitted' and press ENTER to select. The additional gas ballast is now enabled.

  • Page 56: Figure 13 Dp Clean Assembly For The Pump Only Systems

    M58800880_H - Installation The pneumatic regulator is pre-set to 50 ± 5 psig in the factory and does not need to be adjusted. The pneumatic regulator is shown in Figure: DP clean assembly for the pump only systems, item 5 for the pump‑only systems. For pump and booster combination systems, the regulator is contained within the pump enclosure.

  • Page 57: Connecting The Dry Pumping System For Serial Communications

    M58800880_H - Installation 3.15 Connecting the dry pumping system for serial communications 3.15.1 Serial port connection The dry pumping systems have two 5-way XLR sockets that can be used to connect the pump for the serial communications. The user can connect by the PDT connector on the front of the pump, (refer to Figure: Front panel controls item 11) and by the system...

  • Page 58: Operation

    M58800880_H - Operation 4. Operation WARNING: Do not operate the dry pumping system with the lifting eyebolts fitted or with any enclosure panels removed or damaged. Do not touch any parts of the pump(s) when the dry pumping system is on. Surfaces of the pumps are very hot and can cause injury to people.

  • Page 59: Mcm Microtim Operation

    M58800880_H - Operation 4.1.1 MCM MicroTIM operation If the dry pumping system is to be operated by the user's control equipment by the MCM MicroTIM, ensure that no other devices have control of the dry pumping system. If another device has the control, it must be released before the pump can be started by the MCM MicroTIM.

  • Page 60: Status Indicators

    M58800880_H - Operation (refer to Pump display terminal on page 120). The PDT is available as an accessory. Refer Accessories on page 77. Table 18 Start, warm-up and on-process sequences Sequence Description Shaft Seal Purge (SSP) valve is opened. Start pump Pump runs.

  • Page 61: Determining The Pump Status

    M58800880_H - Operation Indicator Location Meaning Name colour Green mode/ Green Front panel (item 10) Illuminates continuously when the Standby pump is in Green mode/standby mode. Flashes to indicate that the pump is warming up. Refer to Determining the pump status on page 57.

  • Page 62: Pumping Argon

    M58800880_H - Operation Refer to Figure: Front panel controls. To enable the Green mode/standby mode when the pump is running and warmed up, press and hold the start button (item 3) for 5 seconds. The pump green mode LED (item 10) will illuminate continuously. The pump running LED (item 2) will flash.

  • Page 63: Manual Shut Down

    M58800880_H - Operation Evacuating the chambers back‑filled with Argon ▪ For small chambers less than 2 m (70 cft) or if chamber pressure reaches 20 mbar in under 2 minutes, the chamber evacuation is short enough not to cause a problem when pumping at full speed.

  • Page 64: Microtim Operation

    M58800880_H - Operation In Fast shut down mode, no gas purges are introduced and the pump stops quickly. This method of shut down is not recommended. In Auto shut down mode, a purge gas cycle is introduced and the pump shuts down gradually over a time period.

  • Page 65: Front Panel Control Operation

    M58800880_H - Operation 4.5.3 Front panel control operation Press and hold the stop button (Figure: Front panel controls, item 4) for 5 seconds to stop the pump in Auto shut down mode (recommended). Repeat within 10 seconds to stop the pump in the Fast shut down mode. The running LED (Figure: Front panel controls, item 2) flashes while the pump is slowing down and will then turn off when the pump has shut down.

  • Page 66: Emergency Stop

    M58800880_H - Operation Refer to Automatic shut down on page 61 for information about alarms and automatic shutdown conditions. If the dry pumping system has an unplanned shut down, ensure that the cause of the shutdown is identified and rectified before restarting. If in doubt, contact us. Note: ‑...

  • Page 67: Dry Pump Clean

    M58800880_H - Operation restarted. If the alarm was caused by high pump temperatures, refer to Unplanned shut down and alarms on page 61. Restart the dry pumping system as described in Start up on page 54. 4.10 Dry pump clean The high flow purge and the solvent flush kit is available as a factory‑fit option to clean the pump mechanism on applications where large quantities of dust and sticky deposits are encountered.

  • Page 68: Solvent Flush

    M58800880_H - Operation To stop the high flow purge process while it is running, enter the DP clean menu again using the PDT and select 'DP Clean off'. The DP clean procedure can be configured to suit the user's application. Refer to How to set up the DP clean on page 141.

  • Page 69: Pump Speed Control And Pid

    M58800880_H - Operation Depending on the pump size, it typically takes around 4‑7 minutes to draw through the 5 litres of the solvent solution (larger pumps draw the liquid through more quickly than the smaller pumps). Once the full 5 litres of the solvent solution have been drawn through, put the free end of the solvent suction pipe right down to the bottom of the container holding the 2.5 litres of water.
  • Page 70 M58800880_H - Operation continually adjusts the speed of the pump so that a user‑determined pressure is maintained at the chosen pressure sensor. For more information about enabling and setting up the PID controller, refer to How to use the PID pressure control on page 148.

  • Page 71: Maintenance

    M58800880_H - Maintenance 5. Maintenance WARNING: Only personnel specially trained to perform electrical maintenance should attempt troubleshooting inside the electrical enclosures. These enclosures contain hazardous voltages and are not operator areas. WARNING: Leak test the dry pumping system after maintenance and seal any leaks found to prevent leakage of dangerous substances out of and leakage of air into the dry pumping system.
  • Page 72 M58800880_H - Maintenance ▪ Ensure that the maintenance technician is familiar with the safety procedures which relate to the products pumped. ▪ Allow the pumps to cool to a safe temperature before fitting lifting eye bolts or starting maintenance work. ▪...

  • Page 73: Relocate The Dry Pumping System For Maintenance

    M58800880_H - Maintenance 5.2 Relocate the dry pumping system for maintenance WARNING: The substances that accumulate in the exhaust pipe, elbow and check valve can be dangerous. Do not allow these substances to come into contact with skin or eyes. Do not inhale vapours from these substances.

  • Page 74: Draining The Cooling Water

    M58800880_H - Maintenance For dry pumping systems with castors, adjust the levelling feet so that the dry pumping system rests on the castors. Move the dry pumping system to the location where maintenance will be carried out. After maintenance is complete, re-install the dry pumping system as described in Installation on page 28.

  • Page 75: Checking The Oil Levels And Refilling

    M58800880_H - Maintenance The following maintenance can be carried out on the dry pumping system between the overhauls. Contact us for the details and training: ▪ Check the oil level. Refer to Checking the oil levels and refilling on page 71. ▪...

  • Page 76: Inspect The Connections, Pipelines, Cables And Fittings

    M58800880_H - Maintenance Keep adding oil until the oil level is in line with the MAX indicator. Refit the oil fill plug. Refit all dry pumping system side panels. Figure 14 Location of the oil sight glass and the fill plug on end cover 1.

  • Page 77: Overhaul

    M58800880_H - Maintenance Check that all the connections are secure, tighten any loose connections. Inspect all cables, pipelines, hoses and connections and check that they are not corroded or damaged and do not leak, repair or replace any pipelines, hoses and connections that are corroded or damaged, or which leak.

  • Page 78: Transportation, Storage And Disposal

    M58800880_H - Transportation, storage and disposal 6. Transportation, storage and disposal 6.1 Transportation WARNING: Do not drain the oil from the pumps whether dangerous substances have been pumped or not. Blanking plates must be fitted to seal all vacuum inlet and outlet ports (to prevent possible oil leakage).
  • Page 79 M58800880_H - Transportation, storage and disposal ▪ Fluoroelastomers which may have decomposed as the result of being subjected to high temperatures. ▪ Components which have been contaminated with dangerous process substances. ▪ Lithium battery. Page 75...

  • Page 80: Service, Spares And Accessories

    M58800880_H - Service, spares and accessories 7. Service, spares and accessories 7.1 Introduction WARNING: When returning the dry pumping system to our service centre or our other company, the requirements of Service, spares and accessories on page 76 and Return the equipment or components for service on page 76 must be complied with.

  • Page 81: Accessories

    M58800880_H - Service, spares and accessories involved in the service of your equipment. The hazard information also lets us select the correct procedures to service your equipment. We provide instructions for completing the form in the Declaration of Contamination of Vacuum equipment and Components –...
  • Page 82 D37241017 GXS pressure input cable (4 - 20 mA) D37241019 Connector kit for 4 - 20 mA cable D37241023 Inlet isolation valve (with position indicator) Contact Edwards Inlet spool Contact Edwards Inlet filter Contact Edwards Inlet knock-out pot Contact Edwards...

  • Page 83: Spares

    M58800880_H - Service, spares and accessories Note: For the GXS750, GXS70/2600 and GXS750/4200 systems operating at a high voltage: If a cable size more than 25 mm (4 AWG) is necessary as per the local standards, the LV kit (D37481833) permits the cable sizes up to 35 mm (2 AWG).

  • Page 84: Installation Drawings

    M58800880_H - Installation drawings 8. Installation drawings 8.1 GXS160 Figure 16 GXS160 installation drawing (Sheet 1) Page 80...

  • Page 85: Figure 17 Gxs160 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 17 GXS160 installation drawing (Sheet 2) Page 81...

  • Page 86: Figure 18 Gxs160 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 18 GXS160 installation drawing (Sheet 3) Page 82...

  • Page 87: Figure 19 Gxs160 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 19 GXS160 installation drawing (Sheet 4) Page 83...

  • Page 88: Gxs160/1750

    M58800880_H - Installation drawings 8.2 GXS160/1750 Figure 20 GXS160/1750 installation drawing (Sheet 1) Page 84...

  • Page 89: Figure 21 Gxs160/1750 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 21 GXS160/1750 installation drawing (Sheet 2) Page 85...

  • Page 90: Figure 22 Gxs160/1750 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 22 GXS160/1750 installation drawing (Sheet 3) Page 86...

  • Page 91: Figure 23 Gxs160/1750 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 23 GXS160/1750 installation drawing (Sheet 4) Page 87...

  • Page 92: Gxs250

    M58800880_H - Installation drawings 8.3 GXS250 Figure 24 GXS250 installation drawing (Sheet 1) Page 88...

  • Page 93: Figure 25 Gxs250 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 25 GXS250 installation drawing (Sheet 2) Page 89...

  • Page 94: Figure 26 Gxs250 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 26 GXS250 installation drawing (Sheet 3) Page 90...

  • Page 95: Figure 27 Gxs250 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 27 GXS250 installation drawing (Sheet 4) Page 91...

  • Page 96: Gxs250/2600

    M58800880_H - Installation drawings 8.4 GXS250/2600 Figure 28 GXS250/2600 installation drawing (Sheet 1) Page 92...

  • Page 97: Figure 29 Gxs250/2600 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 29 GXS250/2600 installation drawing (Sheet 2) Page 93...

  • Page 98: Figure 30 Gxs250/2600 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 30 GXS250/2600 installation drawing (Sheet 3) Page 94...

  • Page 99: Figure 31 Gxs250/2600 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 31 GXS250/2600 installation drawing (Sheet 4) Page 95...

  • Page 100: Gxs450

    M58800880_H - Installation drawings 8.5 GXS450 Figure 32 GXS450 installation drawing (Sheet 1) Page 96...

  • Page 101: Figure 33 Gxs450 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 33 GXS450 installation drawing (Sheet 2) Page 97...

  • Page 102: Figure 34 Gxs450 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 34 GXS450 installation drawing (Sheet 3) Page 98...

  • Page 103: Figure 35 Gxs450 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 35 GXS450 installation drawing (Sheet 4) Page 99...

  • Page 104: Gxs450/2600

    M58800880_H - Installation drawings 8.6 GXS450/2600 Figure 36 GXS450/2600 installation drawing (Sheet 1) Page 100...

  • Page 105: Figure 37 Gxs450/2600 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 37 GXS450/2600 installation drawing (Sheet 2) Page 101...

  • Page 106: Figure 38 Gxs450/2600 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 38 GXS450/2600 installation drawing (Sheet 3) Page 102...

  • Page 107: Figure 39 Gxs450/2600 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 39 GXS450/2600 installation drawing (Sheet 4) Page 103...

  • Page 108: Gxs450/4200

    M58800880_H - Installation drawings 8.7 GXS450/4200 Figure 40 GXS450/4200 installation drawing (Sheet 1) Page 104...

  • Page 109: Figure 41 Gxs450/4200 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 41 GXS450/4200 installation drawing (Sheet 2) Page 105...

  • Page 110: Figure 42 Gxs450/4200 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 42 GXS450/4200 installation drawing (Sheet 3) Page 106...

  • Page 111: Figure 43 Gxs450/4200 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 43 GXS450/4200 installation drawing (Sheet 4) Page 107...

  • Page 112: Gxs750

    M58800880_H - Installation drawings 8.8 GXS750 Figure 44 GXS750 installation drawing (Sheet 1) Page 108...

  • Page 113: Figure 45 Gxs750 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 45 GXS750 installation drawing (Sheet 2) Page 109...

  • Page 114: Figure 46 Gxs750 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 46 GXS750 installation drawing (Sheet 3) Page 110...

  • Page 115: Figure 47 Gxs750 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 47 GXS750 installation drawing (Sheet 4) Page 111...

  • Page 116: Gxs750/2600

    M58800880_H - Installation drawings 8.9 GXS750/2600 Figure 48 GXS750/2600 installation drawing (Sheet 1) Page 112...

  • Page 117: Figure 49 Gxs750/2600 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 49 GXS750/2600 installation drawing (Sheet 2) Page 113...

  • Page 118: Figure 50 Gxs750/2600 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 50 GXS750/2600 installation drawing (Sheet 3) Page 114...

  • Page 119: Figure 51 Gxs750/2600 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 51 GXS750/2600 installation drawing (Sheet 4) Page 115...

  • Page 120: Gxs750/4200

    M58800880_H - Installation drawings 8.10 GXS750/4200 Figure 52 GXS750/4200 installation drawing (Sheet 1) Page 116...

  • Page 121: Figure 53 Gxs750/4200 Installation Drawing (Sheet 2)

    M58800880_H - Installation drawings Figure 53 GXS750/4200 installation drawing (Sheet 2) Page 117...

  • Page 122: Figure 54 Gxs750/4200 Installation Drawing (Sheet 3)

    M58800880_H - Installation drawings Figure 54 GXS750/4200 installation drawing (Sheet 3) Page 118...

  • Page 123: Figure 55 Gxs750/4200 Installation Drawing (Sheet 4)

    M58800880_H - Installation drawings Figure 55 GXS750/4200 installation drawing (Sheet 4) Page 119...

  • Page 124: Pump Display Terminal

    M58800880_H - Pump display terminal 9. Pump display terminal The PDT accessory provides pump on/off and status reporting. Warnings and alarms are also indicated to the user. Up to two PDTs may be fitted. Figure 56 Pump display terminal 9.1 LEDs LOCAL CONTROL green LED illuminates continuously when this PDT has the control of the pump.

  • Page 125: Event/Warning/Alarm Display And Acknowledgement

    M58800880_H - Pump display terminal Table 28 PDT displays Local control Pump state PDT display Operator Pump response Press Start button PDT displays: Stopped START MENU Press ENTER to confirm Pump starts Start Pump Running Pump Running Press CANCEL No change Press CANCEL (running) Stopped or Running...

  • Page 126: Normal Menu

    M58800880_H - Pump display terminal NR in the data part of a parameter indicates no reading. NP in the data part of a parameter indicates a parameter that is not present. 9.4.1 Normal menu This menu is displayed when the PDT is first plugged into the pump, or accessed by pressing the NORMAL button.

  • Page 127: Setup Menu

    M58800880_H - Pump display terminal Description Typical display Dry pump speed in Hz DP SPEED 100 Hz Booster speed in percent MB SPEED 100 % Booster speed in Hz MB SPEED 100 Hz Dry pump inverter temperature DP INV TEMP 100 C Booster inverter temperature MB INV TEMP...

  • Page 128: Commands Menu

    M58800880_H - Pump display terminal 9.4.4 Commands menu Under the Setup menu. Scroll by pressing the UP/DOWN keys. Press ENTER to open a sub menu or CANCEL to exit back to the Setup menu. A security code is needed to enter the commands menus: 202.

  • Page 129: Warm Up Options Menu

    M58800880_H - Pump display terminal Table 34 Set sequences menu Options on PDT line 2 after Option Text on PDT line 2 pressing Enter Warm up sequence Warmup options... See Warm up options menu Booster start options BP Start Options... See Booster Pump Start options menu Micro TIM options...

  • Page 130: Microtim Options Menu

    M58800880_H - Pump display terminal Table 36 Booster pump start options menu Options on PDT line 2 after pressing Option Text on PDT line 2 Enter Booster start mode BP Start Mode Select from: Manual Time Delay Booster controller if in Time BP delay after..

  • Page 131: Warn On-Process Menu

    M58800880_H - Pump display terminal Table 38 DP clean options menu Options on PDT line 2 after Option Text on PDT line 2 pressing Enter Set clean speed Set DP Speed... Range 20 to 110 Hz* Clean time Clean Time... Range 10 minutes to 60 minutes* Automatically start on Start in Green Mode ...

  • Page 132: Pid Menu

    M58800880_H - Pump display terminal 9.4.13 PID menu Scroll by pressing the UP/DOWN keys. Press ENTER to open a sub menu or CANCEL to exit back to the Set sequences menu. Table 40 PID options menu Option Text on PDT line 2 Options on PDT line 2 after pressing Enter PID enable/disable Enable/Disable...

  • Page 133: Speed Control Options Menu

    M58800880_H - Pump display terminal Table 42 Smart stop options menu Options on PDT line 2 after pressing Option Text on PDT line 2 Enter Smart stop enable/disable Enable/Disable... Enable/Disable Range 0 ‑ 3600 seconds in 60 second Time for pump to stop Stop time...

  • Page 134: Default Reset

    M58800880_H - Pump display terminal 9.4.18 Default reset Resets all of the non‑volatile configuration settings on the pump (for example: delays, temperature setpoints and thresholds) to their default factory‑setting values for that pump type. 9.4.19 Display Inverter Fault History (DP Inv Fault Hist) menu Under the Setup menu.

  • Page 135: Ip Configuration Menu

    M58800880_H - Pump display terminal Table 46 Table: Accessory menu Accessory Parameter Isol Valve... (Inlet isolation valve) Water Sensor... Active gauge... N2 Flow Sensor... (Purge gas flow) Exh Pressure... (Exhaust Pressure Sensor) DP Clean... Auxiliary gauge... Choice of Voltage/Strain Gauge/Pirani Gauge PT100 1...

  • Page 136: Display Menu

    M58800880_H - Pump display terminal Configuration Display Domain Name... (display only) * Press UP/DOWN keys to select Enabled or Disabled and press ENTER to accept or CANCEL to exit back to the IP Configuration menu. † For each digit setting press the UP/DOWN keys to set the digit, press ENTER to accept and move to the next digit or CANCEL to move back to the previous digit.

  • Page 137: Set Clock

    M58800880_H - Pump display terminal Parameter Bottom Page 2... In each option, the select parameter menu is opened, scroll through the parameters by pressing the UP/DOWN keys. Press ENTER to select the parameter for display or CANCEL to exit back to the Select line menu. 9.4.25 Set clock Under the Setup menu.

  • Page 138: Setting The Status Screen To Automatically Scroll

    M58800880_H - Pump display terminal Figure 57 PDT menu items 9.5.1 Setting the status screen to automatically scroll The status display can be made to automatically scroll through its display items using the auto scroll menu item. The delay between refreshes is set using the scroll delay menu item.

  • Page 139: How To Configure The Pump Warm-Up Options

    M58800880_H - Pump display terminal 9.6 How to configure the pump warm-up options By default the pump performs an intelligent warm‑up cycle to a temperature setpoint so that the pump is warm before it is allowed to be on‑process. Once the pump reaches the temperature set point it automatically goes on‑process.

  • Page 140: Lowering The Warm-Up Temperature

    M58800880_H - Pump display terminal 9.6.1 Lowering the warm-up temperature Use the warmup setpoint temp menu item and decrease the warm‑up set point to the desired temperature. The minimum temperature allowed is 0 °C. 9.6.2 Disabling the warm-up cycle It may be required for the pump to skip the warm‑up cycle and go directly on‑process once it has reached full speed.

  • Page 141: Allow A Pump To Go On-Process With A Warning

    M58800880_H - Pump display terminal Note: ‑ duty gas module do not have inlet purge so it is not possible to Systems with the light use this feature. 9.6.7 Allow a pump to go on-process with a warning By default a pump is prevented from going on‑process if a warning is present. This can be disabled using the Warn onprocess menu item which can be found by going to the Setup menu and selecting the Set sequences menu.

  • Page 142: Changing The Booster Time Delay

    M58800880_H - Pump display terminal From the SETUP menu, scroll down and select the Set Sequences menu. Scroll down and select BP Start Options. Select BP Start Mode... Select Manual. The booster can then be started and stopped using the MB menu item from the Commands menu.

  • Page 143: Figure 60 Smart Stop Flow Chart

    M58800880_H - Pump display terminal Figure 60 Smart Stop flow chart The following menus are used by the PDT to configure Smart Stop: Page 139...

  • Page 144: How To Configure Ramped Speed Increase

    M58800880_H - Pump display terminal Figure 61 Smart Stop PDT menu configuration items ▪ Smart Stop is enabled and disabled using the enable/disable menu item. ▪ The maximum time that the pump will run while shutting down is set using the Stop time menu item.

  • Page 145: How To Set Up The Dp Clean

    M58800880_H - Pump display terminal Figure 62 On-process ramp PDT menu configuration items On‑process ramp is enabled by setting a ramp delay time greater than zero. This time is the time delay between the pump speed increases. The ramp step size determines the size of each step.

  • Page 146: Figure 63 Dry Pump Clean Flow Chart

    M58800880_H - Pump display terminal Figure 63 Dry pump clean flow chart The following menus are used by the PDT to configure the dry pump clean: Page 142...

  • Page 147: Changing The Dry Pump Speed During The Clean Operation

    M58800880_H - Pump display terminal Figure 64 Dry pump clean PDT menu configuration items 9.9.1 Changing the dry pump speed during the clean operation Use the Set DP speed menu item to change the dry pump speed during the clean cycle. It is not recommended to increase the pump speed if solvent is used.

  • Page 148: Automatically Initiating A Clean Cycle When The Pump Goes Off-Process

    M58800880_H - Pump display terminal 9.9.3 Automatically initiating a clean cycle when the pump goes off-process The dry pump can be configured to automatically start the dry pump clean cycle when it goes off‑process. This is useful if the pump requires regular cleaning on a particularly dirty process.

  • Page 149: Figure 65 Speed Control Menu Items

    M58800880_H - Pump display terminal Speed control sources: Profibus interface * Only one of the pumps (dry pump or booster) can be controlled by this at one time, although the other pump can be controlled by a different source. Note: The system also has a built-in PID controller.

  • Page 150: Normal Speed

    M58800880_H - Pump display terminal 9.10.1 Normal speed The full speed settings for the booster and dry pump are set by us when the pump is manufactured. If a lower full speed is required then this can be set using a downloadable configuration.

  • Page 151: Second Speed Control

    M58800880_H - Pump display terminal Ethernet interface and How to use SIM protocol with a serial port on page 155 for the details of how to use the SIM protocol with a serial port. 9.10.4 Second speed control A second speed setting can be configured using the PDT and used to control the speed of either the booster or the dry pump.

  • Page 152: How To Use The Pid Pressure Control

    M58800880_H - Pump display terminal 9.11 How to use the PID pressure control The pump has a built‑in PID pressure control and auto tune feature that can adjust the dry pump speed when the pump is on‑process so that the pressure reading of the pressure sensor matches the supplied PID setpoint.

  • Page 153: Fit And Configure The Pressure Sensor

    M58800880_H - Pump display terminal Figure 68 PID PDT menu items To set up the PID, follow these steps: 9.11.1 Fit and configure the pressure sensor Fit the auxiliary gauge cable accessory by following the instructions given in the installation manual supplied with the accessory. Physically fit the active strain gauge or active Pirani gauge to a convenient port on the process chamber.

  • Page 154: Set The Pump Into Green Mode

    M58800880_H - Pump display terminal If our Active Accessories Module (AAM) is fitted to the pump (available as an accessory, refer to Accessories on page 77) an active gauge can be connected to it and used the same as a PID gauge. Fit the gauge to an appropriate port on your system.

  • Page 155: Test The Pid Control

    M58800880_H - Pump display terminal 9.11.6 Test the PID control If the booster is under manual control, ensure that it is switched on and running. Turn the Green mode off from the Command menu. PID should now start automatically. If it does not start to control the inlet pressure use the PDT and go to: Setup/Command/PID/On.

  • Page 156: Figure 69 Ethernet Menu Items

    M58800880_H - Pump display terminal Note: If the pump is set to DHCP mode it will not be visible through a router. If operation through a router is required then use static address mode. The pump does not require NTP, DNS or SMTP server addresses to be set to function correctly. A gateway address is only required if working with a router.

  • Page 157: Using Sim Protocol Through Ethernet

    M58800880_H - Pump display terminal 9.12.1 Using SIM protocol through Ethernet The SIM Ethernet protocol is available on the following TCP/IP Ports. Table 52 SIM protocol TCP/IP Port 47591 47592 Use an Ethernet cable to connect to the Ethernet interface (Figure: The controls/ connectors on the rear of the pump (system with rear exhaust and castors/levelling feet fitted), item 3) and then set the IP address of the system to the correct address.

  • Page 158: Figure 72 Connect To Screenshot

    M58800880_H - Pump display terminal SIM protocol can be tested over Ethernet using HyperTerminal. Start HyperTerminal. Enter the IP address of the pump in the Host address field. In the Port number field enter the SIM port to be used, either 47591 or 47592. In the Connect using field, select TCP/IP (Winsock) as shown.

  • Page 159: How To Use Sim Protocol With A Serial Port

    M58800880_H - Pump display terminal 157,28,19,42,0,72,121,35,0 In this example: indicates a pump controller indicates a GXS pump family indicates a GXS250 indicates a GXB2600 booster indicates GXS screw pump indicates low volts, 7.5 kW DP and 7.5 kW BP indicates a harsh gas module indicates a normal thermal management type indicates a normal exhaust type Refer to the SIM manual for more information about the various field elements and...

  • Page 160: How To Set Up The Mcm Microtim Using The Pdt

    M58800880_H - Pump display terminal Figure 74 ASCII settings screenshot In the HyperTerminal window, type: '?T' and press the ENTER key. If successful, you should get a reply with the following format: 157,28,19,42,0,72,121,35,0 In this example: indicates the pump controller indicates the GXS pump family indicates the GXS250 indicates the GXB2600 booster...

  • Page 161: Configuring The Channel 2 Input

    M58800880_H - Pump display terminal Figure 75 MicroTIM options menu 9.14.1 Configuring the channel 2 input By default, the MCM MicroTIM channel 2 input is configured to control the green mode/ standby mode for the system but the user has the option of setting input 2 to turn the booster on/off, operate the inlet isolation valve, enable the PID or enable the second speed.

  • Page 162: Configuring The Channel 4 Output

    M58800880_H - Pump display terminal 3. The Second Speed input can be used to control the speed of either the dry pump or the booster, this can be set using the SPEED CONTROL menus. Refer to How to control the pump speed on page 144.

  • Page 163: Run The Booster Using Sim And Profibus

    M58800880_H - Pump display terminal 9.15.2 Run the booster using SIM and Profibus Refer to the SIM and Profibus manuals for information on how to control the booster using these protocols. 9.15.3 Run the booster using the MCM MicroTIM If controlling the booster independently using the MCM MicroTIM then Input 2 needs to be configured to Booster.

  • Page 164: Fault Finding

    M58800880_H - Fault finding 10. Fault finding 10.1 PDT events There are some circumstances in which the system is unable to respond to a command that has been made. To help in understanding why an operation was not possible, the pump triggers an event and displays a message on the PDT (if fitted).
  • Page 165 M58800880_H - Fault finding Fault Event 11.42 Warming up the pump before going on-process. Cause The pump is not warm enough to go on-process immediately. Remedy Either reduce the warm up temperature (refer to Lowering the warm-up temperature on page 136), enable the pump on‑process when cold (refer to Disabling the warm-up cycle on page 136) or wait for the pump to go on‑process when it has warmed up.

  • Page 166: Warnings

    M58800880_H - Fault finding Cause The pump must be stopped before starting the solvent soak. Remedy Stop the pump and then repeat the command. Fault Event 331.42 Cannot start Command. The pump is not warmed up. Cause The pump must be warmed up and in the green mode/standby mode to initiate the DP Clean sequence.

  • Page 167: Pdt Warnings

    M58800880_H - Fault finding If a PDT is fitted, the warning LED flashes to indicate a new warning. Refer to Event/ warning/alarm display and acknowledgement on page 121 for more information on how warnings are indicated and how they can be acknowledged using the PDT. Once all the warnings are cleared, the warning LEDs extinguish.
  • Page 168 M58800880_H - Fault finding Fault Warning 34.01 - N2 purge low Cause Low N pressure. If the flow switch is fitted, low N flow. Remedy Check N supply and increase the pressure. If the N flow switch is fitted, check the flow and increase the flow. Fault Warning 39.11 - Exh Press High Cause...
  • Page 169 M58800880_H - Fault finding Remedy Check that cooling water is connected, switched on and is to the specification given Cooling-water data on page 25. Fault Warning 55.13/ Warning 63.13-Sensor missing Cause The dry pump temperature sensor may have become disconnected or failed. Remedy - Check that the sensor is fitted and is correctly connected.

  • Page 170: Alarms

    M58800880_H - Fault finding Fault Warning 186.13 - No DP Inv Comms Cause The pump controller cannot communicate with the dry pump inverter. Remedy Check the wiring between the pump controller and the dry pump inverter. Fault Warning 196.01 - DP Inv xxxx yyyy Cause DP 2nd Inverter has raised a warning code.

  • Page 171: Pdt Alarms

    M58800880_H - Fault finding 10.3.2 PDT alarms If a PDT is fitted, each alarm triggers an alarm message to be displayed. Refer to Event/ warning/alarm display and acknowledgement on page 121 for more information on how alarms are handled by the PDT. lists the alarm messages that might be displayed on the PDT with possible causes and actions that should be taken.
  • Page 172 M58800880_H - Fault finding Remedy Contact us for a service engineer to configure the pump system type correctly or replace the pump controller electronics. Fault Alarm 39.12 - Exh Press High Action message - Exhaust Blocked, Service Pump Cause The exhaust pressure has reached the maximum allowed. Remedy Refer to Unplanned shut down and alarms...
  • Page 173 M58800880_H - Fault finding Fault Alarm 176.13 - No MB Inv Comms Cause The pump controller cannot communicate with the booster inverter during the start‑up checks. Remedy Check the wiring between the pump controller and the booster inverter. Fault Alarm 184.10 - Dry Pump Stopped Cause The dry pump speed is very low.

  • Page 174: Inverter Warnings And Alarms

    M58800880_H - Fault finding 10.4 Inverter warnings and alarms The inverters used to drive the dry pump and the booster can also generate warnings and alarms if problems are encountered. The inverter warning and alarm codes are displayed by the PDT (if fitted). The alarm and warning codes are each reported as a 16‑bit word encoded as 4 hexadecimal numbers.
  • Page 175 M58800880_H - Fault finding Table 58 Inverter alarm codes Inverter alarms Fault code PDT reported fault name Description Bit set combination If the motor has not accelerated to a minimum speed of 10 Hz within 60 seconds ACCELERATION_TO then the drive will try to restart three times before giving alarm Alarm given when the dry pump speed is OVERLOAD_TO...
  • Page 176 M58800880_H - Fault finding Table 59 Inverter warning codes Inverter alarms Fault code PDT reported fault name Description combination Reserved Reserved Reserved Reserved Condensation warning, indicates that the inverter (water) temperature is lower than LOWTW expected ‑ possible causes include inverter water valve stuck open.

  • Page 177: Other Problems

    M58800880_H - Fault finding This translates to: alarm 1 in bit 2 ‑ PWM_TRIP alarm 8 in bit 4 ‑ OVERT warning 2 in bit 6 - HIGHTM. This means the motor is overheated and switched the output off. 10.5 Other problems 10.5.1 Pump controller communications The pump controller contains two processors that perform different functions.
  • Page 178 This page has been intentionally left blank.
  • Page 179 This page has been intentionally left blank.
  • Page 180 edwardsvacuum.com...

This manual is also suitable for:

Gxs 160Gxs 160/1750Gxs 250Gxs 250/2600Gxs 450Gxs 450/2600 ... Show all

Table of Contents

Save PDF
