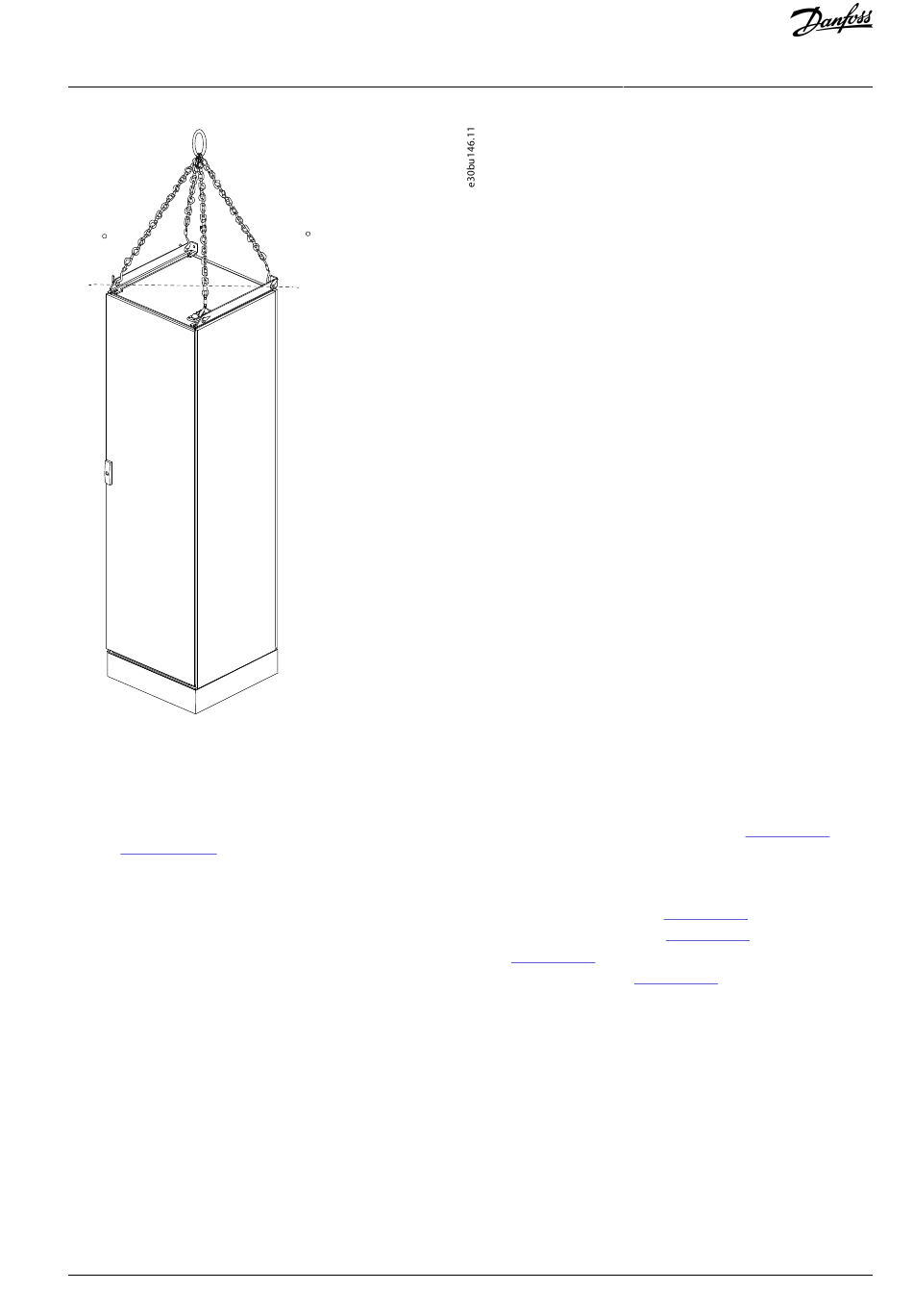

Illustration 13: Recommended Lifting Method

4.10 Combining Multiple Cabinets from a Split Shipment

Procedure
1. Make sure the cabinets are in the right order and place them side by side. For the proper order, refer to
Enclosed Drive?.
2. Attach the cabinets to one another:
a.
Remove the Rittal back cover from each cabinet.
b. Secure the back side of the cabinets to one another using the back brackets. See
c.
Secure the front side of the cabinets to one another using the front brackets. See
d. Secure the lifting eyelets to the top of the cabinets. See
e.
Join the grounding bars using the connector piece (see the shaded piece in
