VLT® Refrigeration Drive FC 103
Operating Guide
5.6.2 D10h Wiring Harness

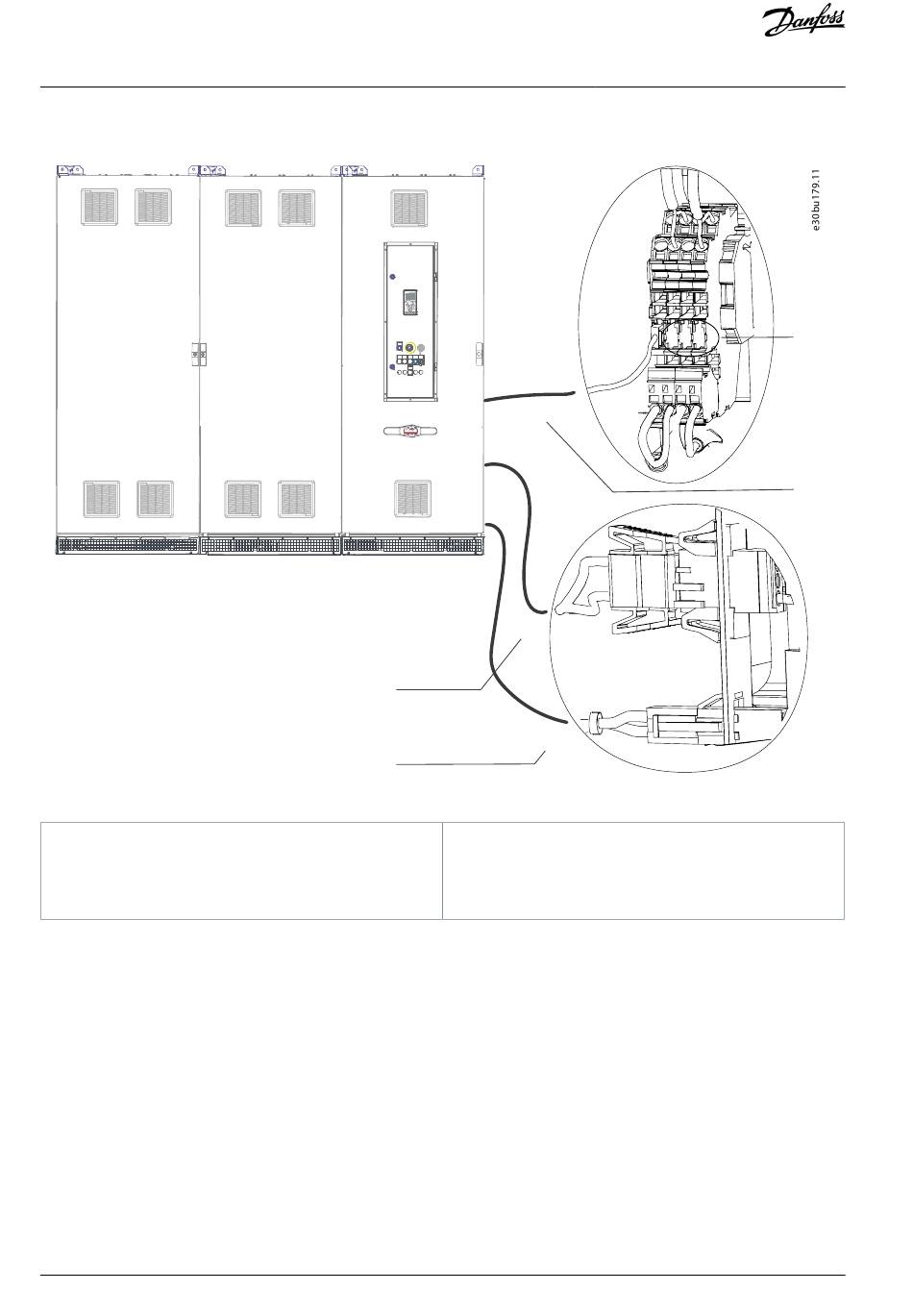

Illustration 23: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + D10h Drive Cabinet)
1
DC-link harness to fan supply in output filter cabinet
2
Cabinet heater supply harness to output filter cabi-
net
52 | Danfoss A/S © 2020.09
-XD11.1
-XDL.1
1
-XD4.1
2
3
Additional terminal connections
4
Thermal protection wiring harness to output filter
cabinet
Electrical Installation
AQ357954340588en-000201 / 130R0881
3
4
