VLT® Refrigeration Drive FC 103
Operating Guide
-FCE
-XD1
L
1
6 A

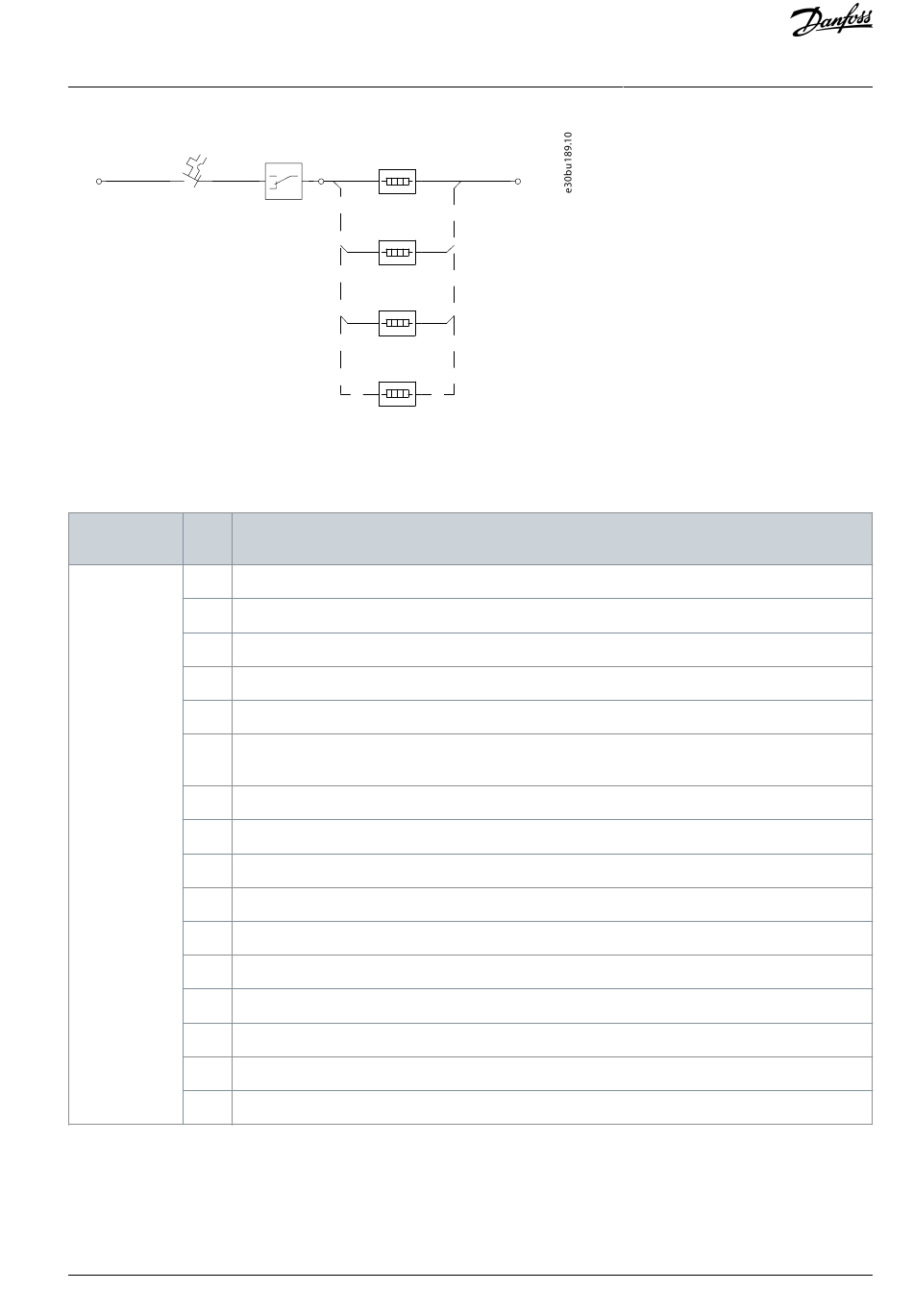

Illustration 45: Cabinet Heater Terminals
5.7.6.7 Motor Heater Control
Table 60: Auxiliary Function Type Codes
Character posi- Code Description
tion
23–24 A4 Motor heater control
AC AC socket + cabinet light + motor heater control
AF AC socket + cabinet light + extended I/O terminals + motor heater control
AH AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AJ AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL AC socket + cabinet light + cabinet heater + motor heater control
AN AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO AC socket + cabinet light + motor heater control + insulation monitor
AQ Extended I/O terminals + motor heater control
AS Extended I/O terminals + cabinet heater + motor heater control
AU Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
AV Extended I/O terminals + motor heater control + insulation monitor
AW Cabinet heater + motor heater control
AY Cabinet heater + motor heater control + insulation monitor
AZ Motor heater control + insulation monitor
The motor heater option provides the ability to control the supply for the motor anti-condensation heater. The 24 V DC external
supply is connected to terminal -XD1.1 in the lower part of the cabinet. When the drive is not in run state, the control relay -QAM
changes the external supply to the -XDM output terminals. When the drive is in run state, the control relay disconnects the external
supply to the motor heater. The function is disabled when MCB –FCN is open.
Danfoss A/S © 2020.09
-QAM
-EB1.1
-XD4
-EB1.2
-EB1.3
-EB1.4
-XD4
N
AQ357954340588en-000201 / 130R0881 | 79
Electrical Installation
