VLT® Refrigeration Drive FC 103
Operating Guide
1 2
4
5

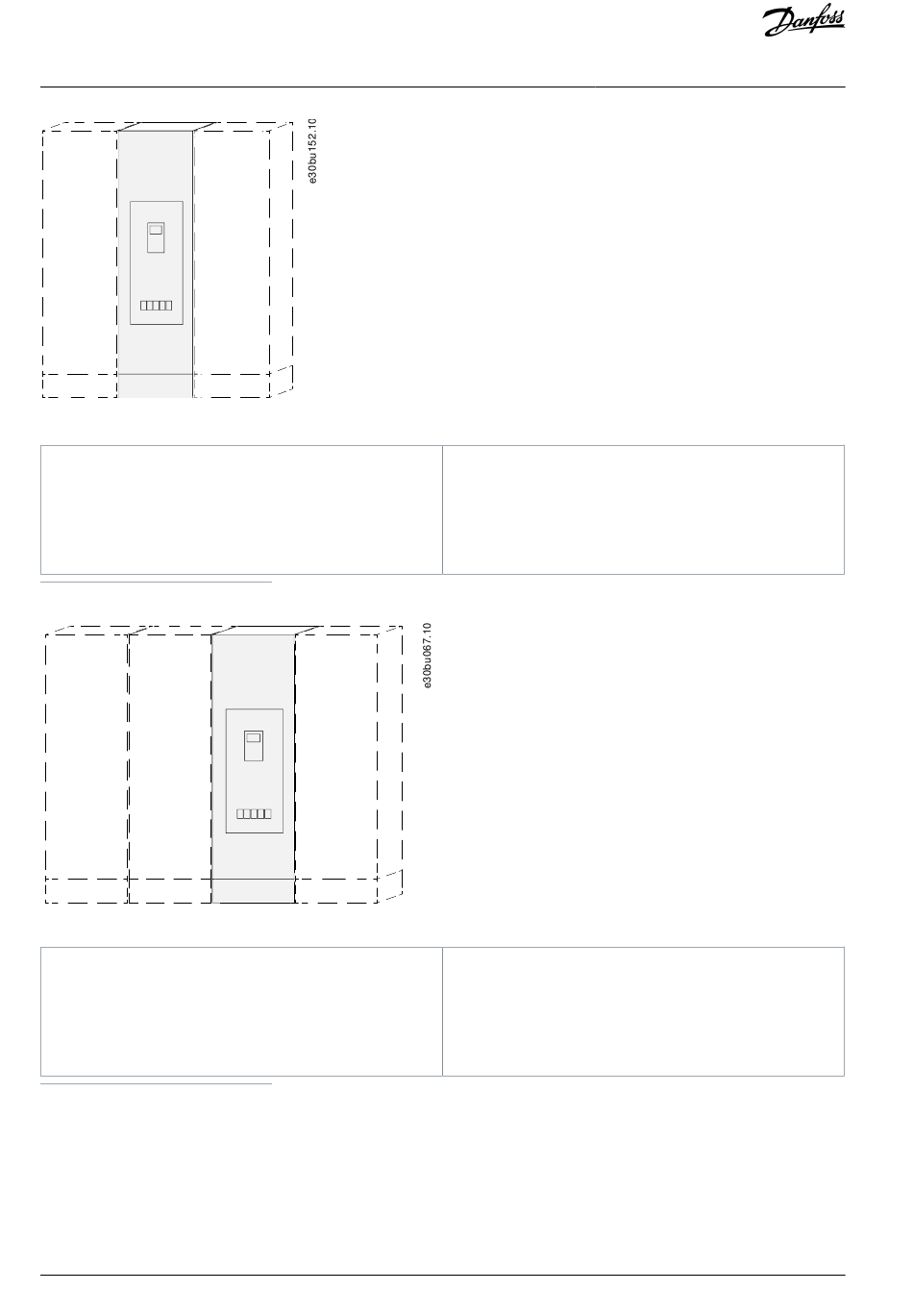

Illustration 1: Possible Configurations for a D9h Enclosed Drive
1 Input filter cabinet (passive harmonic filter or line re-
actor)
2 Drives cabinet
3 Sine-wave cabinet
The D9h enclosure does not require an input power options cabinet – the input power options are placed in the drive cabinet.
1
1 2
Illustration 2: Possible Configurations for a D10h Enclosed Drive
1 Input filter cabinet (passive harmonic filter or line re-
actor)
2 Input power options cabinet
3 Drive cabinet
If more than 1 input power option is ordered, the D10h enclosed drive requires an input power options cabinet. Otherwise the single input power
1
option is placed below the control compartment in the drive cabinet.
14 | Danfoss A/S © 2020.09
3
3 4
5
(1)
4 Control compartment
5 Input power options
4 Sine-wave filter cabinet
5 Control compartment
AQ357954340588en-000201 / 130R0881
Product Overview
