Enclosure Size Identification - Danfoss VLT FC 103 Operating

VLT® Refrigeration Drive FC 103
Operating Guide
3. Go to Table 3 and use the model number and voltage rating to find the enclosure size.
4.
Using the type code, refer to
Example
1 2 3 4 5

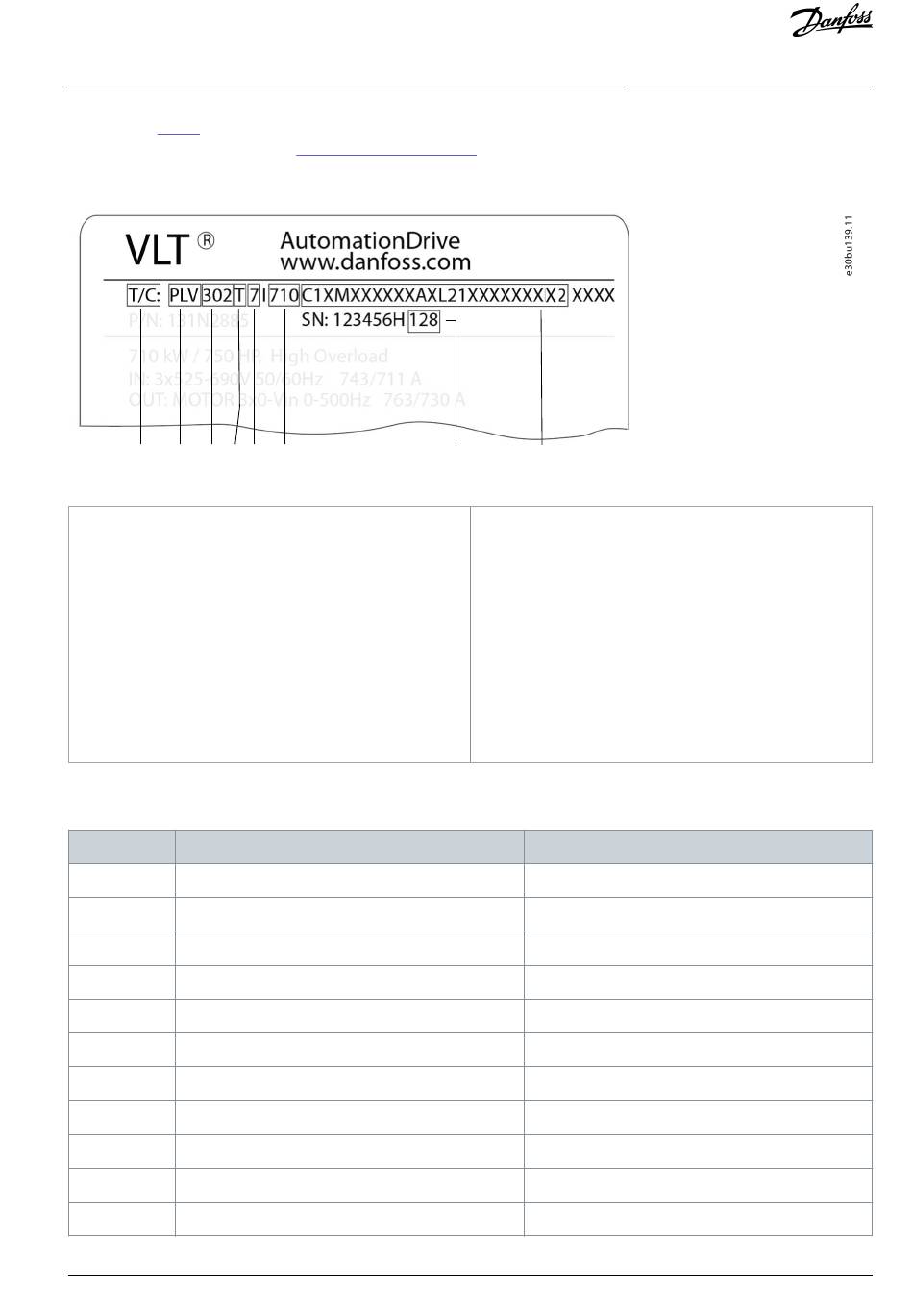

Illustration 7: Using the Nameplate to Find the Enclosure Size and Installed Options
1 Type code
2 Product group (PLV = enclosed drive)
3 Drive series
• 102 = VLT HVAC Drive
®
• 103 = VLT Refrigeration Drive
®
• 202 = VLT AQUA Drive
®
• 302 = VLT AutomationDrive
®
4 Low harmonic filter option (if any)

3.4.2 Enclosure Size Identification

Table 3: Model by Drive Voltage
Model Enclosure size (380–480 V)
N110 D9h
N132 D9h
N160 D9h
N200 D10h
N250 D10h
N315 D10h
N355 E5h
N400 E5h
N450 E5h
N500 E6h
N560 E6h
Danfoss A/S © 2020.09
3.4.3 Type Code Identification
6 7
to identify the installed options.
8
5 Mains voltage
• 4 = 380–480 V
• 5 = 380–500 V
• 7 = 525–690 V
6 Model/power rating
7 Build date (wwy, where ww = the week and y = the
last digit of the year)
8 Option codes
Enclosure size (525–690 V)
D9h
D9h
D9h
D10h
D10h
D10h
–
D10h
E5h
E5h
E5h
AQ357954340588en-000201 / 130R0881 | 19
Product Overview
