VLT® Refrigeration Drive FC 103
Operating Guide
1
2
3
4
5

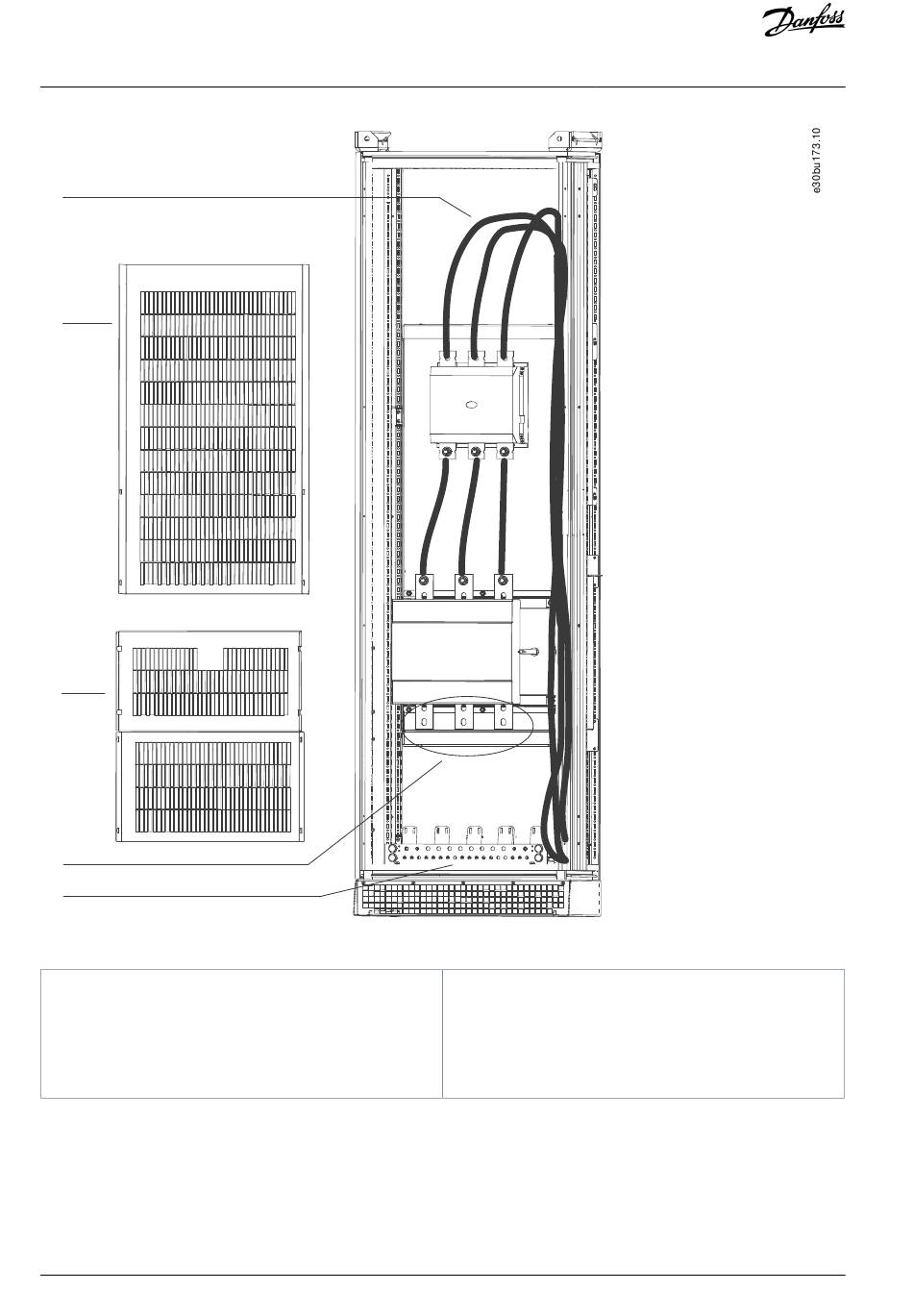

Illustration 49: Connection Points for Mains to Input Power Option (Enclosed Drive Configured With Power Options Cabinet)
1 Factory cables connecting contactor to drive input
terminals
2 Upper cover
3 Lower cover

5.8.3 Connecting the Drive Module to the Motor

Procedure
1. Strip a section of the outer cable insulation.
2. Fasten a connector/cable lug to the end of the stripped cable.
3. Create an electrical connection between the cable shield and ground by securing the stripped wire under the cable clamp.
84 | Danfoss A/S © 2020.09
4 Input power terminals (disconnect option is shown)
5 Grounding bar
AQ357954340588en-000201 / 130R0881
Electrical Installation
