VLT® Refrigeration Drive FC 103
Operating Guide
5. Connect the 3-phase AC motor wiring to the dU/dt terminals U (T1), V (T2), and W (T3).
6.
Tighten the terminals in accordance with the specifications shown in
Example
1
2
3

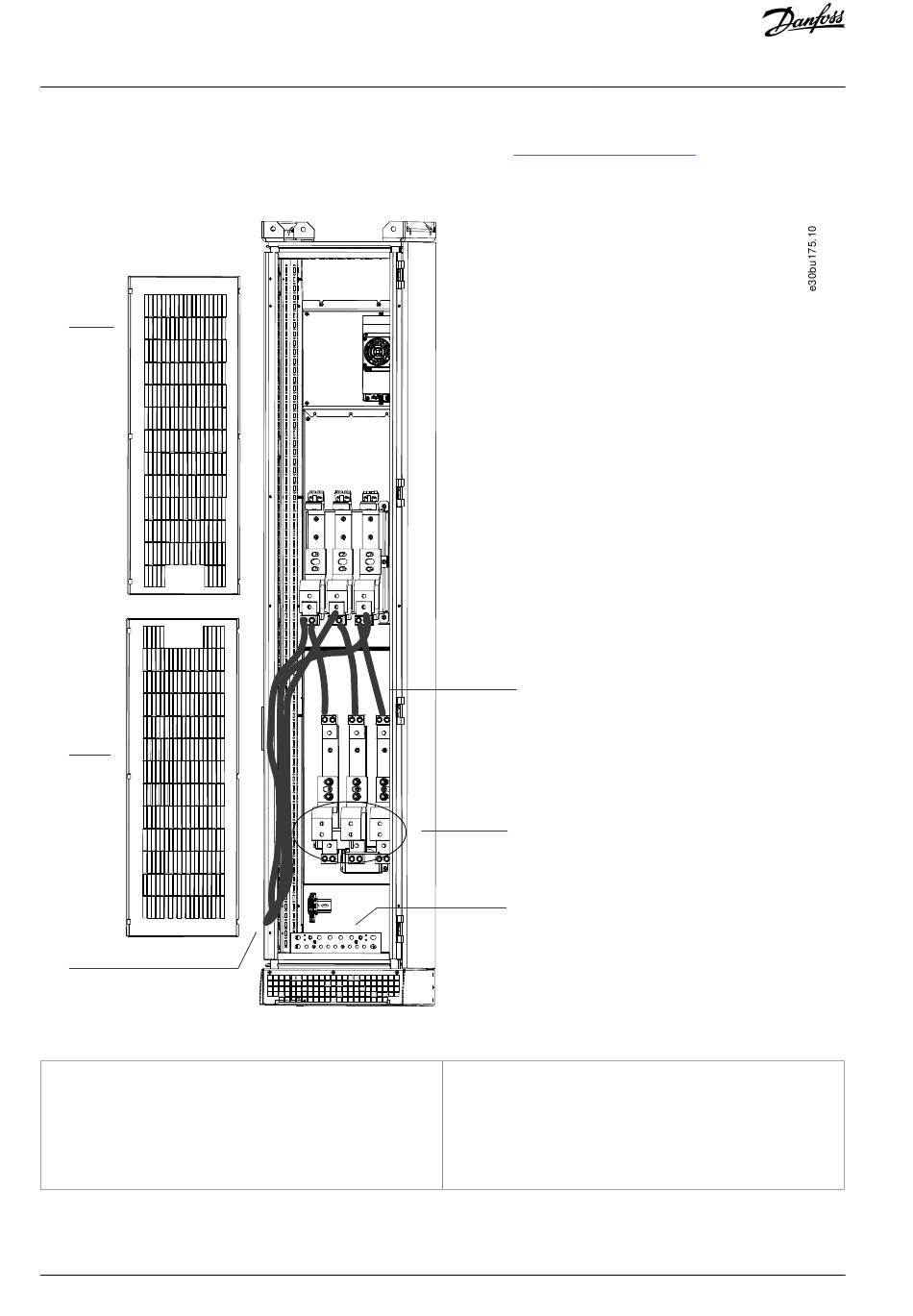

Illustration 52: Connection Points for the dU/dt Filter to Motor
1 Upper cover
2 Lower cover
3 Factory-installed power cables from the drive mod-
ule
88 | Danfoss A/S © 2020.09
10.11 Fastener Torque
4
5
6
4 Factory-installed cables
5 Motor terminals
6 Grounding bar
AQ357954340588en-000201 / 130R0881
Electrical Installation
Ratings.
