VLT® Refrigeration Drive FC 103
Operating Guide
Example

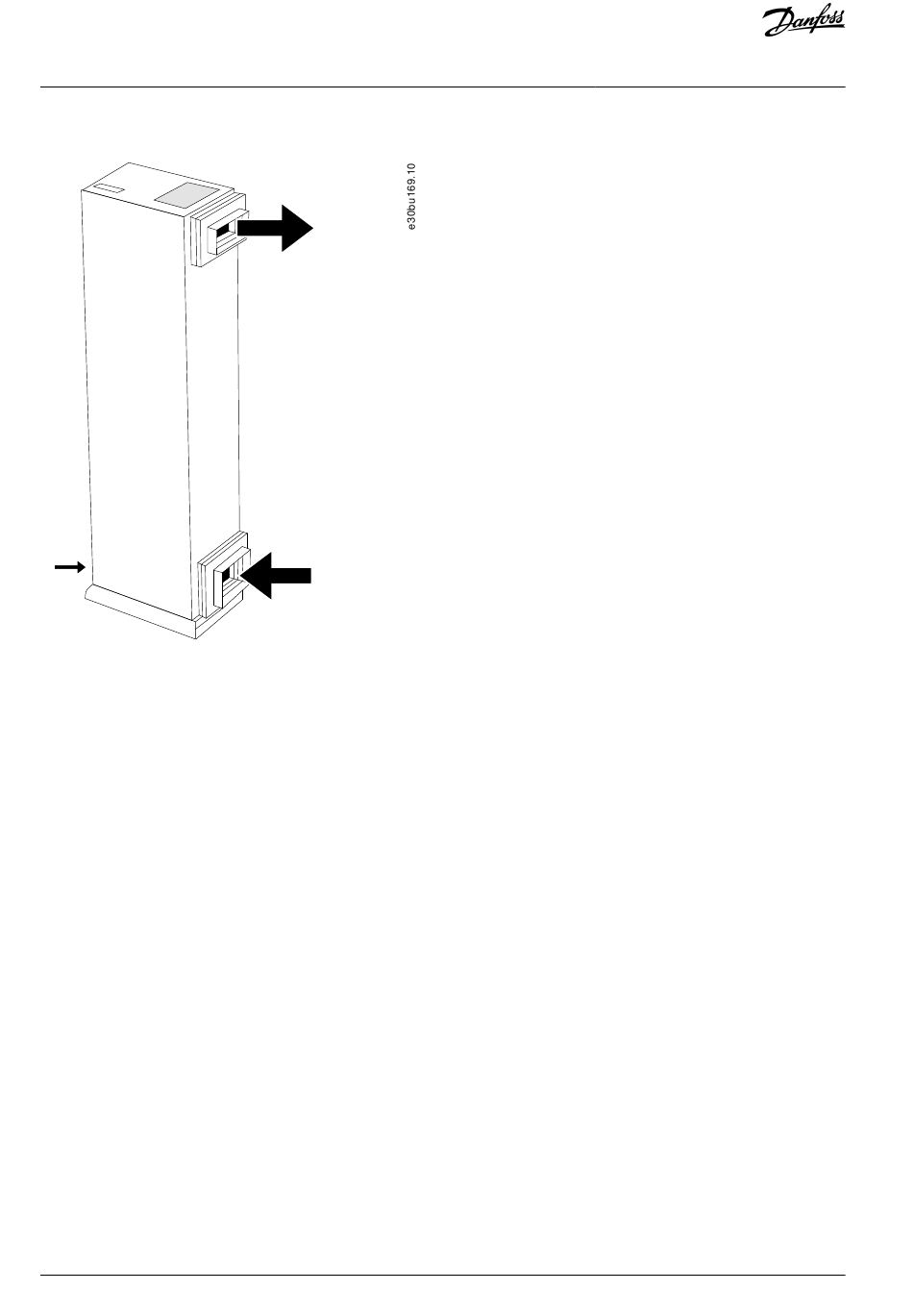

Illustration 17: Cabinet Airflow with the Back-channel Option (Duct Adapter Flanges not Provided with Option)
4.11.3 Securing the Cabinet(s) to the Floor
There are 3 methods to secure the cabinet to the floor:
•
Use the 4 mounting points at the base of the pedestal.
•
Use the 2 mounting points at the front base of the pedestal and the 2 mounting points at the upper back of the cabinet.
•
Use the 2 mounting points in the mounting bracket and the 2 mounting points at the front base of the pedestal.
42 | Danfoss A/S © 2020.09
Mechanical Installation
AQ357954340588en-000201 / 130R0881
