Wiring For Regeneration - Danfoss VLT FC 103 Operating

VLT® Refrigeration Drive FC 103
Operating Guide

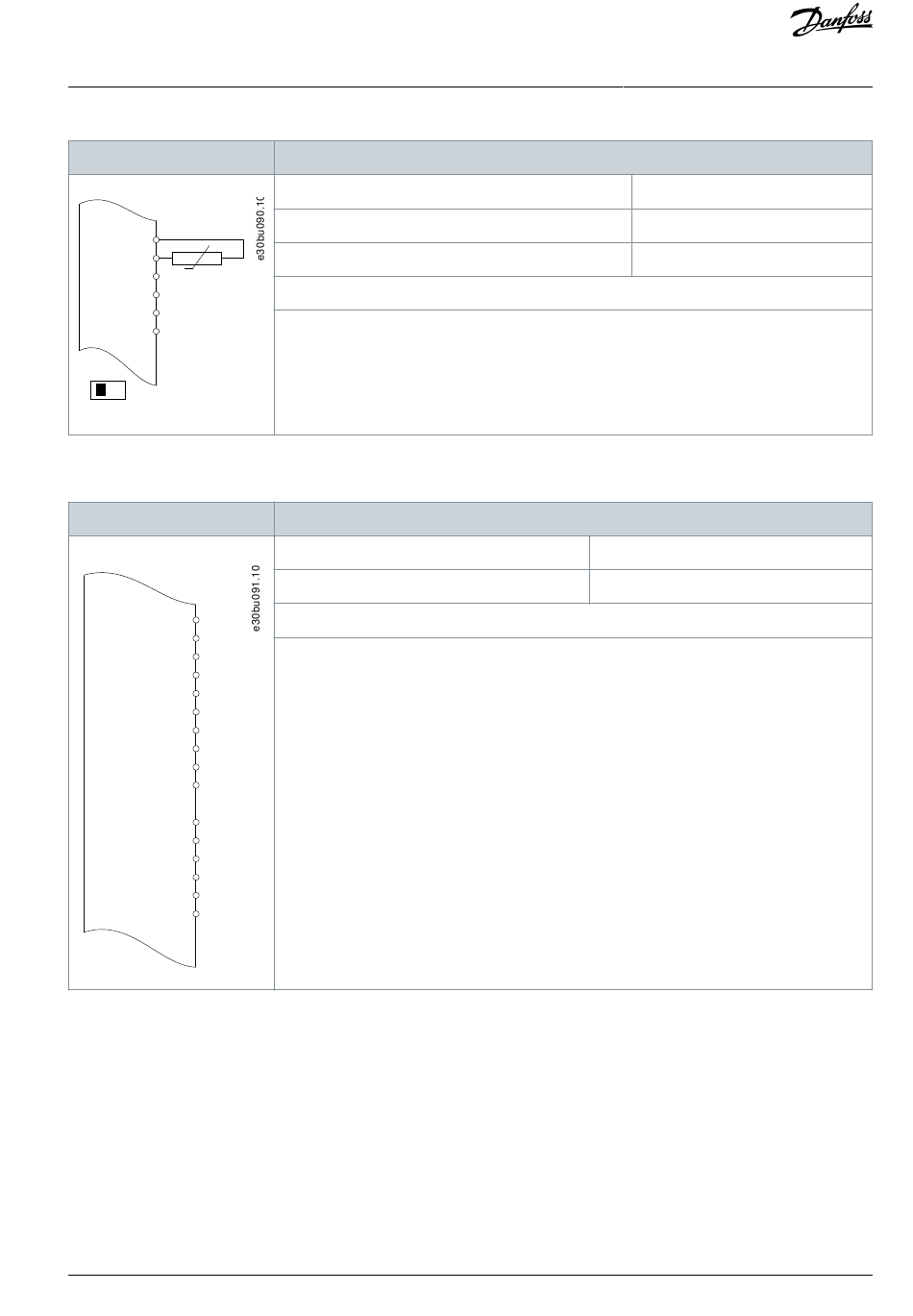

Table 87: Wiring Configuration for Motor Thermistor
+10 V XD2.6
XD2.7
A IN
A IN XD2.8
COM XD2.9
A OUT XD2.5
COM XD2.4
U - I
A53

8.1.10 Wiring for Regeneration

Table 88: Wiring Configuration for Regeneration
+24 V XD2.10
+24 V XD2.11
XD2.12
D IN
XD2.13
D IN
COM XD2.18
D IN XD2.14
D IN XD2.15
D IN XD2.16
D IN
XD2.17
D IN XD2.19
+10 V XD2.6
A IN XD2.7
A IN XD2.8
COM
XD2.9
A OUT XD2.5
COM
XD2.4
Danfoss A/S © 2020.09
Parameters
Function
Parameter 1-90 Motor Thermal Protection
Parameter 1-93 Thermistor Source
* = Default value
If only a warning is required, set parameter 1-90 Motor Thermal Protection to [1] Thermistor warn-
ing.
D IN 37 is an option.
Input 53 in the parameter corresponds to terminal XD2.7 in the control compartment.
Parameters
Function
Parameter 1-90 Motor Thermal Protection
* = Default value
To disable regeneration, decrease parameter 1-90 Motor Thermal Protection to 0%. However, if
the application uses motor brake power and regeneration is not enabled, the drive will trip.
Wiring Configuration Examples
Setting
[2] Thermistor trip
[1] Analog input 53
Setting
100%*
AQ357954340588en-000201 / 130R0881 | 113
