4 Mechanical Installation

4.1 Items Supplied

Items supplied can vary according to product configuration.
• Make sure that the items supplied and the information on the nameplate correspond to the order confirmation.
• Visually check the packaging and the drive for damage caused by inappropriate handling during shipment. File any claim for
damage with the carrier. Retain damaged parts for clarification.
1
2
3
4
5
6

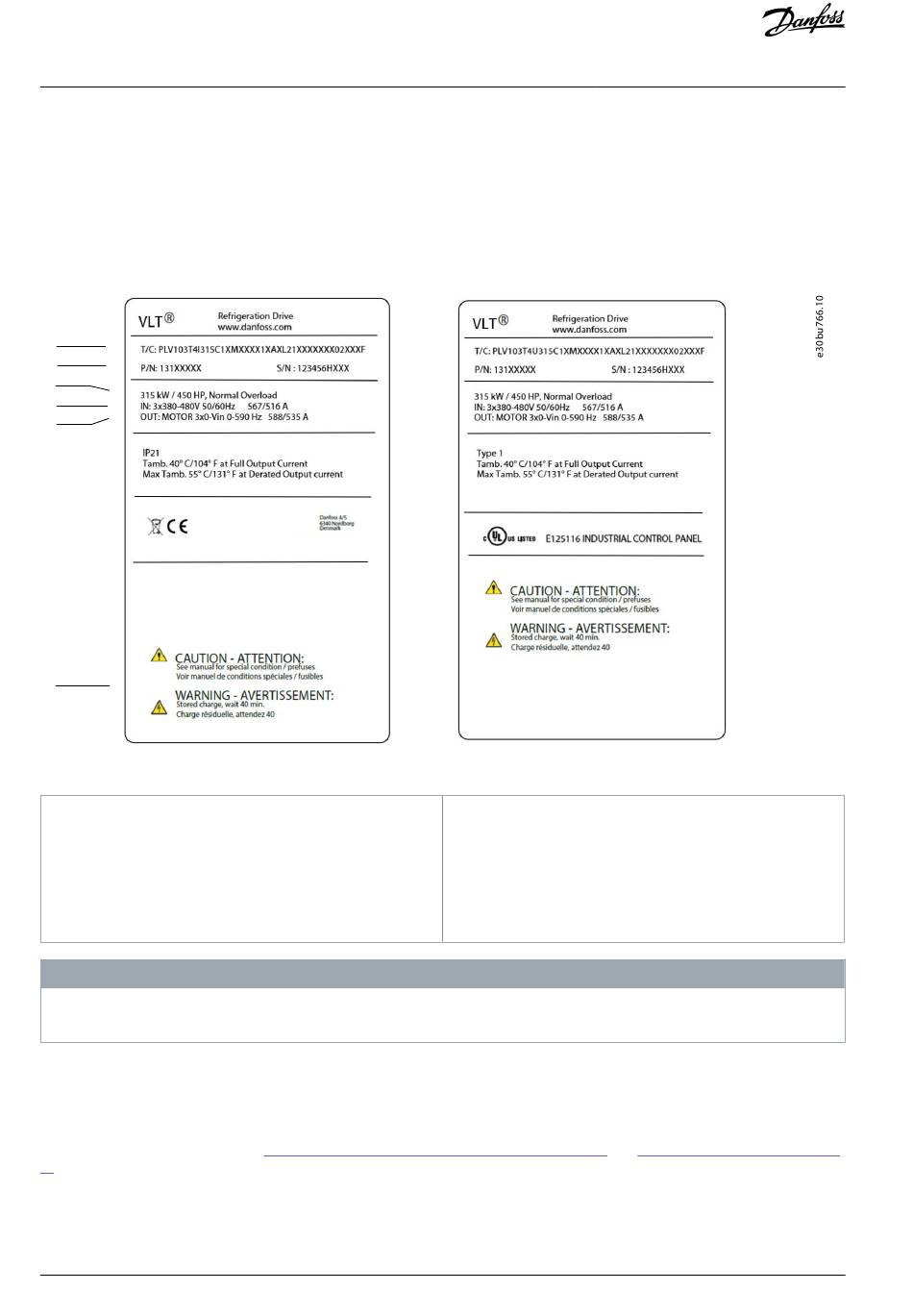

Illustration 12: Example of a Product Nameplate for E6h Enclosure (IEC Version on Left, UL Version on Right)
1 Type code
2 Part number and serial number
3 Power rating
WARRANTY
Removing the nameplate from the drive results in loss of warranty.

4.2 Split Shipment

Depending on what options are ordered with an enclosed drive, the drive can consist of 5 cabinets and measure 3400 mm (134 in)
in width, which can be difficult to transport and handle. In cases where an enclosed drive exceeds 1800 mm (71 in) in width, the
cabinets are separated and shipped in multiple boxes. All necessary fasteners needed for reassembly are provided in the delivery. To
reassemble a split shipment, refer to
es.
34 | Danfoss A/S © 2020.09
N O T I C E
4.10 Combining Multiple Cabinets from a Split Shipment
4 Input voltage, frequency, and current (at low/high
voltages)
5 Output voltage, frequency, and current (at low/high
voltages)
6 Discharge time
and
AQ357954340588en-000201 / 130R0881
Mechanical Installation
5.6.1 Connecting Wiring Harness-
