VLT® Refrigeration Drive FC 103
Operating Guide
1
2
-XDL.1
3
4
-XD4.1

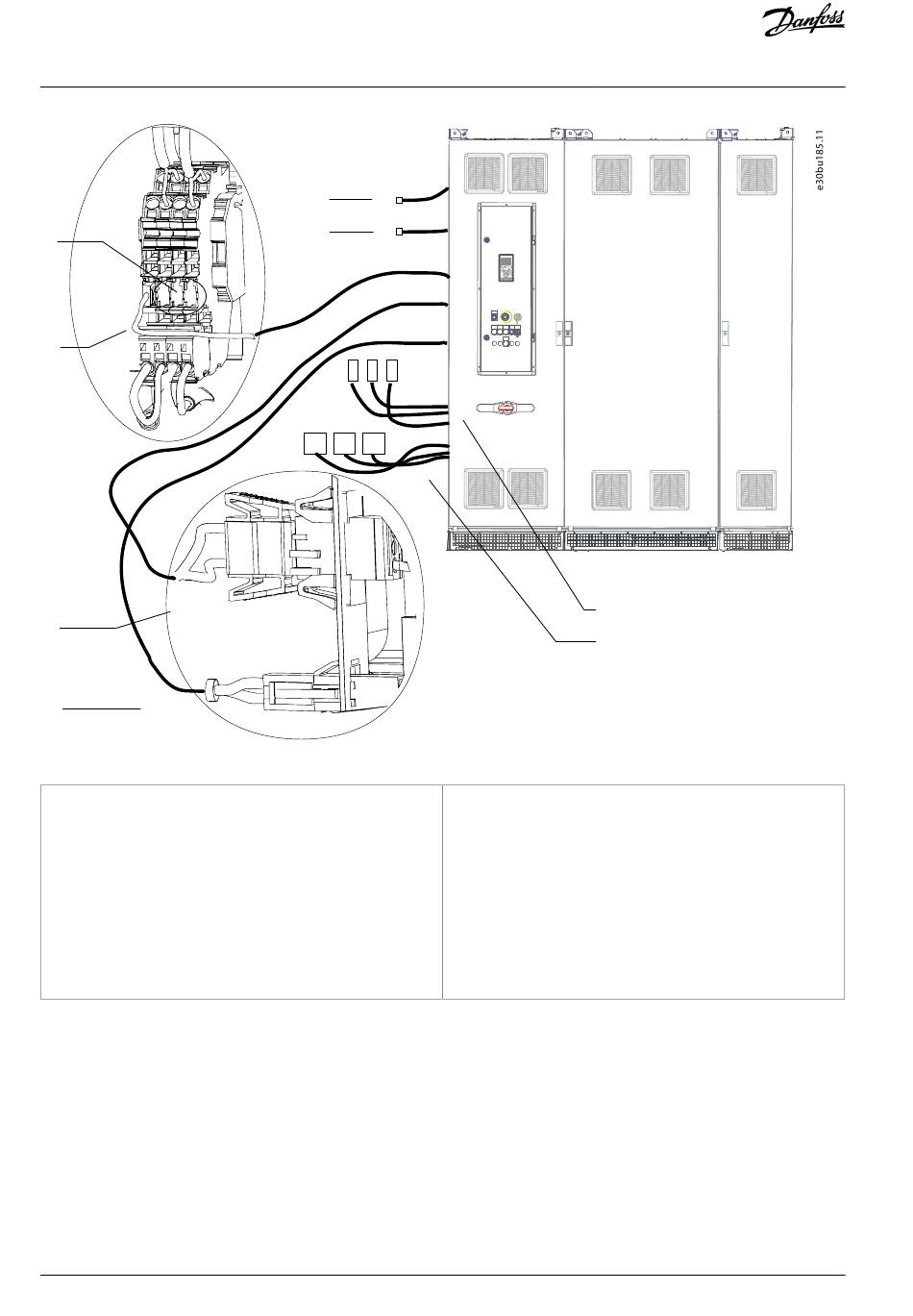

Illustration 37: Split Shipment Electrical Connections (Input Power Options Cabinet + E6h Drive Cabinet + Top Exit Cabinet)
1 Additional terminal connections
2 Thermal protection wiring harness to input filter
cabinet
3 DC-link harness to fan supply in the input filter cabi-
net
4 Cabinet heater supply harness to input filter cabinet
66 | Danfoss A/S © 2020.09
5
-XD4.3
6
-XD4.4
-XD11.3
R S T
L1R
L2S L3T
7
8
5 PHF contactor 1 supply harness to input filter cabi-
net (only with PHF option)
6 PHF contactor 2 supply harness to input filter cabi-
net (only with PHF option)
7 Mains cables (R/S/T) to input terminals (R/S/T) in the
input filter cabinet
8 Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input filter cabinet
AQ357954340588en-000201 / 130R0881
Electrical Installation
