8.1.6 Wiring Configuration: Start/Stop

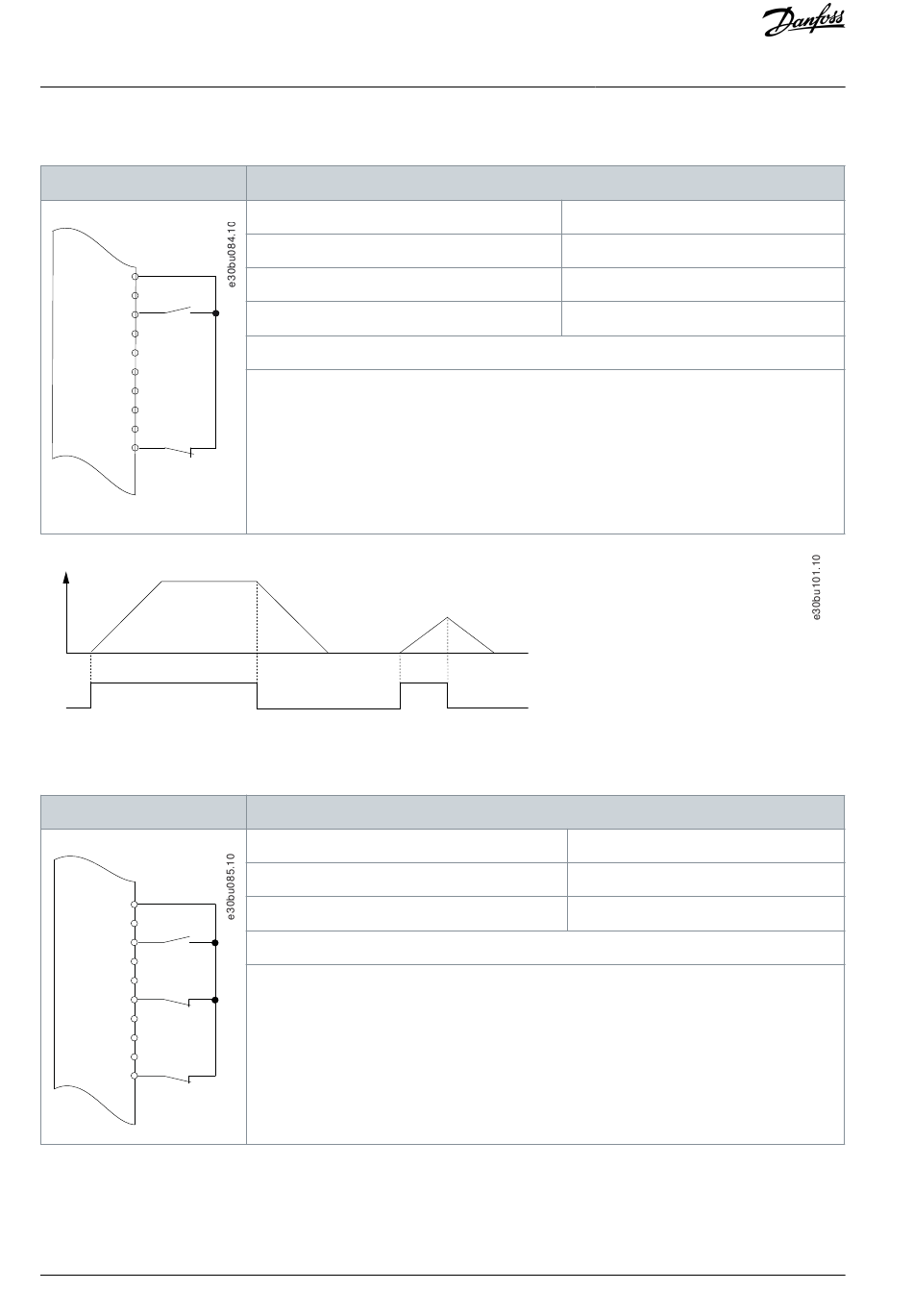

Table 82: Wiring Configuration for Start/Stop Command with Safe Torque Off Option
+24 V XD2.10
+24 V XD2.11
D IN XD2.12
D IN XD2.13
XD2.18
COM
D IN XD2.14
D IN XD2.15
D IN XD2.16
D IN XD2.17
D IN XD2.19
Speed
Start/Stop (XD2.12)
Illustration 59: Wiring Configuration for Start/Stop Command with Safe Torque Off
Table 83: Wiring Configuration for Pulse Start/Stop
+24 V XD2.10
+24 V XD2.11
D IN XD2.12
D IN XD2.13
COM XD2.18
D IN XD2.14
D IN XD2.15
D IN XD2.16
D IN XD2.17
D IN XD2.19
110 | Danfoss A/S © 2020.09
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-19 Terminal 37 Safe Stop
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set to [0] No operation, a jumper wire to terminal
XD2.14 is not needed.
D IN 37 is an option.
Terminal 18 in the parameter title corresponds to terminal XD2.12 in the control compartment.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
Terminal 37 in the parameter title corresponds to terminal XD2.19 in the control compartment.
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal
XD2.14 is not needed.
D IN 37 is an option.
Terminal 18 in the parameter title corresponds to terminal XD2.12 in the control compartment.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
Wiring Configuration Examples
Setting
[Start]*
[0] No operation
[1] Safe Stop Alarm
Setting
[9] Latched Start
[6] Stop Inverse
