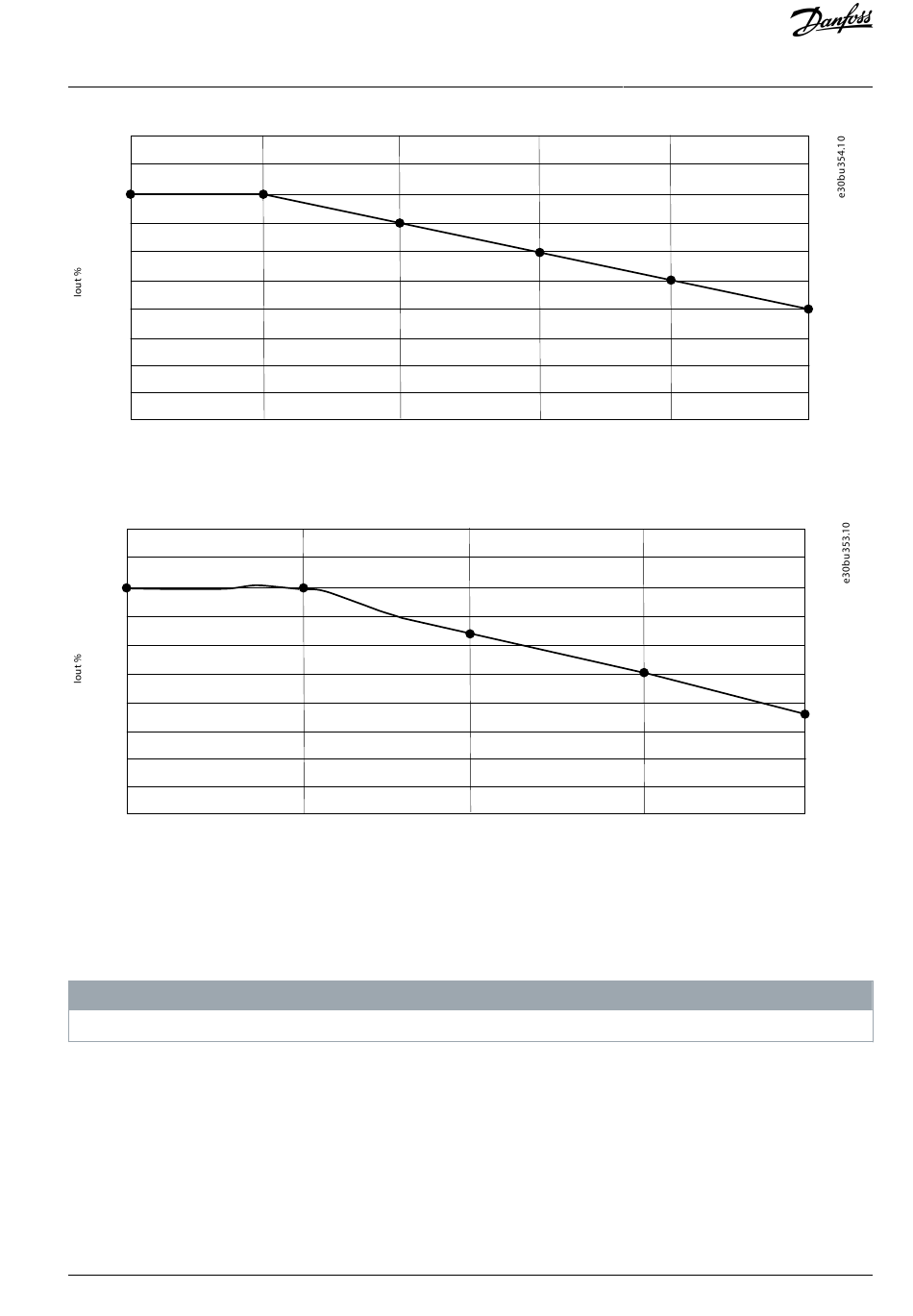

Illustration 70: Derating for Output Frequency While Using a Sine-wave Filter
110
105
100
95
90
85
80
75
70
65
60
40 (104)
Illustration 71: Derating for Ambient Temperature While Using a Sine-wave Filter

10.8 Fuses, Circuit Breakers, and Switches

Fuses and circuit breakers ensure that possible damage to the drive is limited to inside the unit. Danfoss recommends fuses on the
supply side as protection. For further information, see Application Note Fuses and Circuit Breakers.
Use of fuses on the supply side is mandatory for IEC 60364 (CE) and NEC 2009 (UL) compliant installations.
Danfoss provides the following mains options for the enclosed drive:
• Panel fuses
• Fusible disconnect
• Non-fusible disconnect
