Final Drives - Checking The Oil Level - Manitowoc GROVE GMK4090 Maintenance Manual

7.9.4
Spare parts
and tools
Prerequisites
Checking the
oil level
Maintenance manual
GMK4090

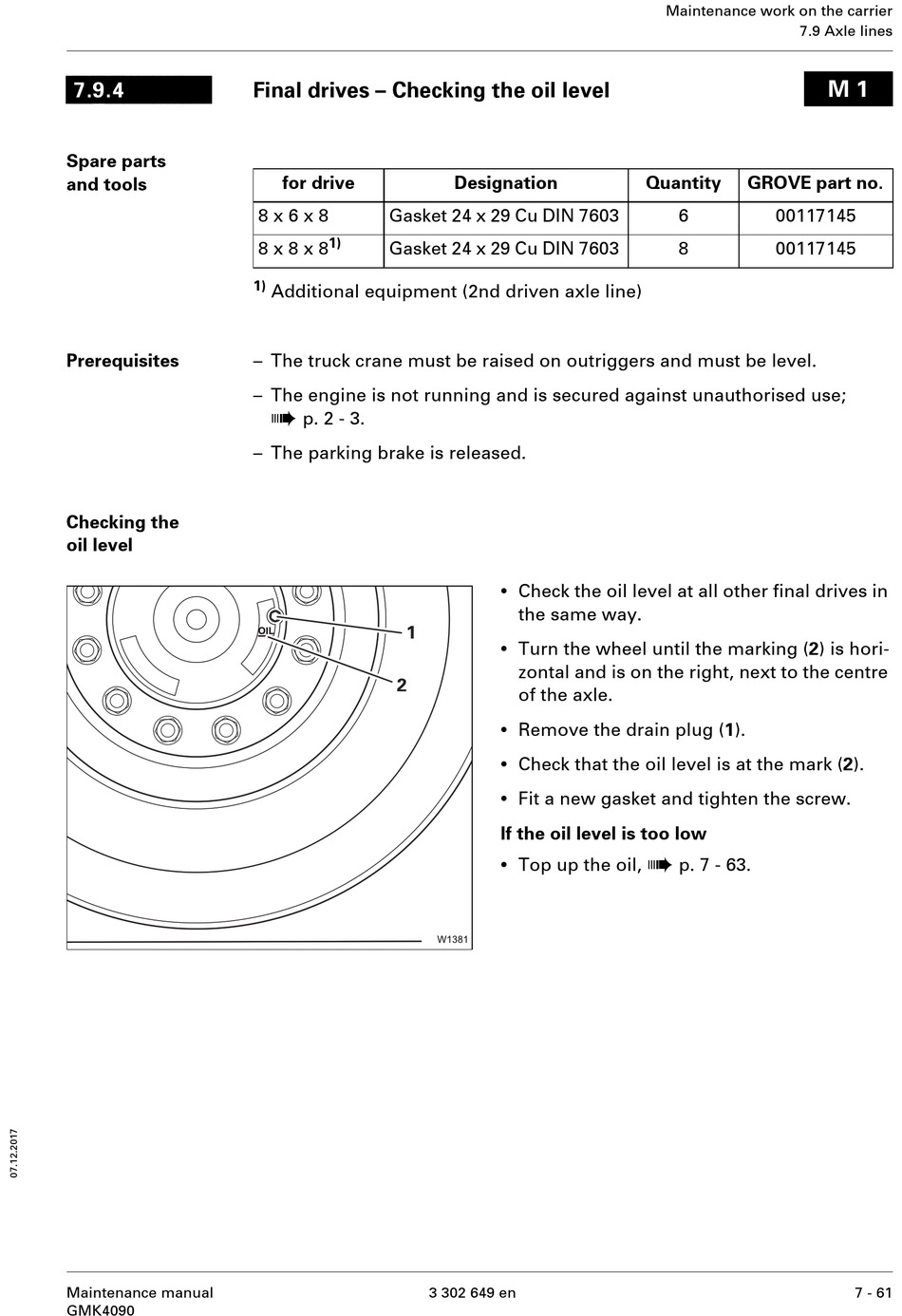

Final drives – Checking the oil level
for drive
8 x 6 x 8 Gasket 24 x 29 Cu DIN 7603
1)
8 x 8 x 8 Gasket 24 x 29 Cu DIN 7603
1)
Additional equipment (2nd driven axle line)
– The truck crane must be raised on outriggers and must be level.
– The engine is not running and is secured against unauthorised use;
à
p. 2 - 3.
– The parking brake is released.
Designation
•
Check the oil level at all other final drives in
the same way.
•
Turn the wheel until the marking (2) is hori-
zontal and is on the right, next to the centre
of the axle.
•
Remove the drain plug (1).
•
Check that the oil level is at the mark (2).
•
Fit a new gasket and tighten the screw.
If the oil level is too low
•
Top up the oil,
3 302 649 en
Maintenance work on the carrier
7.9 Axle lines
Quantity GROVE part no.
6 00117145
8 00117145
à
p. 7 - 63.
M 1
7 - 61
