Maintenance work on the carrier

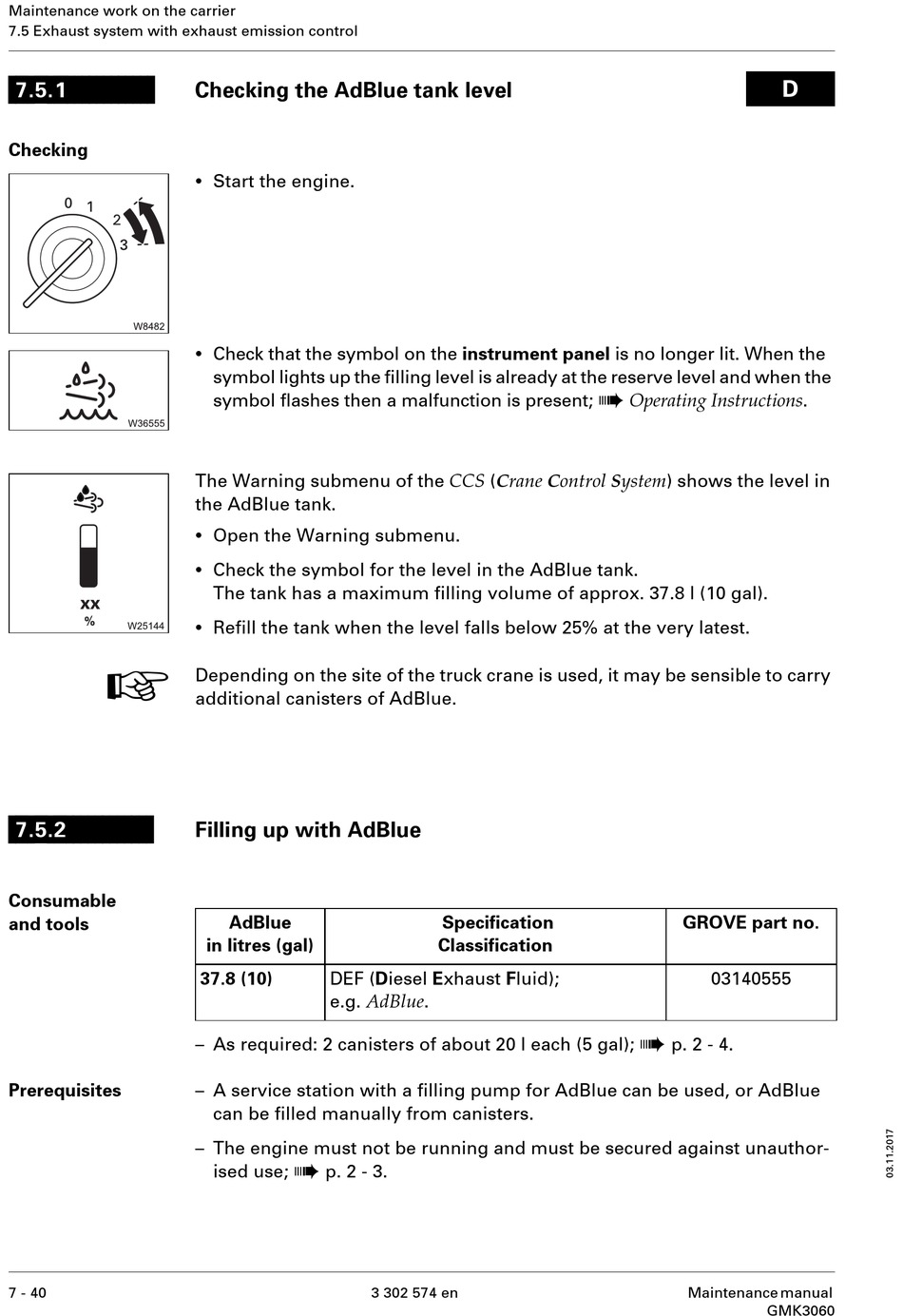

7.5 Exhaust system with exhaust emission control
7.5.1
Checking
H
7.5.2
Consumable
and tools
Prerequisites
7 - 40

Checking the AdBlue tank level

•
Start the engine.
•
Check that the symbol on the instrument panel is no longer lit. When the
symbol lights up the filling level is already at the reserve level and when the
symbol flashes then a malfunction is present;
The Warning submenu of the CCS ( Crane Control System ) shows the level in
the AdBlue tank.
•
Open the Warning submenu.
•
Check the symbol for the level in the AdBlue tank.
The tank has a maximum filling volume of approx. 37.8 l (10 gal).
•
Refill the tank when the level falls below 25% at the very latest.
Depending on the site of the truck crane is used, it may be sensible to carry
additional canisters of AdBlue.

Filling up with AdBlue

AdBlue
in litres (gal)
37.8 (10) DEF (Diesel Exhaust Fluid);
e.g. AdBlue .
– As required: 2 canisters of about 20 l each (5 gal);
– A service station with a filling pump for AdBlue can be used, or AdBlue
can be filled manually from canisters.
– The engine must not be running and must be secured against unauthor-
à
ised use; p. 2 - 3.
Specification
Classification
3 302 574 en
à
Operating Instructions .
GROVE part no.
03140555
à
p. 2 - 4.
Maintenance manual
GMK3060
D
