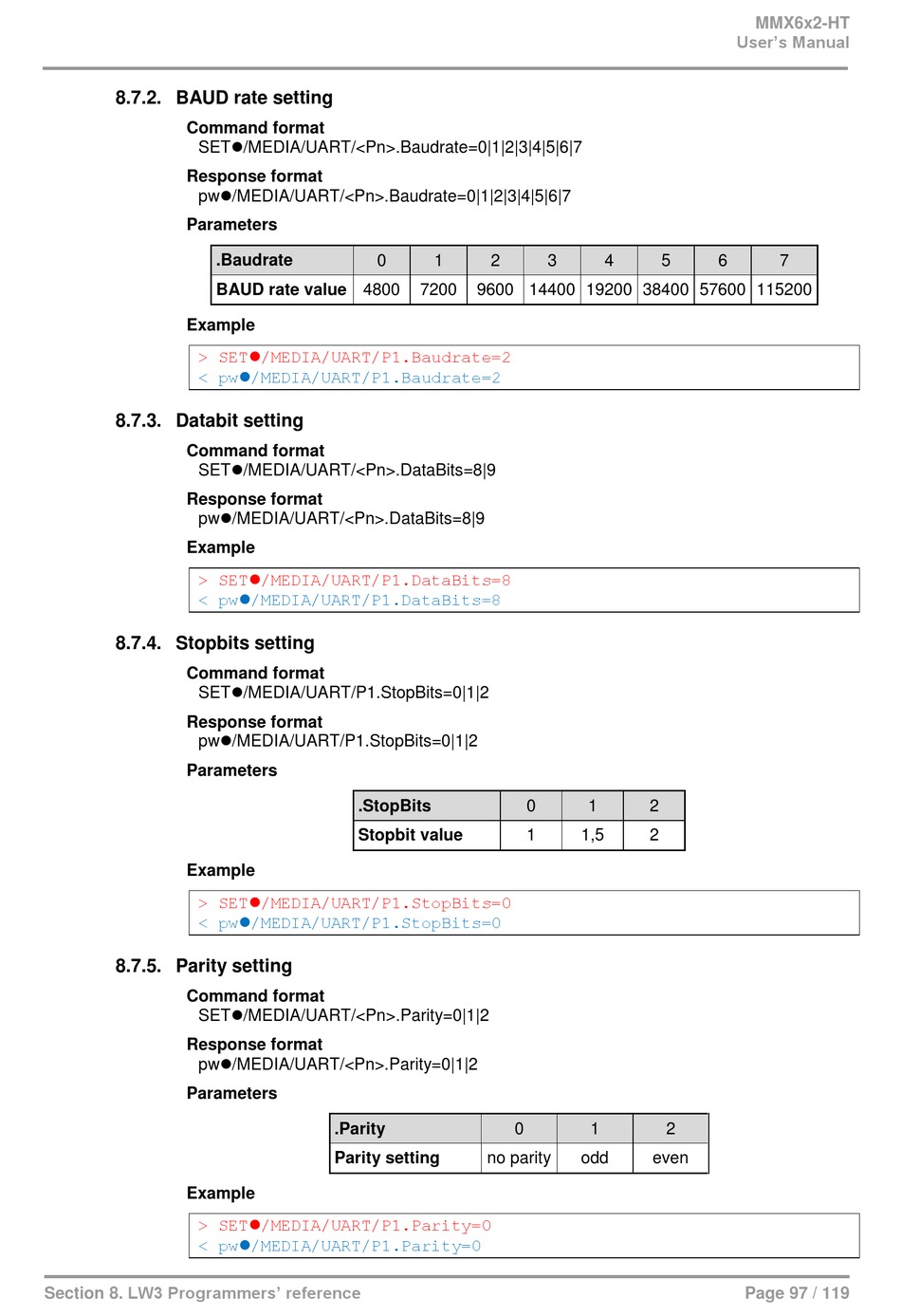

8.7.2. BAUD rate setting

Command format
SET/MEDIA/UART/<Pn>.Baudrate=0|1|2|3|4|5|6|7
Response format
pw/MEDIA/UART/<Pn>.Baudrate=0|1|2|3|4|5|6|7
Parameters
Example
> SET/MEDIA/UART/P1.Baudrate=2
< pw/MEDIA/UART/P1.Baudrate=2

8.7.3. Databit setting

Command format
SET/MEDIA/UART/<Pn>.DataBits=8|9
Response format
pw/MEDIA/UART/<Pn>.DataBits=8|9
Example
> SET/MEDIA/UART/P1.DataBits=8
< pw/MEDIA/UART/P1.DataBits=8

8.7.4. Stopbits setting

Command format
SET/MEDIA/UART/P1.StopBits=0|1|2
Response format
pw/MEDIA/UART/P1.StopBits=0|1|2
Parameters
Example
> SET/MEDIA/UART/P1.StopBits=0
< pw/MEDIA/UART/P1.StopBits=0

8.7.5. Parity setting

Command format
SET/MEDIA/UART/<Pn>.Parity=0|1|2
Response format
pw/MEDIA/UART/<Pn>.Parity=0|1|2
Parameters
Example
> SET/MEDIA/UART/P1.Parity=0
< pw/MEDIA/UART/P1.Parity=0
Section 8. LW3 Programmers' reference
.Baudrate
0
BAUD rate value 4800
.StopBits
Stopbit value
.Parity
Parity setting
1 2 3
7200 9600 14400 19200 38400 57600 115200
0 1
1 1,5
0
no parity odd
MMX6x2-HT
User's Manual
4 5 6
2
2
1 2
even
Page 97 / 119
