5.5.3. HDMI Video Output

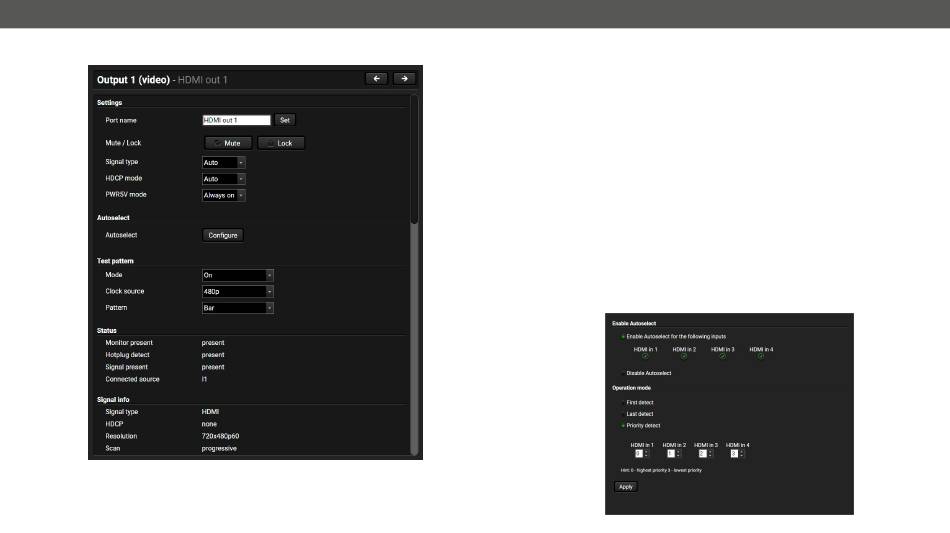

Port properties window of the HDMI video output
MMX4x2 series – User's Manual
Available settings and tools:
Autoselect Settings
Pay attention to the following settings for the proper operation of the Autoselect function:
(See more details about the feature in
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
Mute/unmute the port;
▪
Lock/unlock the port;
▪
Autoselect settings (see below)
▪
Signal type: Auto / DVI / HDMI - The outgoing signal format can be selected from a drop-down menu;
▪
HDCP mode: Auto / Always - The transmitter forces the source to send the signal without encryption if
▪
the content allows when Auto mode is selected;
▪ Connected source
Power 5V mode: Auto / Always on / Always off - The setting lets the source and the sink devices be
▪
connected – independently from the transmitted signal;
No sync screen: configuration settings of the test pattern. See more details in the
▪
Pattern) section.
Frame detector diagnostic tool (see the Frame Detector
▪
Send and receive Consumer Electronics Control (CEC) commands by the
▪
Reloading factory default settings for the selected port.
▪
#autoselect
– Be sure that no input is set to the same priority number;
– Be sure that all priority values are filled in (no empty space);
– Be sure that all inputs are enabled with the green tick on the right side;
– Always click on the Set priorities button after the changes to launch the new settings.
– Set the Autoselect settings to Enabled;
The Autoselect Feature
44
#signaltype #hdcp
No Sync Screen (Test
section);
CEC Tool,
section).
