Oracle ZFS ZS3 Series Customer Service Manual page 90

Servicing the ZS3-4 Controller
PCIe Card
2. 8Gb FC HBA
3. InfiniBand HCAs
4. 2-port 10Gb Ethernet NIC
5. 4-port 1Gb Ethernet NIC
6. 16Gb FC HBA
7. Remaining 8Gb FC HBAs
ZS3-4 Connectors

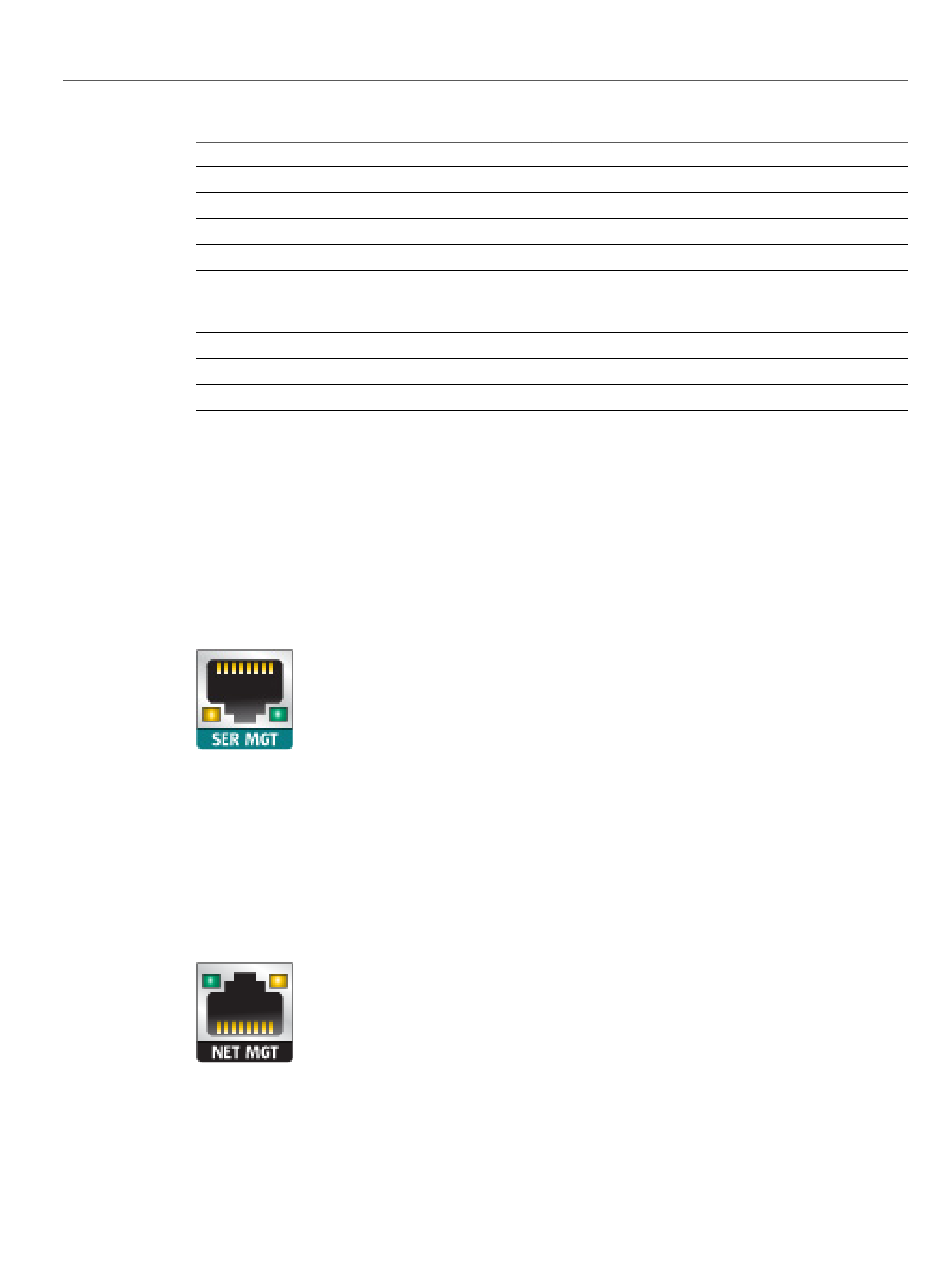

The serial management connector (SER MGT) is an RJ-45 connector and provides a terminal
connection to the SP console.
FIGURE 22
The network management connector (NET MGT) is an RJ-45 connector and provides a LAN
interface to the SP console.
FIGURE 23
90 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
ZS3-4 Controller Serial Management Port
ZS3-4 Controller Network Management Port
Slot Order
Slot 9
Additional FC HBAs are installed last
Slot 3, 6, 4, 5, 2, 7
Slot 3, 6, 4, 5, 2, 7, 9
Note: If you are adding a 2-port 10Gb Ethernet Optical
NIC and 2-port 10Gb Ethernet Copper NIC, the 10Gb
Ethernet Optical NIC has slot priority.
Slot 3, 6, 4, 5, 2, 7, 9
Slot 3, 6, 4, 5, 2, 7, 9
Slot 3, 6, 4, 5, 2, 7 (slot 9, see step 2)
