Servicing the 7x20 Controller

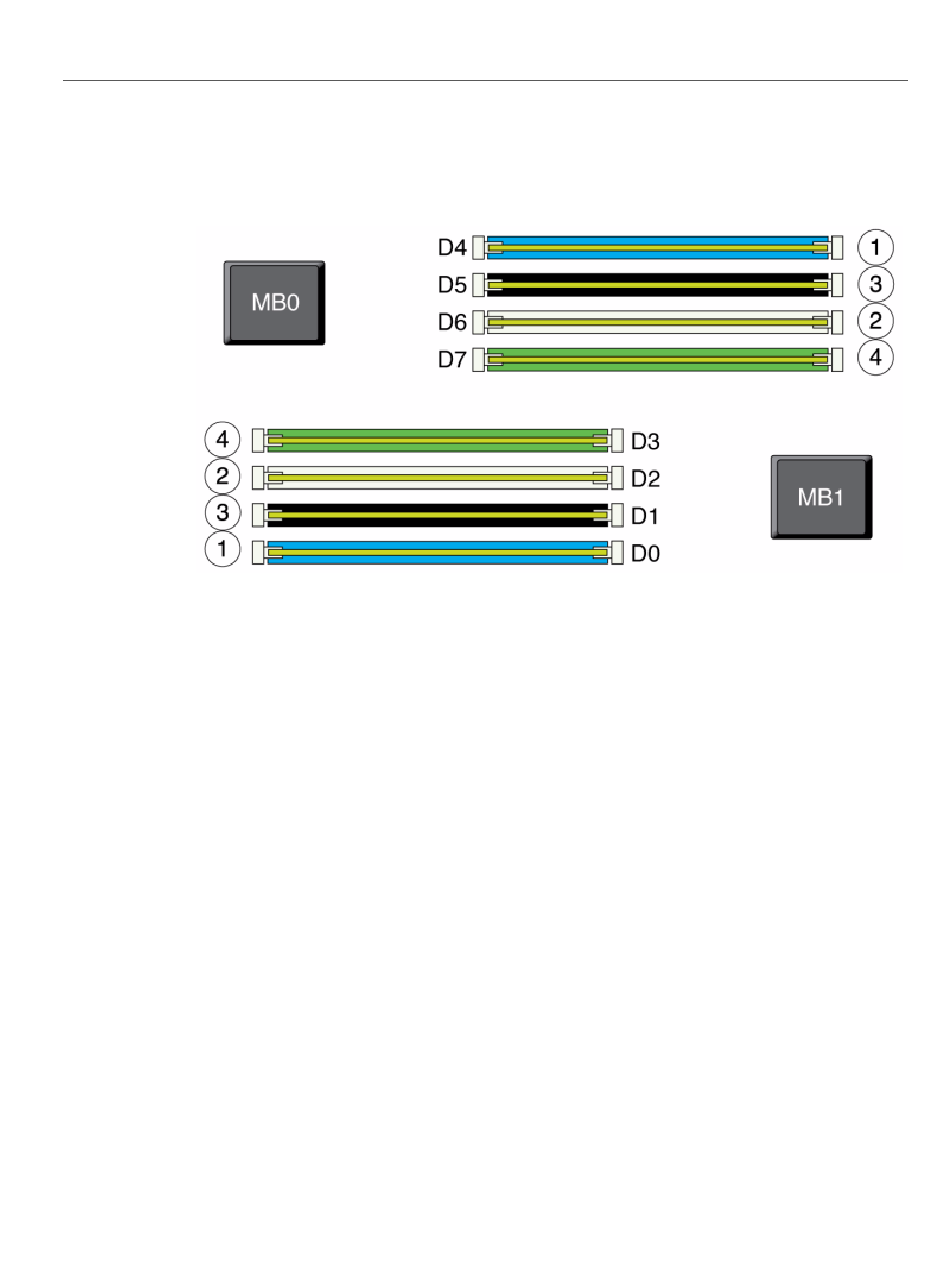

FIGURE 41
DIMM names in appliance logs and the Maintenance > Hardware view are displayed with the
full name, such as /SYS/MB/P0/D7.
7420 Fan Modules
The Fan Modules and Fan Module LEDs of the storage controller are shown in the following
figure. The following LEDs are lit when a fan module fault is detected:
164 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
7420 Controller CPU and Memory
