Servicing the ZS3-4 Controller
FIGURE 14
Figure Legend
Ready to remove (blue)
1

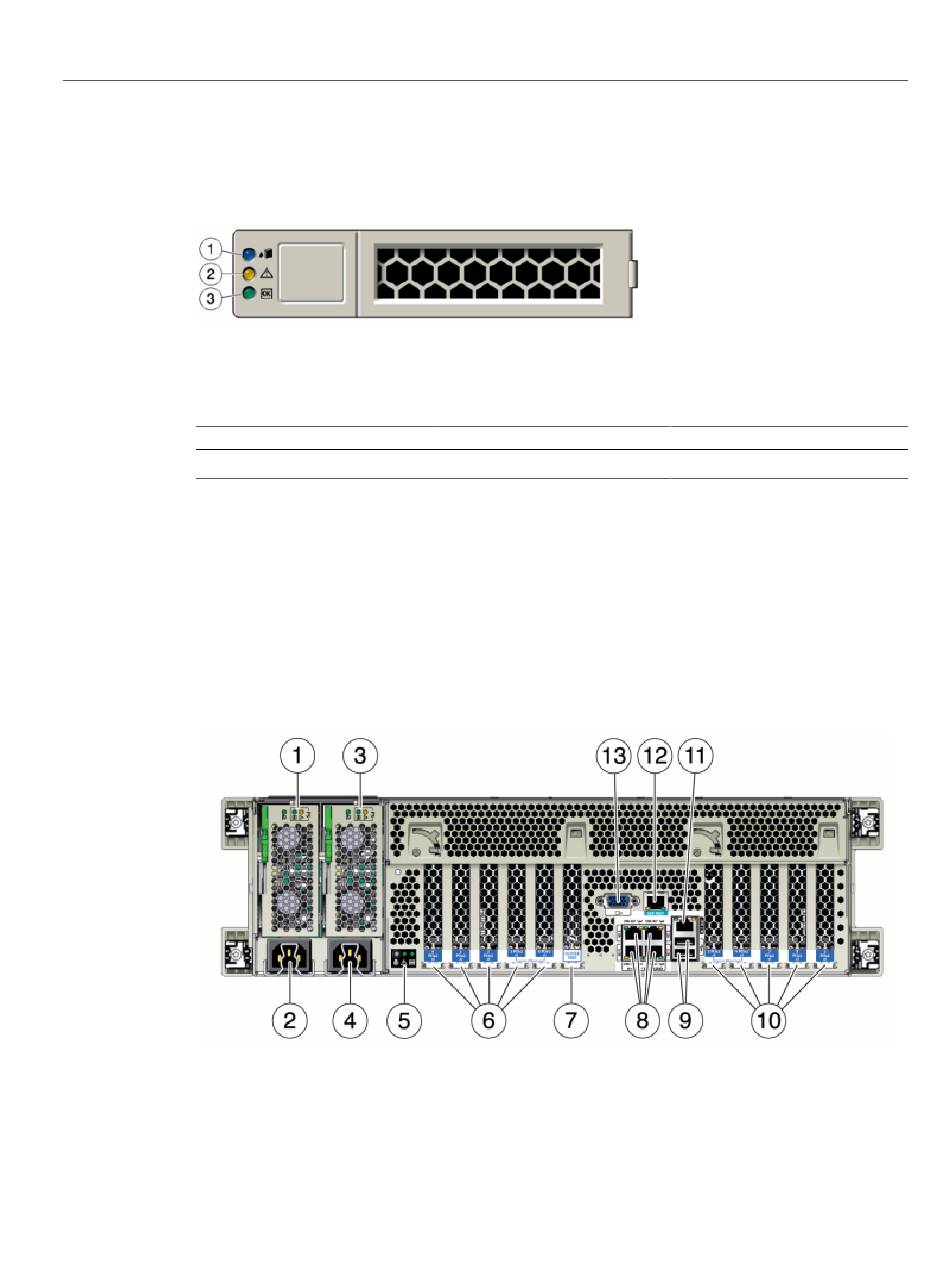

ZS3-4 Rear Panel
The following graphic shows the rear panel. Base configuration HBAs are not depicted in this
illustration.
FIGURE 15
78 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
ZS3-4 Controller System Drive
Service action required (amber)
2
ZS3-4 Controller Rear Panel
OK/Activity (green)
3
