Servicing the 7x20 Controller
TABLE 33
PCIe Card
1. SAS-2 external HBA
2. 8Gb FC HBA
3. InfiniBand HCAs
4. 10Gb Ethernet
5. Quad 1Gb Ethernet
6. Remaining 8Gb FC HBAs
7420 Connectors

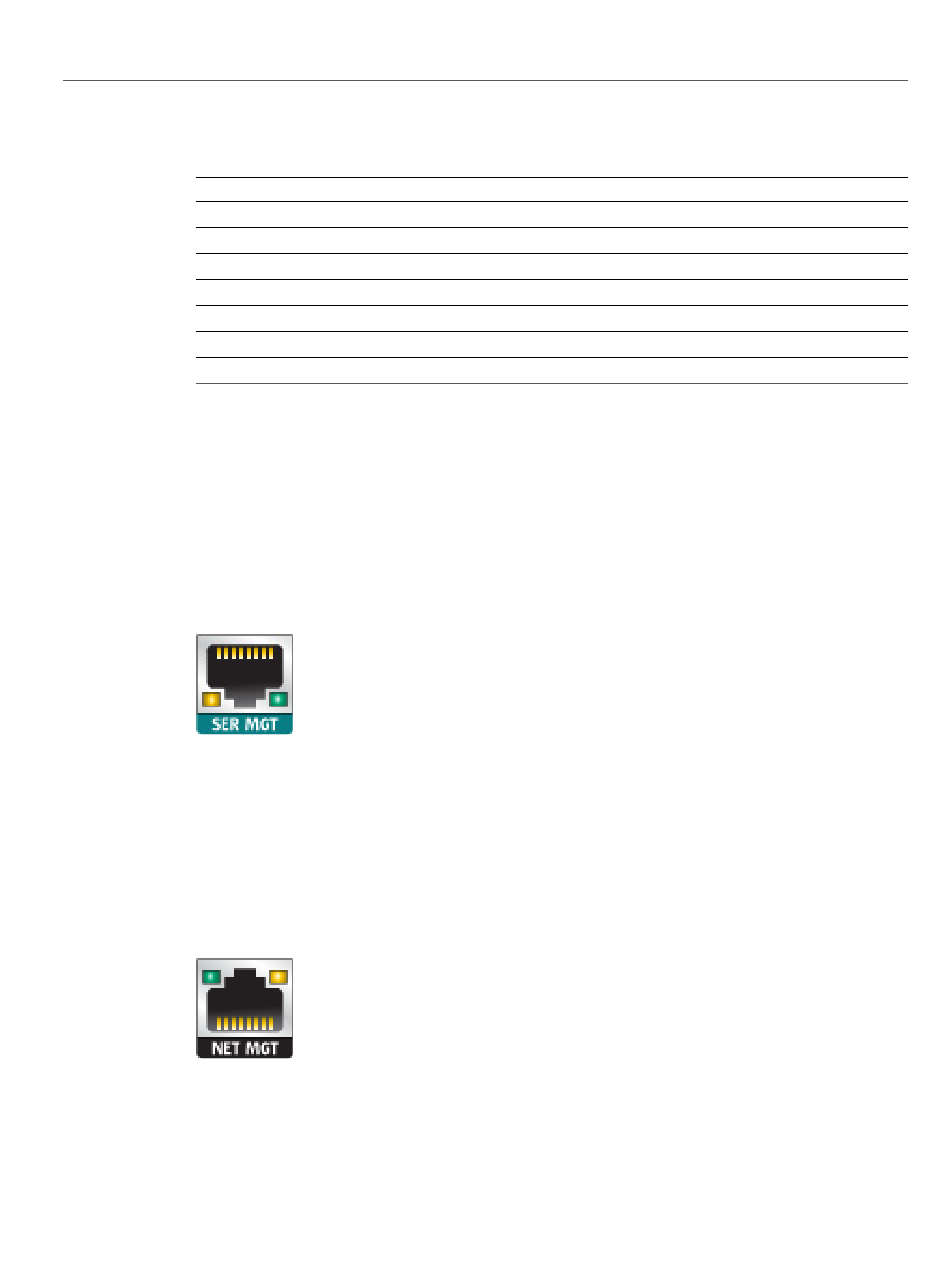

The serial management connector (SER MGT) is an RJ-45 connector and provides a terminal
connection to the SP console.
FIGURE 44
The network management connector (NET MGT) is an RJ-45 connector and provides a LAN
interface to the SP console.
FIGURE 45
170 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
7420 Controller Optional PCIe Cards and Slot Order
7420 Controller Serial Management Port
7420 Controller Network Management Port
Slot Order
Slot 2, 7, 3, 6
Slot 9
Additional FC HBAs are installed last
Slot 7, 2, 6, 3, 5, 4
Slot 7, 2, 6, 3, 5, 4, 0 (not available for 7420 M2), 9
Slot 7, 2, 6, 3, 5, 4, 0 (not available for 7420 M2), 9
Slot 7, 2, 6, 3, 5, 4, 0 (not available for 7420 M2)
